QUICK SETUP GUIDE

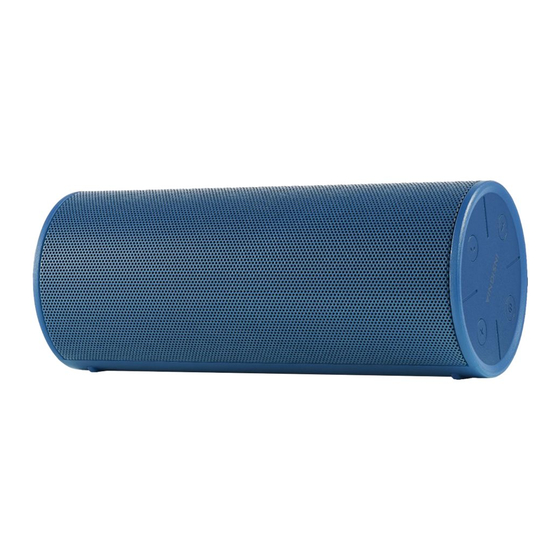

Portable
Bluetooth Speaker
NS-SPBTWAVE2 / NS-SPBTWAVE2-XX
PACKAGE CONTENTS
• Bluetooth speaker • USB cable • Quick Setup Guide
FEATURES
• Wirelessly stream from any Bluetooth device
• Rechargeable battery lasts up to 12 hours
• Speakerphone for hands-free calling
• Rubber feet support a horizontal or vertical orientation
Power button
Front view Back view
Volume +/-
buttons
Call button
Rubber
feet
LED indicator
Before using your new product, please read these instructions to prevent any damage.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this speaker near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this speaker during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualified service personnel. Servicing is required
when the speaker has been damaged in any way, such as if the speaker
is dropped, exposed to liquids, or does not operate normally.
• Never expose the product to fire as this could result in personal injury.
• Do not store the product in an extremely cold or warm environment.
• Never dismantle the product.
• Never let children play with the product.
• Do not expose the product to dampness or moisture.
• The product should not be exposed to dripping or splashing.
Note: The battery in this speaker cannot be replaced by the user.
AUX IN
jack
Reset hole
Micro
USB port
CHARGING YOUR SPEAKER
1 Connect the small end of the charging cable to the micro USB port on
the back of your speaker.
2 Connect the other end to a USB port on your computer or wall adapter
(not included). The LED indicator is red while charging, then turns off
when the speaker is fully charged.
Note: The speaker beeps continually when the battery is low. About five minutes
later, the speaker turns off automatically.
CONNECTING AN AUDIO DEVICE
Bluetooth
1 Press and hold (power) to turn on your speaker. The LED indicator
blinks blue quickly and your speaker automatically enters pairing mode.
2 Make sure that your Bluetooth device is within 33 ft. (10 m) of your
speaker.
3 Turn on your Bluetooth device, turn on Bluetooth, then enter pairing
mode. For more information, see the documentation that came with
your Bluetooth device.
4 On your Bluetooth device, select NS-SPBTWAVE2. Your speaker pairs
with your Bluetooth device and the LED indicator lights solid blue.
5 To disconnect, un-pair your Bluetooth device from your speaker.
OR
Press and hold (call) for three seconds on your speaker. Your
Bluetooth devices loses connection automatically.
Audio cable
• Connect a 3.5 mm audio cable (not included) from your speaker's
AUX jack to your audio device's headphone/audio out jack.
The LED indicator blinks blue slowly while connected to an audio
cable.
RECONNECTING TO A PAIRED DEVICE
When your speaker is not paired to a device, the LED blinks blue.
Your speaker loses the
Bluetooth connection if you... To reconnect...
Turn off your speaker. Turn on your speaker. Your speaker searches
for the last connected Bluetooth device and
reconnects.
Move the Bluetooth device out Make sure that your Bluetooth device is
of range. within 33 feet of your speaker.
Turn off your Bluetooth device. Turn on your Bluetooth device, then make
sure that Bluetooth is on.
Turn off Bluetooth on your Turn on Bluetooth on your Bluetooth device.
Bluetooth device.
Connect your Bluetooth device Disconnect your Bluetooth device from the
other Bluetooth device, then set your device
to another Bluetooth device.
to pairing mode. Select NS-SPBTWAVE2 on
your Bluetooth device.
Note: The Bluetooth range (33 ft./10 m) may be reduced if the wireless signal
has to pass through walls or other obstructions.
