Congratulations on your purchase of a high-quality Insignia product. Your 2-Way Bookshelf Speakers are designed for reliable and trouble-free performance.
PACKAGE CONTENTS CONNECTING YOUR SPEAKERS
• Speakers (2)
• Rubber feet (8)
1 Loosen all speaker and amplifier terminals.
2 Strip approximately 1/2" of insulation from the ends of your speaker wire
3 Connect the red (+) speaker terminals to the red (+) amplifier terminals
• Rubber feet alignment tool
4 Connect the black (-) speaker terminals to the black (-) amplifier terminals
See the documentation that came with your amplifier or home theater
system for more information on connecting the cables.
• Quick Setup Guide
Note: For best performance,
speaker wires must be
connected correctly. All
two-conductor wire is marked
in some way to help with this.
One side will be marked with a
colored stripe, raised rib, or
different-color conductor. Use
the marked side for the "red"
connections. We recommend
using 18-gauge or heavier
speaker wire.
Before using your new product, please read
these instructions to prevent any damage.
V2
FINAL
FOR PRINT
Back of speaker
(not provided).
with your speaker wire, then tighten the terminal connectors.
with your speaker wire, then tighten the terminal connectors.
Amplifier/home theater system
Flat size (W×H): 297 × 210 mm.
Final folded size: 99 × 210 mm.
Quick Setup Guide

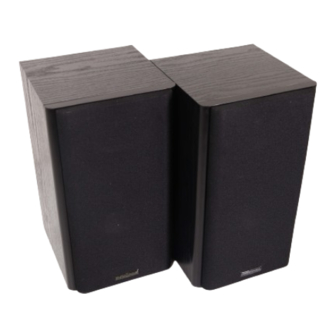

5-1/4" 2-Way Bookshelf Speakers (Pair)
POSITIONING YOUR SPEAKERS
Optional: Attach the adhesive-backed cushioned feet to
the base of the speakers. Use the rubber feet alignment
tool to help with alignment.
NS-SP213
LEFT RIG
Back of
amplifier
Note: Make sure to
connect the + terminal on
the speaker to the
+ terminal on the amplifier
and connect the - terminal
on the speaker to the
- terminal on the
amplifier.
I
NS-SP213
NS-SP213
