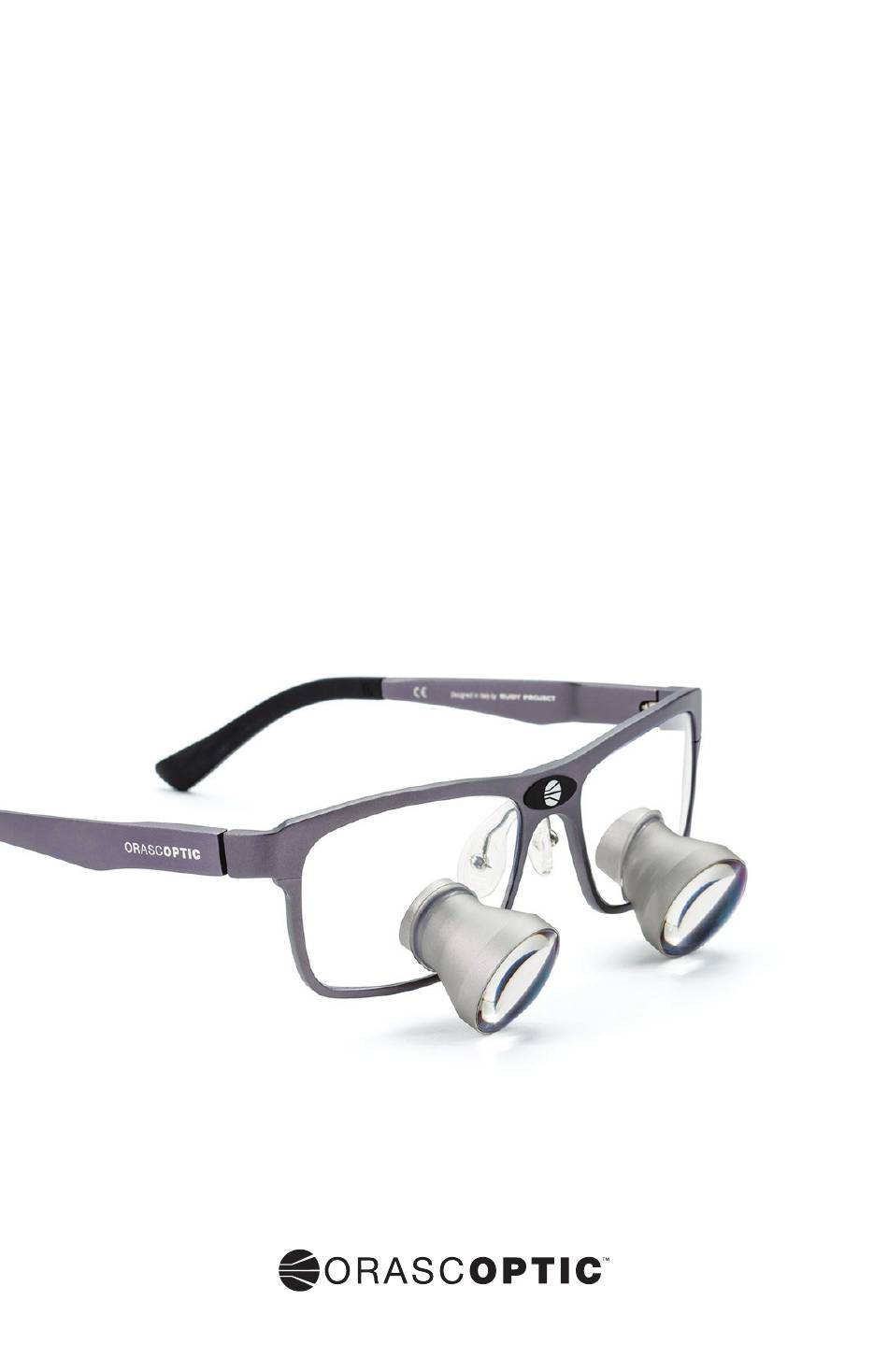

- Page 1 LOUPES Instructions for Use...
- Page 2 Orascoptic Loupes Getting Started with Your New Orascoptic Loupe Congratulations on the purchase of your new Orascoptic loupe! It is common for new users of magnification to experience some initial disorientation. This may also occur when increasing from a lower magnification power to higher powered loupe. In such cases, a two to three week acclimation period is recommended.
- Page 3 Cleaning and Refurbishing Service Orascoptic offers a loupe cleaning and refurbishment service that is recommended every two years. If your loupe needs cleaning or refurbishing, call one of our Customer Care Specialists to arrange for this service. See the back of this manual for contact information.
- Page 4 If you need assistance, call one of our Technical Support Specialists. See the back of this manual for contact information. Videos featuring helpful tips on how to adjust and clean your loupe are available at Orascoptic.com/support/videos. Level the Frame Ensuring the frame sits level on your face is crucial. Before any other fine-tuning adjustments can be made, your frame must sit level on your face (Figure 1).
- Page 5 INSTRUCTIONS FOR USE Orascoptic Loupes Adjust the Nose Pad The nose pad on most frames is adjustable. Adjusting the nose pad will change how the frame sits on your face (Figure 3). 1. To lower the frame on your face, spread the nose pad apart.

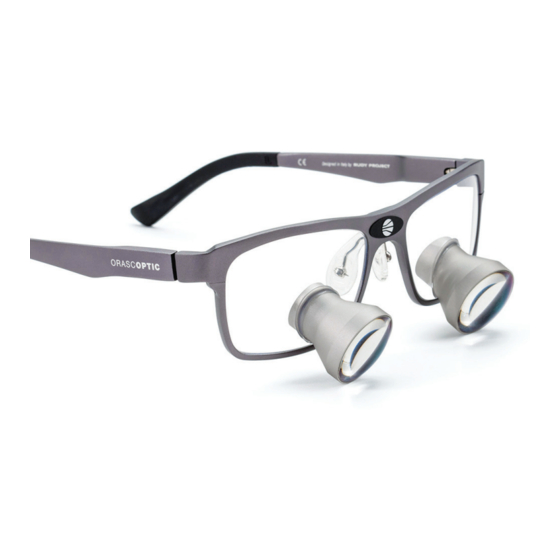

- Page 6 EyeZoom and EyeZoom Mini EyeZoom telescopes can transition magnification levels between 3x, 4x, and 5x power. EyeZoom Mini telescopes can transition magnification levels between 2.5x and 3.5x power. 1. To change the magnification, grasp the black ridged portion of each telescope and turn it so the arrow aligns with your preferred magnification level (Figure 7).
- Page 7 Technical Support/Customer Service: 800.369.3698 Outside the U.S. or Canada - Call Your Local Distributor © 2018 Metrex Research, LLC dba Orascoptic Patents Pending The trademarks noted in these instructions are owned by Metrex Research LLC and/or Kerr Corporation, registered in the U.S. and other countries.
