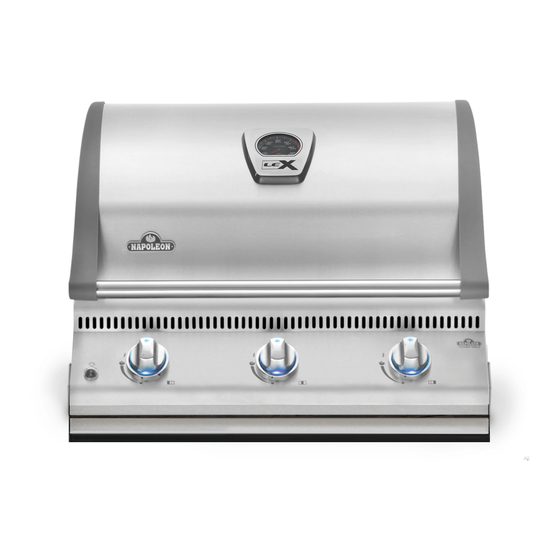

Napoleon BILEX485 Manual

Napoleon BILEX485 Manual

Hide thumbs Also See for BILEX485:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
WARNING!
CABINET FRAME, CABINET AND COUNTER TOP MUST BE MADE FROM NON-COMBUSTIBLE MATERIAL.
DANGER
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Notice to Installer: Leave these instructions with the grill owner for future reference.
N415-0271-AU JAN 24.18
Do not try to light this appliance without
reading the "LIGHTING" instructions section of
this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. A ULPG cylinder
not connected for use must not be stored in
the vicinity of this or any other appliance.
If the information in these instructions is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury or death.
Wolf Steel Ltd.
214 Bayview Drive,
Barrie, Ontario, CANADA L4N 4Y8
grills@napoleonproducts.com
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
DO NOT DISCARD
BILEX485
WARNING
SAI Global
SAI-400025
AS/NZS 5263.0
AS/NZS 5263.1.7
www.napoleongrills.com
1

Advertisement

Table of Contents
loading

Related Manuals for Napoleon BILEX485

Summary of Contents for Napoleon BILEX485

  • Page 1 APPLY SERIAL NUMBER LABEL FROM CARTON Serial No. XXXXXX000000 MODEL NO. DO NOT DISCARD BILEX485 WARNING! CABINET FRAME, CABINET AND COUNTER TOP MUST BE MADE FROM NON-COMBUSTIBLE MATERIAL. WARNING DANGER Do not try to light this appliance without IF YOU SMELL GAS: reading the “LIGHTING”...
  • Page 2 NAPOLEON. NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period: Aluminum castings / stainless steel base ...........

  • Page 3: Safe Operating Practices

    WARNING! Failure to follow these instructions could result in property damage, personal injury or death. Read and follow all warnings and instructions in this manual prior to operating grill. Safe Operating Practices • This gas grill must be assembled exactly according to the instructions in the manual. If the grill was store assembled, you must review the assembly instructions to confirm correct assembly and perform the required leak tests before operating the grill.
  • Page 4 Location Locating Your Outdoor Gas Grill It is important when selecting a location for your gas grill to ensure clearances to adjacent combustibles are met. This appliance is intended for installation on an outdoor patio or in your yard. ‘This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.’...

  • Page 5: General Information

    General Information This gas grill is certified for outdoor use and should be installed to conform to local codes. Check gas type and specifications located on the rating plate of the grill. Universal Liquefied Petroleum Gas Cylinder Specifications WARNING! If these instructions are not followed exactly, a fire causing death or serious injury may occur.
  • Page 6 BUILT IN UNIVERSAL LIQUEFIED PETROLEUM GAS HOOK-UP: The piping up to the gas grill is the responsibility of the installer and piping should be located as shown in the built-in instructions. A flexible metal connector is included to simplify the installation of the unit. Connect this flexible metal connector to the flare fitting with 3/8”...

  • Page 7: Leak Testing Instructions

    Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified gas installer. STOP If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.

  • Page 8: Lighting Instructions

    Lighting Instructions Lights Lighting Hole Left Burner Centre Burner Rear Burner Right Burner Off Position WARNING! Open lid. WARNING! Ensure all burner controls are in the off position. Turn on the gas supply valve. Main Burner Rear Burner Lighting Side Burner Lighting Lighting (Rotisserie Burner) (If equipped)

  • Page 9: Cooking Instructions

    For example, a 3 pound chicken on the rotisserie will be done in approximately 1½ hours on medium to high. See ‘Your all Season Grill’ cookbook by Napoleon for more detailed instructions.
  • Page 10 Any juices or oils that escape from the food drip onto the charcoal and vaporize into smoke giving the food its delicious grilled taste. The Napoleon infrared burner cooks in the same way. In each burner, 10,000 ports – each with its own tiny flame – cause the surface of the ceramic tile to glow red.
  • Page 11 This helps it to cook faster and more evenly. To add a trademark taste to your cooking, try adding mesquite-flavoured woodchips to your Napoleon woodchip smoker, optional accessory. Pork chops Medium 6 min. per side Trim off the excess fat before grilling.

  • Page 12: Cleaning Instructions

    Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner.

  • Page 13: Maintenance Instructions

    Maintenance Instructions We recommend this gas grill be thoroughly inspected and serviced annually by a qualified service person. At all times keep the gas grill area free from combustible materials, gasoline and other flammable vapors and liquids. Do not obstruct the flow of ventilation and combustion air. Keep the cylinder enclosure ventilation openings (located on the cart sides and at the front and back of the bottom shelf) free and clear from debris.
  • Page 14 If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer. Aluminum Castings: Clean castings periodically with warm soapy water. Aluminum will not rust, but high temperatures and weathering can cause oxidation to occur on aluminum surfaces.

  • Page 15: Troubleshooting

    Troubleshooting Problem Possible Causes Solution Low heat / Low flame For Universal Liquefied Ensure lighting procedure is followed carefully. when valve turned to Petroleum Gas - improper All gas grill valves must be in the off position high. lighting procedure. when the tank valve is turned on.
  • Page 16 Cracked ceramic tile. Allow burner to cool and inspect very closely for cracks. If any cracks are found, contact your authorized Napoleon dealer to order a replacement burner assembly. Leaking gasket Contact your authorized Napoleon dealer for surrounding the ceramic...

  • Page 17: Ordering Replacement Parts

    3. A concise description of the problem (‘broken’ is not sufficient). 4. Proof of purchase (photocopy of the invoice). In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts. Before contacting Napoleon dealer, please note that the following items are not covered by the warranty: •...

  • Page 18: Getting Started

    CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.
  • Page 19 BUILT-IN UNIT OPENING DIMENSIONS MODEL OPENING DIMENSIONS NOTES BILEX485 29 3/4” 21 3/8” 7 1/2” 756mm 543mm 191mm SIDE 12 3/4” 16 1/2” 4 1/2” OPENING OF AT LEAST 5 SQ (32cm ) IN MUST BE PROVIDED FOR BURNER 324mm...
  • Page 20 BUILT-IN ACCESSORY OPENING DIMENSIONS OPENING DIMENSIONS PART # DESCRIPTION PICTURE N370-0361 PF STYLE STAINLESS STEEL 17” (432mm) 23 ¼” (591mm) DOOR N370-0359 PF STYLE STAINLESS STEEL 17 ¼” (438mm) 6 ¾” (171mm) 23” (584mm) SINGLE DRAWER N370-0360 PF STYLE STAINLESS STEEL 17 ¼”...
  • Page 21 BI ACCESSORY DRAWER INSTRUCTIONS 1. Unpack the drawer frame assembly. 2. Remove the drawers from the enclosure by fully extending them and then lifting up to remove them from the slides. 3. Shim the opening to ensure that the enclosure fits snuggly into the opening. Ensure that the side shims are located at the same height as the enclosure mounting holes.
  • Page 22 BILEX485 BUILT-IN INSTRUCTIONS N570-0073 (1/4-20 X 3/8”) REGULATOR FOR NATURAL GAS MODELS This grill is designed for masonry, NON-COMBUSTIBLE enclosures only, and must be installed and serviced by a qualified installer to local codes. 1. Attach side mounting brackets to each side of the grill using #1/4-20 x 3/8" screws (N570-0073).
  • Page 23 FOLD TABS OVER TO SECURE GLASS IN PLACE. N415-0271-AU JAN 24.18 www.napoleongrills.com...
  • Page 24 www.napoleongrills.com N415-0271-AU JAN 24.18...
  • Page 25 Rotisserie Kit Assembly Instruction (optional) Assemble rotisserie kit components as shown. Ensure stop bushing is tightened on the inside of hood casting. N415-0271-AU JAN 24.18 www.napoleongrills.com...
  • Page 26 Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified gas installer. STOP If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.
  • Page 27 N415-0271-AU JAN 24.18 www.napoleongrills.com...

  • Page 28: Parts List

    N335-0042L-M02 stainless steel lid insert N585-0078 lid heat shield N570-0091 1/4-20 x 1/2” screw N010-0742 lid handle N385-0307-SER NAPOLEON logo N450-0044 logo clips N510-0013 black silicone lid bumper N080-0287-GY1HT lid handle cover N570-0042 #10-24 x 3/8” screw N570-0015...
  • Page 29 Parts List Item Part # Description N010-0843 drip pan N585-0044 heat shield drip pan N715-0084-M02 rear trim N080-0216-M02 bracket unit mount N080-0309 glass mount N300-0006 infrared glass N010-0499 infra red burner N080-0207-M01 support bracket infra red burner N215-0007-M01 bracket infra red N010-0526P-AU infra red rear burner N010-0526N-AU...
  • Page 30 Notes www.napoleongrills.com N415-0271-AU JAN 24.18...
  • Page 31 Notes N415-0271-AU JAN 24.18 www.napoleongrills.com...
  • Page 32 Napoleon products are protected by one or more U.S. and Canadian and/or foreign patents or patents pending. N415-0271-AU...
