AMX SVSI SC-WPC Quick Start Manual

sshh

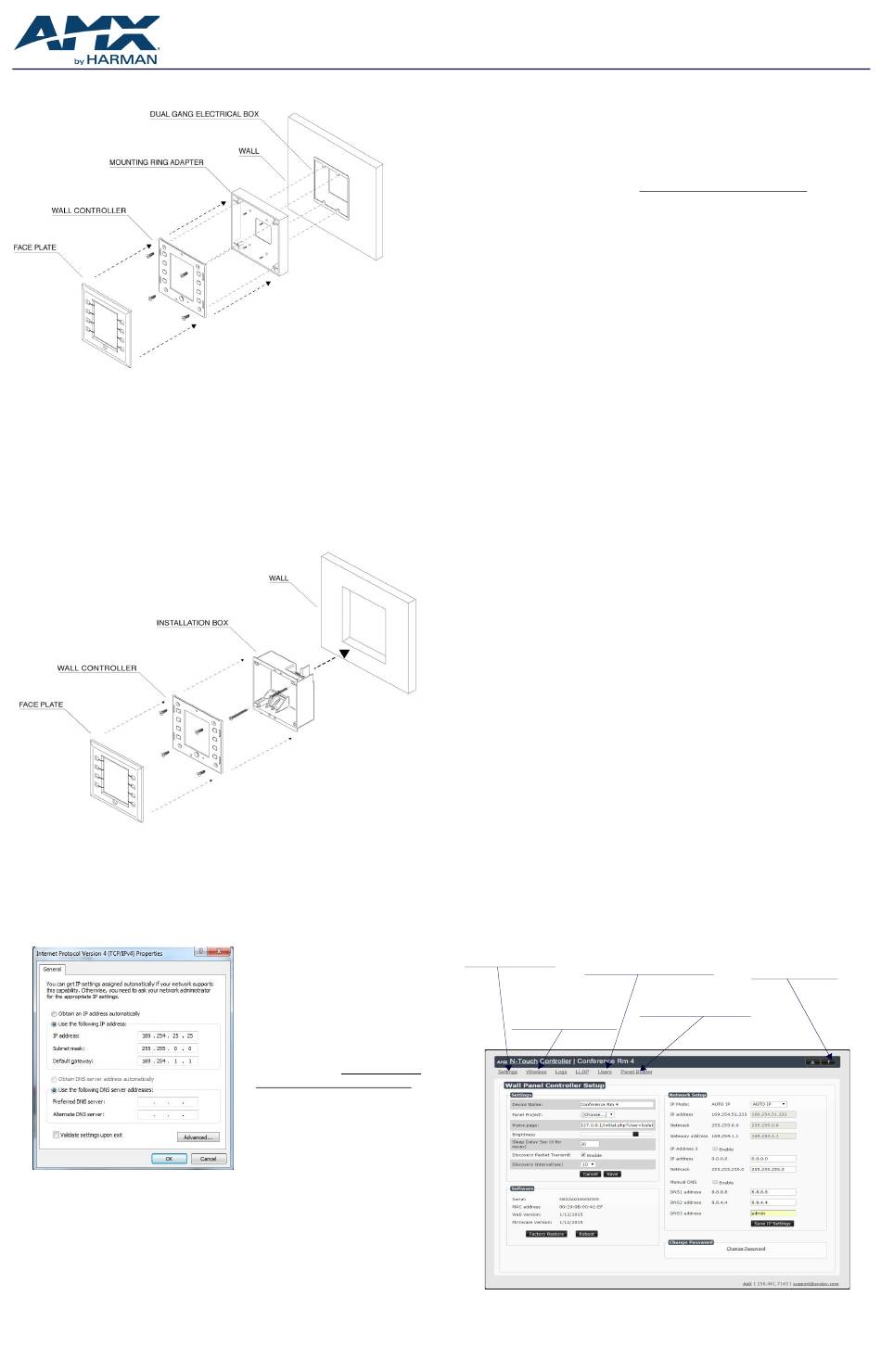

Ring Adapter Installation (SC-WPC-SM/SC-TC-SM)
Mounting Instructions - Flushmount Installation
Follow these steps to flushmount your new SC-WPC-D/SC-TC-D into the wall.
The steps given assume the installer needs no instruction on running Ethernet
to the installation box or other basics.
Flushmount Installation (SC-WPC-D/SC-TC-D)
Conf iguring Your New Wall Controller (Continued)
front panel and displays the unit's serial number, MAC address, and IP address.
1. Using your computer, enter the N-Series Wall Controller's IP address into your
web browser.
2. The N-Series Wall Panel Controller Login screen displays. Use the default
login credentials (username = admin/password = password) to log in for the
first time. Upon successful login, the Settings page displays (shown at right).
N-Series Wall Controllers
QUICK START GUIDE
4.Click the Properties button.
5.Scroll down in the list to the
Internet Protocol Version 4
(TCP/IPv4) option. Highlight it
and click the Properties
button.The screen shown (at
left) is displayed.
6.Enable the Use the following
IP address option, and enter the
static IP address provided to you
by your network administrator.
Logging in for the
First Time
Once connected to the network,
the welcome screen appears on
the N-Series Wall Controller's
SVSI SC-WPC: Stand-alone, dual-gang IP wall controller (push-button)
SVSI SC-TC: Stand-alone, dual-gang IP wall controller (push-button
and touchscreen with built-in WiFi)
There are two types of installations for the N-Series Wall Controllers: Ring
Adapter (when mounting into an existing electrical box) and Flushmount (when
mounting into an SVSI-provided installation box).
Note: If desired, you can pre-conf igure the unit before physically installing it. To
do so, simply plug a PoE (Power over Ethernet) enabled Ethernet connection into
the back of the controller and skip to the section Conf iguring Your New Wall Con-
troller for further instructions.
Important: For ease of installation, only use bootless Ethernet cables when
installing the Controller into the wall. The flexibility is necessary for proper
positioning in the box's small space.
Mounting Instructions - Ring Adapter Installation
Follow the steps below to mount your new SC-WPC-SM/SC-TC-SM into an
existing dual gang electrical box. The instructions given assume the box is
already installed with Ethernet access running to it.
1. Secure the mounting ring adapter (included in shipment) to your existing
dual gang electrical box with four screws.
2. Connect the PoE-enabled Ethernet cable to the rear connector of the wall
controller.
3. Place the wall controller display into the box and secure it with four screws
(included in shipment).
4. Complete the installation by snapping the AMX faceplate onto the front.
1. Using the Wall Controller Installation Cut-Out Template (enclosed in ship- 1. Using the Wall Controller Installation Cut-Out Template (enclosed in ship-
ment), mark the position on the wall where the unit is being installed and cut ment), mark the position on the wall where the unit is being installed and cut
the opening. the opening.
2. Once the opening is cut (and the PoE-enabled Ethernet cable is accessible 2. Once the opening is cut (and the PoE-enabled Ethernet cable is accessible
through the opening) insert the plastic installation box (included in through the opening) insert the plastic installation box (included in
shipment). Use the break-out tabs as needed to correctly position the shipment). Use the break-out tabs as needed to correctly position the
Ethernet cable. Ethernet cable.
3. Secure the installation box to the wall with the two captive screws. 3. Secure the installation box to the wall with the two captive screws.
4. Connect the Ethernet cable to the rear connector of the wall controller. 4. Connect the Ethernet cable to the rear connector of the wall controller.
5. Place the wall controller display into the box and secure it with four screws 5. Place the wall controller display into the box and secure it with four screws
(included in shipment). (included in shipment).
6. Complete the installation by snapping the AMX faceplate onto the front of the 6. Complete the installation by snapping the AMX faceplate onto the front of the
wall controller.
Conf iguring Your New Wall Controller
You will not be able to configure the controller until it is in the same subnet as
the host PC. N-Touch devices are shipped in Auto-IP mode with a default IP
address of 169.254.xxx.xxx. Before attempting configuration, some changes
must be made to the host PC.
Sample steps for IP address configuration (Windows):
1. From the Control Panel > Network and Internet dialog box, select Network
and Sharing Center.
2. Select Change adapter settings.
3. Select the wired interface connected to your AV network.
(Continued)
See the section Viewing
Panels on the SVSI
Click Settings to
Conductor Mobile App for
return to this screen.
details on the Users screen.
See the section Wireless
Conf iguration (SC-TC
Units Only) for details.
Click ? to access
additional
documentation.
See the section Using
Panel Builder for details.
