Each module is shipped with a module label. Insert the module's label into the front of the

Remote 2C for the module in the back of the Remote 2C:

Slide the Module label in until each word is legible:

Connecting Cables From the Remote 2C To the Office LAN

The Remote 2C has two RJ-45 ports on the front of the box for connecting each module to your LAN.

For auto-detection of LAN speed (10Base-T or 100VG), be sure to connect twisted-pair cable to

these connectors before powering on the Remote 2C. Follow the illustrations below to connect the

Remote 2C to your LAN:

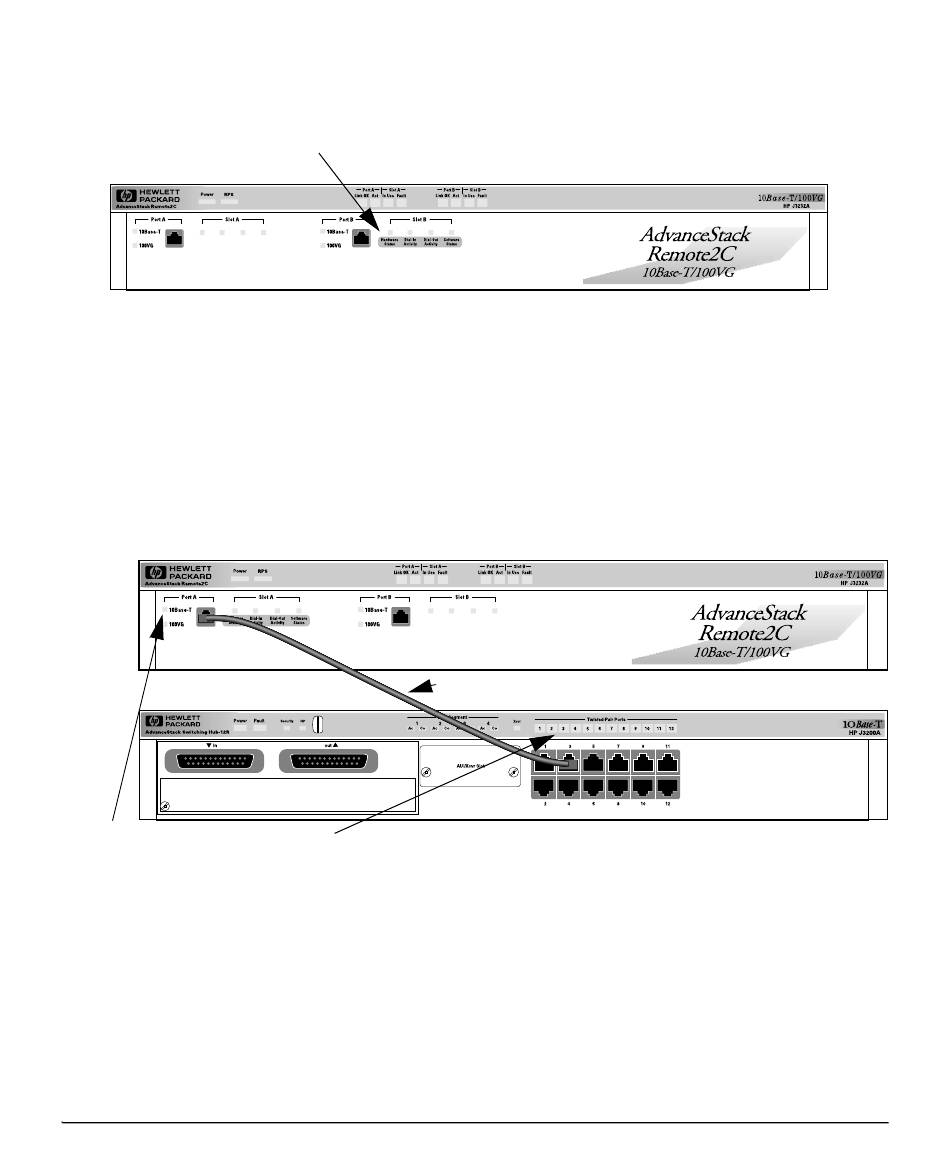

Example 1: Remote 2C connected to an Ethernet Switching Hub-12R

Remote 2C

Hub-12R

LED should light if power is

connected to both the Remote 2C and the hub.

(continued on next page)

Category 3, 4, or 5 unshielded twisted-pair cable

100 meters maximum
