Gardena Smart Irrigation Control Operator's Manual page 9

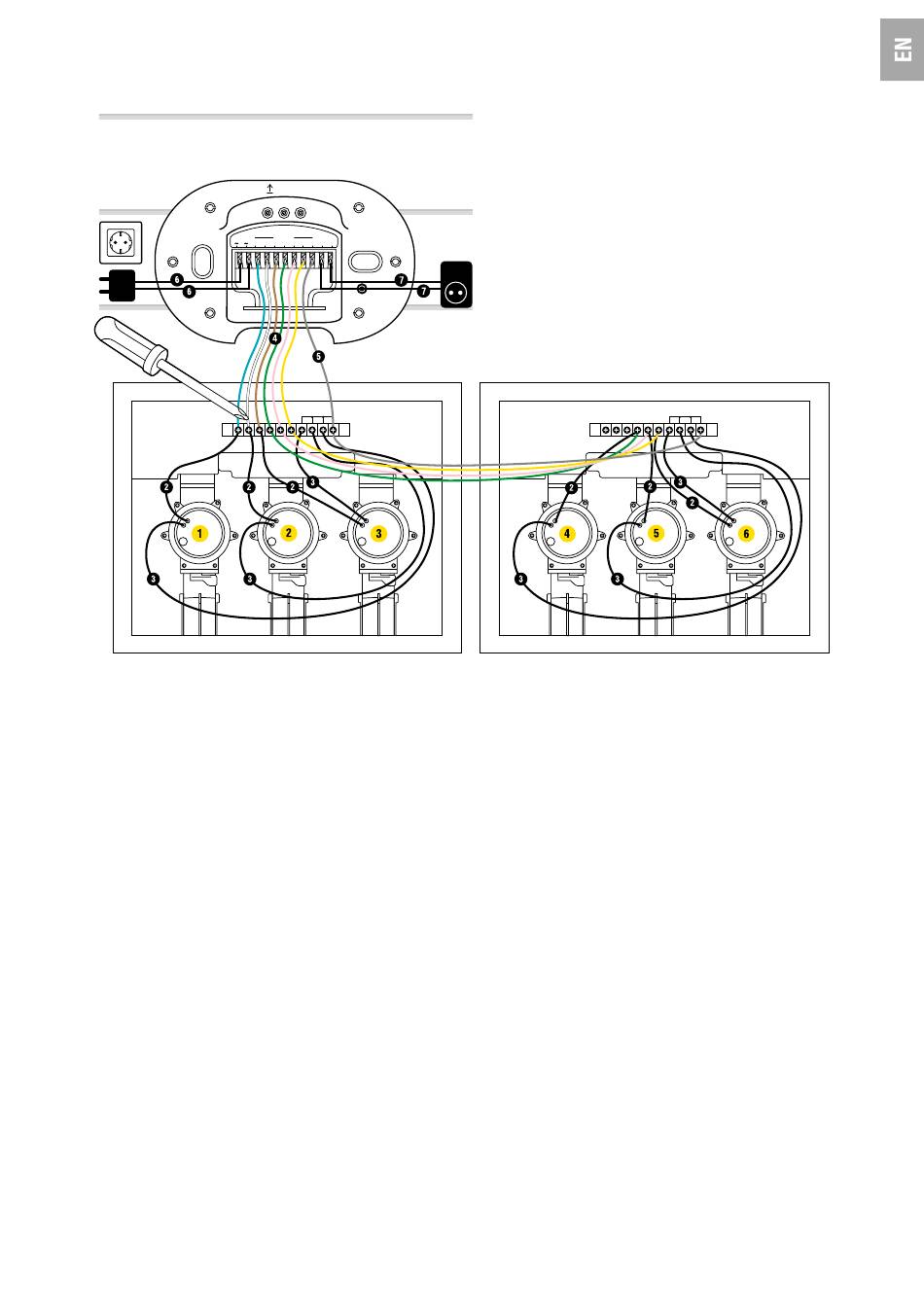

Connection overview:
S/N: 00000000
24 VAC
1 2
24 VAC
POWER
SUPPLY
1 2 3 4 5 6 C C C C
V1
(ART. 1278)
Valve Box Art. 1255
TOP
VALVES MASTER
3 4 5 6 C C M
PUMP
CONTROL
RESET 5s
V2
V3
(ART. 1278) (ART. 1278)
(ART. 1255)
1 2 3 4 5 6 C C C C
V4 V5
(ART. 1278) (ART. 1278)
(ART. 1255)
Valve Box Art. 1255
V6
(ART. 1278)
