Audiovox ACAB104 User Manual

4 sensor backup obstacle sensing system

Hide thumbs Also See for ACAB104:

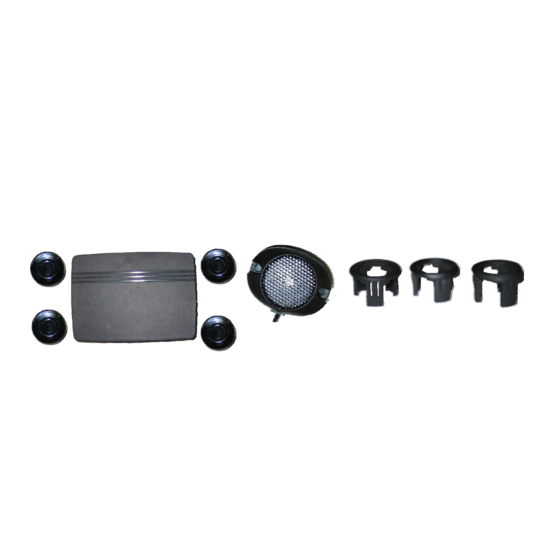

4 Sensor Backup Obstacle Sensing System

Features:

•

Four reversing sensors detect obstacles between 1- 7 feet

•

Includes 0°, 5°, and 10° angle sensor sleeves to fit most

bumpers

•

Activates only when vehicle is in reverse

•

Will not drain battery or void factory warranty

•

Includes speaker/buzzer with 3 settings - high, low, and off

•

Four detection zones give the following warnings:

1 = slow beep within 5-7 feet

2 = medium beep within 3-5 feet

3 = fast beep within 1-3 feet

4 = steady tone within 1 foot

•

Works with any vehicle

Model: ACAB104

Users Manual

0°

5°

10°

Table of Contents

Do you have a question about the ACAB104 and is the answer not in the manual?

Page 1 4 Sensor Backup Obstacle Sensing System Model: ACAB104 Users Manual 0° 5° 10° Features: • Four reversing sensors detect obstacles between 1- 7 feet • Includes 0°, 5°, and 10° angle sensor sleeves to fit most bumpers • Activates only when vehicle is in reverse •...
Page 2 Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corporation cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions.
Page 3: Product Description
Product Description This 4 Sensor Backup Obstacle Scanning System is designed to assist the driver by providing an alert when an object is behind the vehicle whenever the vehicle is shifted into reverse. Never rely solely on this product to ensure the area is clear of children and/or obstructions.
Page 4: Specifications
Specifications Power Supply DC12V Current Draw <180mA Detecting Distance 1 to 7 ft Sensor Cable Length 23 ft Control Box Size 4.125”x 3”x .830” Operating Temperature Range -40°F~ 176°F Maintenance Though your backup system requires minimum care, you should maintain its condition and performance using the following the guidelines: •...
