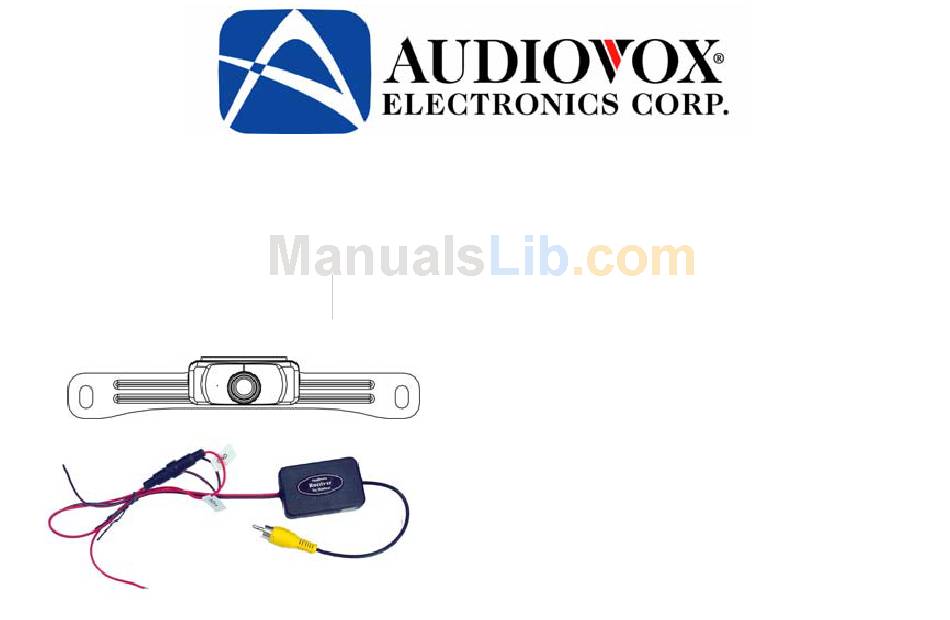

Audiovox license plate rear mounted camera with wireless receiving module

Advertisement

Quick Links

Model ACA200
License Plate Rear Mounted Camera
With Wireless Receiving Module
Installation Manual
FEATURES:
High Resolution: 1/4" CMOS Color Camera
Compact Zinc Alloy Die Cast Body
Waterproof Housing
130 Degree Wide View Angle
Selectable Image: Normal/Reverse
Wireless Transmitter
Adjustable Camera Angle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACA200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Audiovox ACA200

  • Page 1 Model ACA200 License Plate Rear Mounted Camera With Wireless Receiving Module Installation Manual FEATURES: ● ● ● ● ● ● ● High Resolution: 1/4” CMOS Color Camera Compact Zinc Alloy Die Cast Body Waterproof Housing 130 Degree Wide View Angle...
  • Page 2: Table Of Contents

    Warnings Product Description Packing List Camera Installation Wireless Receiver Installation Camera Wiring Diagrams Specifications 8. Troubleshooting 9. FCC Statement TABLE OF CONTENTS...
  • Page 3: Warnings

    Do not use any features of this system to the extent it distracts you from safe driving. Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corporation cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions.
  • Page 4 2. You are responsible for ensuring that the installation of this product does not void or affect the vehicle manufacturer’s warranty. Audiovox Electronics Corporation or its subsidiaries are not liable in full or in part for improper installation resulting in loss or damage to your property, or for voiding all or part of the vehicle manufacturer’s...
  • Page 5: Product Description

    Product Description This revolutionary camera design integrates a wireless backup camera with your vehicle’s rear license plate without covering the license plate. The camera is easy to mount on your car, truck, or van with the bracket being hidden by your license plate. This Wireless Camera transmits a signal using a 2.4 GHz frequency.
  • Page 6: Packing List

    1. CMOS Camera − 1 qty 2. Wireless Receiving Module − 1 qty 3. Theft-proof Screws: 2 each course thread and machine thread 4. Flat Washer, 6mm − 2 qty 5. Anti-Theft Allen Key − 1 qty 6. Wire connectors: Tap connectors-3 qty Ring connector-1 qty 7.
  • Page 7: Camera Installation

    NOTE: The transmitting antenna is located in the camera’s wire shielding. When installing the camera wire, straighten the wire for best transmission, allowing the monitor to receive the clearest image possible. DO NOT CUT THIS WIRE. Remove the rear license plate to determine the best way to run the power wires to the reverse lights.
  • Page 8 preventative. Route the camera cable connector through the hole and insert the grommet into the hole to prevent water from entering into the vehicle. Place the camera bracket behind the license plate and line up the holes. Fasten the camera mounting bracket and the license plate to the vehicle using the anti-theft screws provided.
  • Page 9 Close the top hinged cover until latched. Attach the black wire to the ground. Place the un-stripped ground lead wire on the run channel. Insert the un-stripped black ground wire completely. iii. Fold the tap connector back over the wires and make the connection by crimping the u-contact down flush with the plastic insulator.
  • Page 10: Wireless Receiver Installation

    The receiver must be installed in the vehicle’s trunk or interior. The receiver are not weather proof and must be located in a dry location 1. Wiring the receiver connection. Wiring the receiver to the vehicle. Choose a source that only has power when the vehicle is running.
  • Page 11 connection by crimping the u-contact down flush with the plastic connector. iv. Close the top hinged cover until latched. b. Black wire-Chassis/Ground. Using ground ring supplied, i. Place stripped wire (1/4”) inside connector. ii. Crimp the connector using a crimping tool to secure the wire. iii.
  • Page 12: Camera Wiring Diagrams

    Camera Wiring (Color Camera View) Camera Wiring...
  • Page 13: Specifications

    1. Voltage: DC12V 2. Operating Current: Transmitter: 130 mA b. Receiver: 180mA 3. Signal System: NTSC 4. Image Sensor: ¼” CMOS Sensor 5. Horizontal Resolution: 480 lines Specifications...
  • Page 14: Troubleshooting

    6. Viewing Angle: 130 degrees 7. Minimum Illumination: 0.3Lux 8. Image Display: Selectable Normal/Reverse Image 9. Wireless Transmission Operating Frequency: 2.4GHz 10. Operating temperature: 0°C-50°C 11. Adjustable Viewing Angle 12. Camera Outer Dimensions: 25mm (W) x 30mm (H) x 62mm (D) Troubleshooting Symptoms Solutions...
  • Page 15 while reversing the vehicle Video image is not sharp enough Symptoms The Monitor is not on after the vehicle is started and vehicle is in reverse? No video signal appears while reversing vehicle? needed. 2. Check the rear view camera wiring and connection.
  • Page 16: Fcc Statement

    Video image is not sharp enough? 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and b. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 compliance could void the user’s authority to operate the equipment...
