Audiovox Auto Security AA-9103N Installation Manual

AA-9103N
SIREN MOUNTING:
1. Find a suitable spot to mount the siren in the engine
compartment (firewall, sidewall, etc.).
2. Using siren bracket as a template, drill (2) 1/8" diameter
holes in mounting surface.
Note: If mounting on the firewall, make certain there is no
interference on the other side of the firewall.
3. Secure bracket using screws provided with kit.
4. Secure siren to the bracket using bolts and lock washers
provided.
WARNING - Open end of siren must point downward to
prevent water collection in horn end of siren.
BLACKWIRE-SPLICEINTOCHAS-
SIS GROUND LEAD OF
EXISTING ALARM.
INSTALLATION GUIDE FOR:
Battery Back-Up
Printed in U. S. A.
WIRING:
RED WIRE - Splice to +12 VDC battery source lead of existing
alarm.
BLACK WIRE - Splice to chassis ground lead of existing
alarm.
WHITE w/ BLACK STRIPE WIRE - Connect to the positive
siren output from the alarm module.

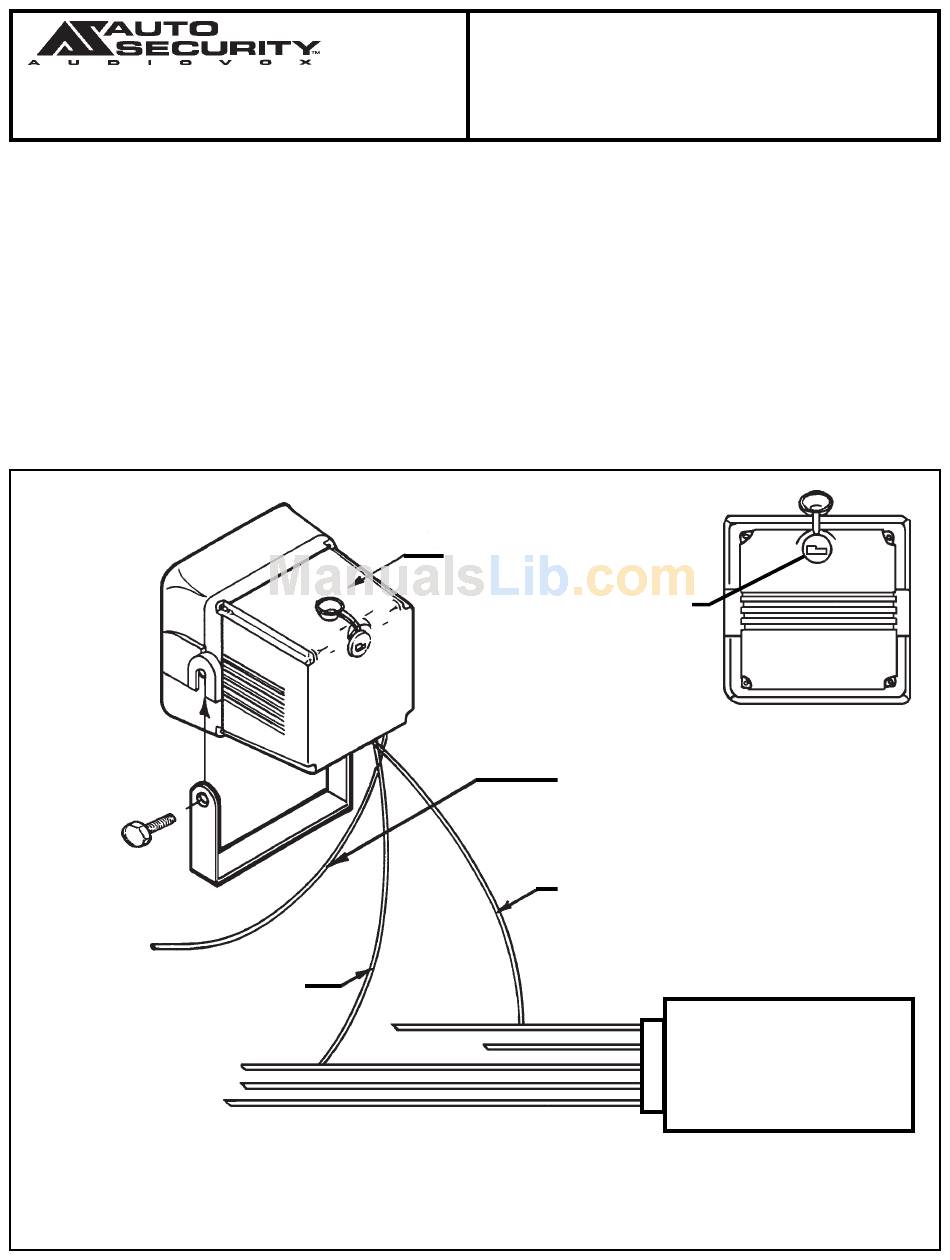

BACK-UP SIREN
NOTE: BEFORE MAKING
CONNECTION,
SURE KEY IS IN THE "OFF"
POSITION AS SHOWN.
WHITE w/BLACK STRIPE - CONNECT TO
THE POSITIVE SIREN OUTPUT FROM THE
ALARM MODULE.
RED WIRE - SPLICE TO +12VDC BATTERY
SOURCE LEAD TO EXISTING ALARM.
NOTE : MAKE SPLICE CONNECTIONS AS CLOSE TO
EXISTING ALARM AS POSSIBLE.
Form No. 128-4503
ON
MAKE
OFF
