Instruction Manual for CMOS2
5‐in‐1 Rear‐view Camera
Dear Customer,
CONGRATULATIONS! This 5‐in‐1 high resolution rear‐view
camera kit when used as described can be installed in 5
different ways and will improve your ability to see what
behind you car, CRV or mini‐van. We have taken numerous
measures in quality control to ensure that your products
arrive in top condition and will perform to your satisfaction.
BEFORE YOU INSTALL
Automotive video equipment installations can be difficult at
times, even to the most experienced installation technicians.
If you are not confident working with 12 volt DC vehicle
wiring, removing and reinstalling interior panels, carpeting or
other components of your vehicle, contact the vehicle's
manufacturer or consider having the system installed
professionally.

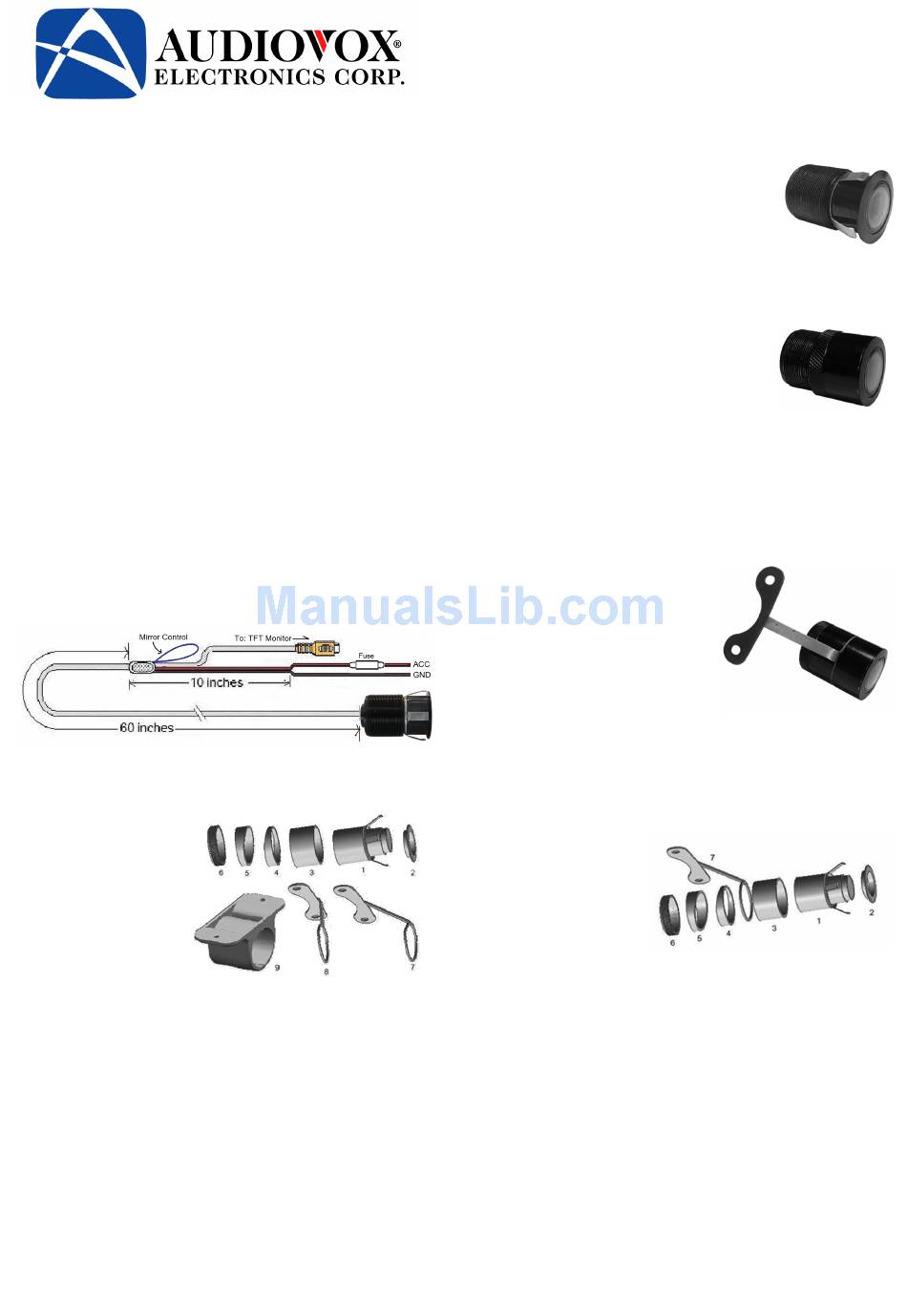

PARTS

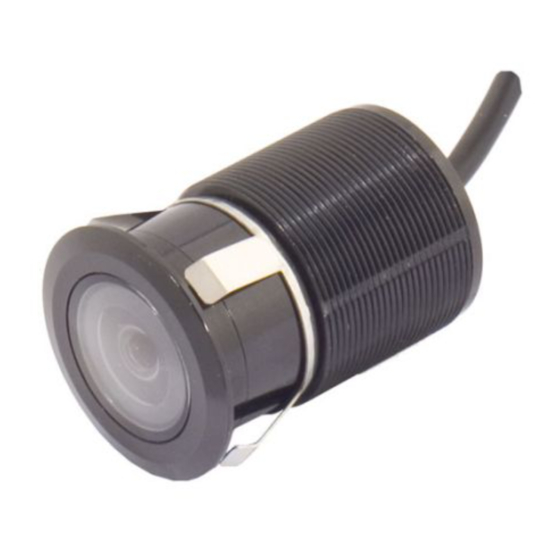

1. Camera main body with 70" power and signal cable.
2. Parts package listed below:
•
Camera main unit
•
Trim Ring
•
Main ring
•
Slim angle ring
•
Angle ring
•
Locking ring
•
Long butterfly
bracket
•
Short butterfly
bracket
•
Surface mount
bracket
INSTALLATION INSTRUCTIONS
This camera kit can be in the following installations:
a.
Bumper Mounted
b. Traditional Drilled/Angled Mount
c.
With Long Butterfly Style Bracket
d. With Short Butterfly Style Bracket
e. Surface Mounted Style
NOTE: The Trim Ring (Part no #2) can be painted in any color
and then replaced to match the Vehicle Color. DO NOT PAINT
ON THE CAMERA.
A. Bumper Mounted
Before you drill a hole on the rear bumper, you must check
what is behind where you are drilling. If there are any vehicle
components, such as electrical parts or fuel system
components behind where you are drilling, you must take
whatever precaution necessary not to damage them. Insure
you have enough depth for the camera housing.
1. You will only need #2 attached to the
camera.
2. Use a 15/16" diameter hole saw to drill
a hole on the rear bumper.
3. Insert the camera cable into the hole
and carefully feed through the hole. Route the cable into
the trunk or Tail Light Housing area.
4. Connect the camera power cable: Red to reverse lamp
power +12V and black to ground.
5. Connect the monitor and camera using
a video coax cable.
NOTE: DO NOT USE AN AUDIO RCA
CABLE.
B. Traditional Drilled/Angled Mount
1. Parts # 3, 4, 5, &6 may be used depending on the
mounting location selected. Use any combination to
adjust to your required mounting angle.
2. Use a 15/16" diameter hole saw to drill a hole in the
mounting location.
3. Insert the camera cable into
the hole and carefully feed
through.
4. Route the cable into the trunk
or tail light housing area.
5. Connect the camera power
cable: Red to reverse lamp
power +12V and black to
ground.
6. Connect the monitor and camera using a video coax
cable.
NOTE: DO NOT USE AN AUDIO RCA CABLE.
C. Long Butterfly Style Bracket
1. Parts #2, #1 #3, #7,
#4, #5 and #6 May
be for the Butterfly
mount at any
position on the
camera.
2. Mount the camera using two screws. Always inspect the
installation location to verify there is nothing located
behind your mounting location.
3. Route the cable into the trunk or tail light housing area.
4. Connect the camera power cable: Red to reverse lamp
power +12V and black to ground.
5. Connect the monitor and camera using a video coax
cable.
NOTE: DO NOT USE AN AUDIO RCA CABLE.
