Connect the Grounding Cable
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist,
and connect the strap to the ESD point on the chassis.
2. Connect one end of the grounding cable to a proper earth ground, such as the
rack in which the services gateway is mounted.

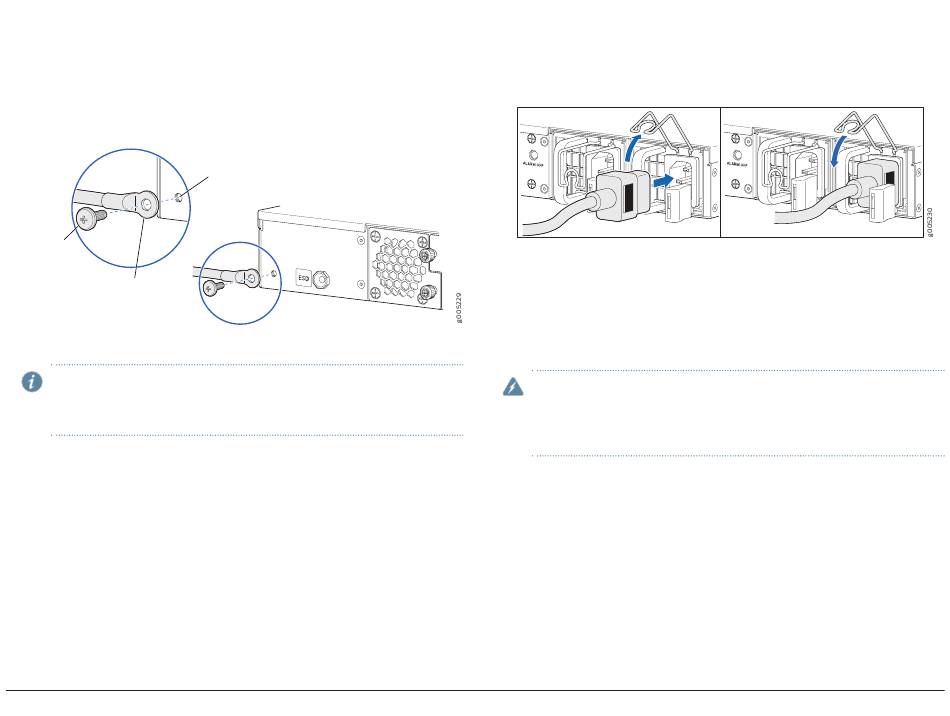

3. Place the grounding cable lug over the grounding point on the rear of the
chassis.
Grounding
screw
Grounding
lug
NOTE:
The device should be permanently connected to ground during
normal operation. A licensed electrician must attach a cable lug to the
grounding cable. A cable with an incorrectly attached lug can damage
the device.
4. Secure the grounding cable lug to the grounding point with the screw.
Grounding point
on the chassis
How to Set Up Your SRX4100 Services Gateway
Power On the Device
1. If you are using the AC model, perform the following steps:
a. Insert the coupler end of the power cord into the AC power cord inlet on
the AC power supply faceplate. Push the power cord retainer onto the
power cord.
b. Insert the power cord plug into an AC power source outlet.
c. Turn on the power to the AC power receptacle.
d. Repeat steps a through c for the second AC power supply.
e. Verify that the AC and DC LEDs on each power supply are lit green.
2. If you are using the DC model, perform the following steps:
WARNING:
Before performing the following procedure, ensure that
there is no power in the DC circuit. To ensure that all power is cut off,
locate the circuit breaker on the panel board that services the DC circuit,
switch the circuit breaker to the OFF (0) position, and tape the switch
handle of the circuit breaker in the OFF position.
a. Ensure that the voltage across the DC power source cable leads is 0 V and
that the cable leads do not become active while you are connecting DC
power.
3
