FOR USE WITH L.P. (LIQUID PETROLEUM) GAS
TABLE OF CONTENTS
SAFETY...................................................................
INSTALLATION......................................................
HOSE & REGULATOR............................................
THREAD TYPE CONNECTIONS.............................
GAS CYLINDER......................................................
LEAK TESTING.......................................................
VENTURI TUBES....................................................
LIGHTING...............................................................
OPERATION...........................................................
COOKING TECHNIQUES.......................................
MAINTENANCE..................................................... 10
TROUBLESHOOTING............................................. 11
WARRANTY........................................................... 12
READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR GAS GRILL.
Distributed by in Australia:
Sitro Group Australia Pty Ltd.
33-35 Lionel Road, Mt. Waverly
Victoria 3149, Australia
Phone: 1 300 174 876
PLEASE SEE ASSEMBLY MANUAL FOR ASSEMBLY INSTRUCTIONS.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

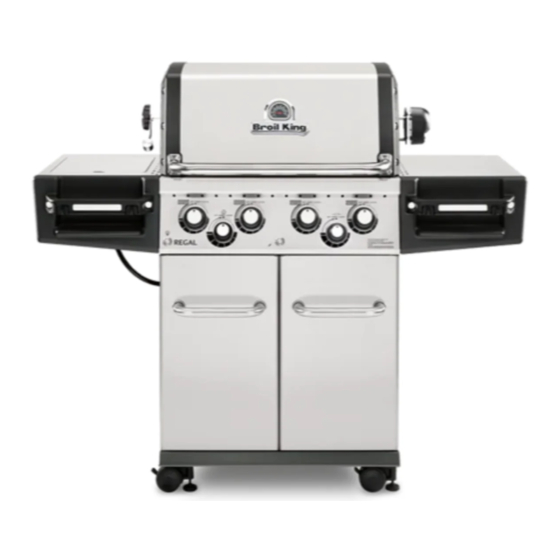

GAS BARBECUE GRILL
OWNER'S MANUAL
IF YOU SMELL GAS:
1. SHUT OFF GAS TO THE APPLIANCE
2. EXTINGUISH ANY OPEN FLAME
3. IF ODOR CONTINUES, KEEP AWAY FROM
THE APPLIANCE AND IMMEDIATELY CALL
YOUR GAS SUPPLIER OR YOUR FIRE
DEPARTMENT
1. DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE LIQUIDS OR
2
VAPORS IN THE VICINITY OF THIS
APPLIANCE
2
2. AN LP CYLINDER NOT CONNECTED FOR USE
3
SHALL NOT BE STORED IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE
3
PLEASE RECORD YOUR MODEL NUMBER, SERIAL
4
NUMBER AND DATE OF PURCHASE HERE.
5
This information can be found on a black and silver OMC
caution sticker on the back or side of your gas grill.
5
Model Number
6
7
Serial Number
7
Date of Purchase
DANGER
WARNING
-
-
/
/
dd
mm
20094-40AU REV C 11/16
yyyy
Advertisement
Table of Contents
Related Manuals for Onward 9561-84AU
Summary of Contents for Onward 9561-84AU
-
Page 1: Table Of Contents
GAS BARBECUE GRILL OWNER’S MANUAL FOR USE WITH L.P. (LIQUID PETROLEUM) GAS DANGER IF YOU SMELL GAS: 1. SHUT OFF GAS TO THE APPLIANCE 2. EXTINGUISH ANY OPEN FLAME 3. IF ODOR CONTINUES, KEEP AWAY FROM THE APPLIANCE AND IMMEDIATELY CALL YOUR GAS SUPPLIER OR YOUR FIRE DEPARTMENT WARNING... -
