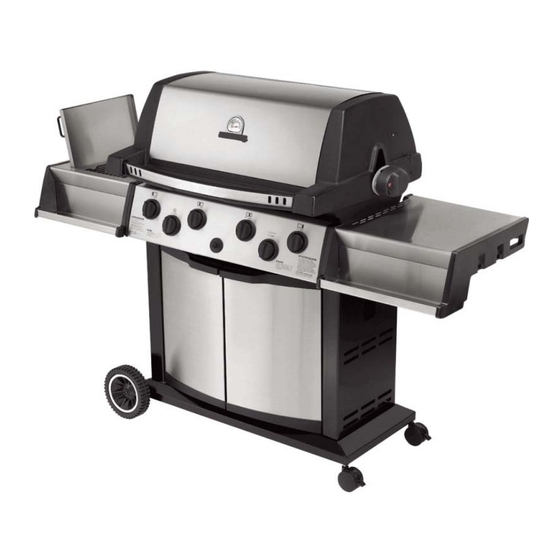

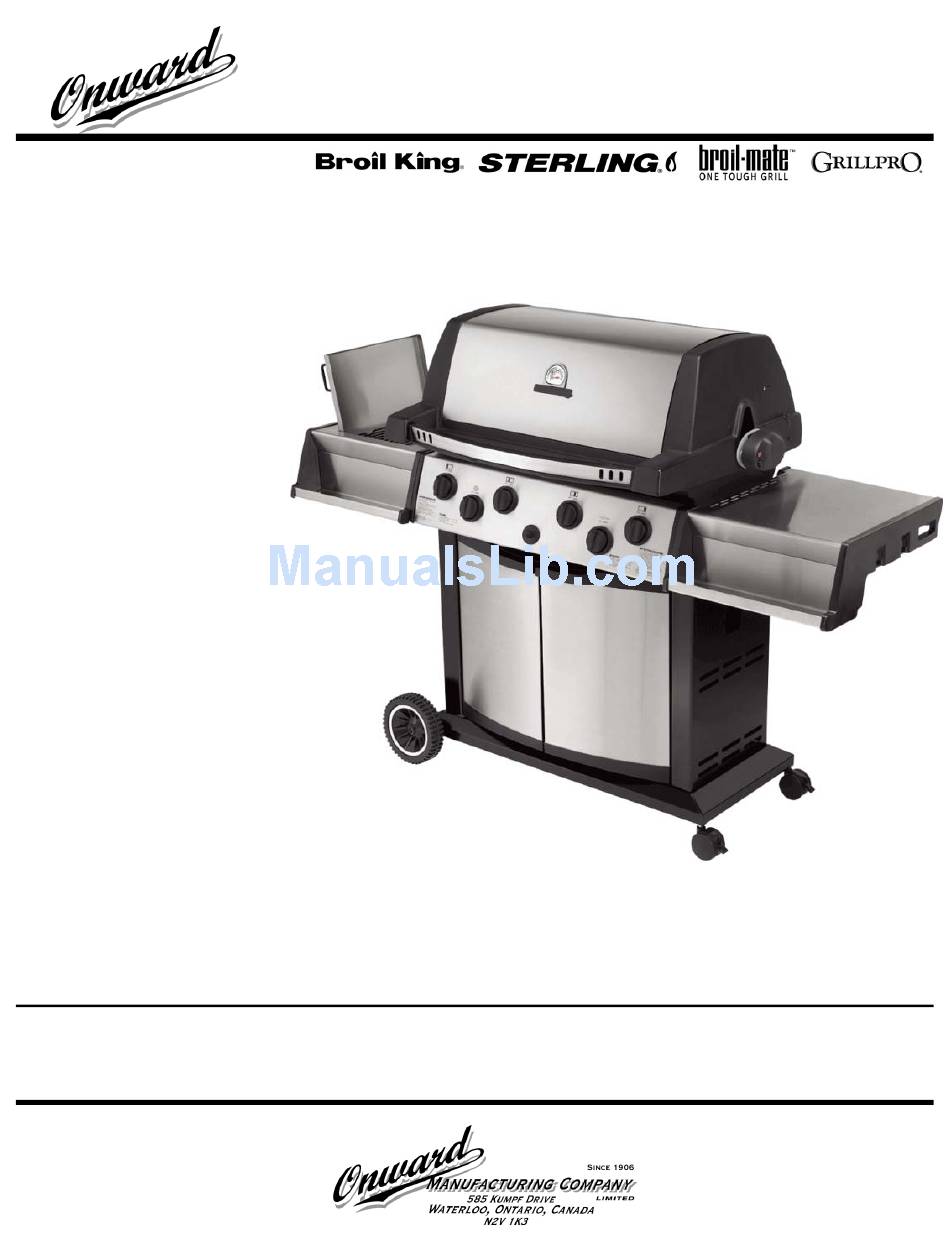

GAS BARBECUES
OWNER'S MANUAL
FOR USE WITH BUTANE OR PROPANE GAS
CATEGORY I
, CATEGORY I
3+(28-30/37)
3B/P(30)
CONTENTS
SAFETY ............................................................. 2
REGULATOR / LP GAS HOSE ........................ 3
VENTURI TUBES .............................................. 3
BUTANE ............................................................ 4
PROPANE ......................................................... 5
LEAK TESTING ................................................ 6
LIGHTING .......................................................... 7
OPERATION ..................................................... 8
COOKING TECHNIQUES ................................. 8
MAINTENANCE .............................................. 10
TROUBLE SHOOTING ................................... 11
WARRANTY .................................................... 12
READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR GAS BARBECUE
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
10094-40EU REV J 03/15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Onward 9585
Summary of Contents for Onward 9585
-
Page 1: Table Of Contents
GAS BARBECUES OWNER'S MANUAL FOR USE WITH BUTANE OR PROPANE GAS CATEGORY I , CATEGORY I 3+(28-30/37) 3B/P(30) CONTENTS SAFETY ............. 2 REGULATOR / LP GAS HOSE ......3 VENTURI TUBES ..........3 BUTANE ............4 PROPANE ............5 LEAK TESTING ..........6 LIGHTING ............ -
Page 2: Safety
SAFETY This appliance is designed in accordance with CE Standards. 9581 / 9585 / 9586 / 9785 / 9986- 23.1 kW 1680 g/h 0.91mm 0.79mm 1.02mm Use outdoors only. 9865 / 9867 / 9868 / 9869-53 11.4 kW 829 g/h 0.97mm... -
Page 3: Regulator / Lp Gas Hose
REGULATOR/LP GAS HOSE VENTURI TUBES • KEEP VENTURI TUBES CLEAN. REGULATOR • Blockages caused by spiders insects and nests This appliance must be fitted with a regulator complying can cause a flashback fire. with the local/national standards and/or norms with a Although the barbecue might still light, the backed up nominal outlet pressure of: gas might also ignite and cause a fire around the venturi... -
Page 4: Butane
CHANGING A GAS CYLINDER - BUTANE This appliance may be used with butane at an operating pressure of 28 - 30 mbar. NEVER use an unregulated gas supply or a regulator for other operating pressures. WARNING: Changing a cylinder must be carried out in a flame free environment. BUTANE cylinders have various types of connections - a) Screw-On Connection. -
Page 5: Propane
CHANGING A GAS CYLINDER - PROPANE This appliance may be used with propane at an operating pressure of 30-37 mbar. NEVER use an unregulated gas supply or a regulator for other operating pressures. WARNING: Changing a cylinder must be carried out in a flame free environment. Propane cylinders have various types of connections. -
Page 6: Leak Testing
LEAK TESTING All factory-made connections have been thoroughly 6. If your barbecue is equipped with a side burner or tested for gas leaks and the burners have been flame rear burner: tested. However, shipping and handling may have a. Place finger tip over the side burner or rear loosened a gas fitting. -
Page 7: Lighting
LIGHTING 9b. For Side Burner: Push and turn side burner control knob to "Hi." Push and hold the ignitor button. Burner should ignite within 5 seconds. Note: To light burner with a match follow steps 1 thru 8 above. Apply lighted match to burner ports. Push in the side burner control knob and turn to "Hi". -
Page 8: Operation
OPERATION COOKING TECHNIQUES Burn-off. Before cooking on your gas barbecue for the first DIRECT GRILLING time, burn off the barbecue to rid it of any odours or foreign The direct grilling method involves cooking the food on grids matter as follows: directly over the flame. -
Page 9: Rotisserie Cooking
COOKING TECHNIQUES ROTISSERIE COOKING DIRECT GRILLING GUIDE Follow the steps for Indirect Convection Cooking above. 1” HEAT TIME PER TOTAL THICKNESS SETTING SIDE TIME 1. The rotisserie can CHICKEN MED / WELL MEDIUM 3 / 3 / 3 / 3 12 MIN. -
Page 10: Maintenance
MAINTENANCE PERIODIC MAINTENANCE ANNUAL MAINTENANCE After you have finished, prepare for the next cookout by To ensure safe and efficient performance, the following burning off any residue of food from the grid and Flav-R- components should be inspected and cleaned at least once Wave™... -
Page 11: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION SMELL OF GAS SHUT OFF LP GAS CYLINDER VALVE AT ONCE. DO NOT USE THE APPLIANCE UNTIL LEAK IS SEALED. Leak detected at cylinder, regulator or Regulator fitting loose. Tighten fitting and "Leak Test". other connection. -
Page 12: Warranty
WARRANTY The OMC Warranty is effective from date of purchase and is BURNERS limited to the repair or replacement of parts at no charge which The life of OMC burners (made of stainless steel) depends prove to be defective under normal domestic use. almost entirely on proper use, cleaning and maintenance.
