Service Manual
SBK800-16
SPINNER ® CHRONO™ POWER
&
SPINNER ® CLIMB™
INDOOR CYCLES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPINNER CHRONO POWER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Precor SPINNER CHRONO POWER

Summary of Contents for Precor SPINNER CHRONO POWER

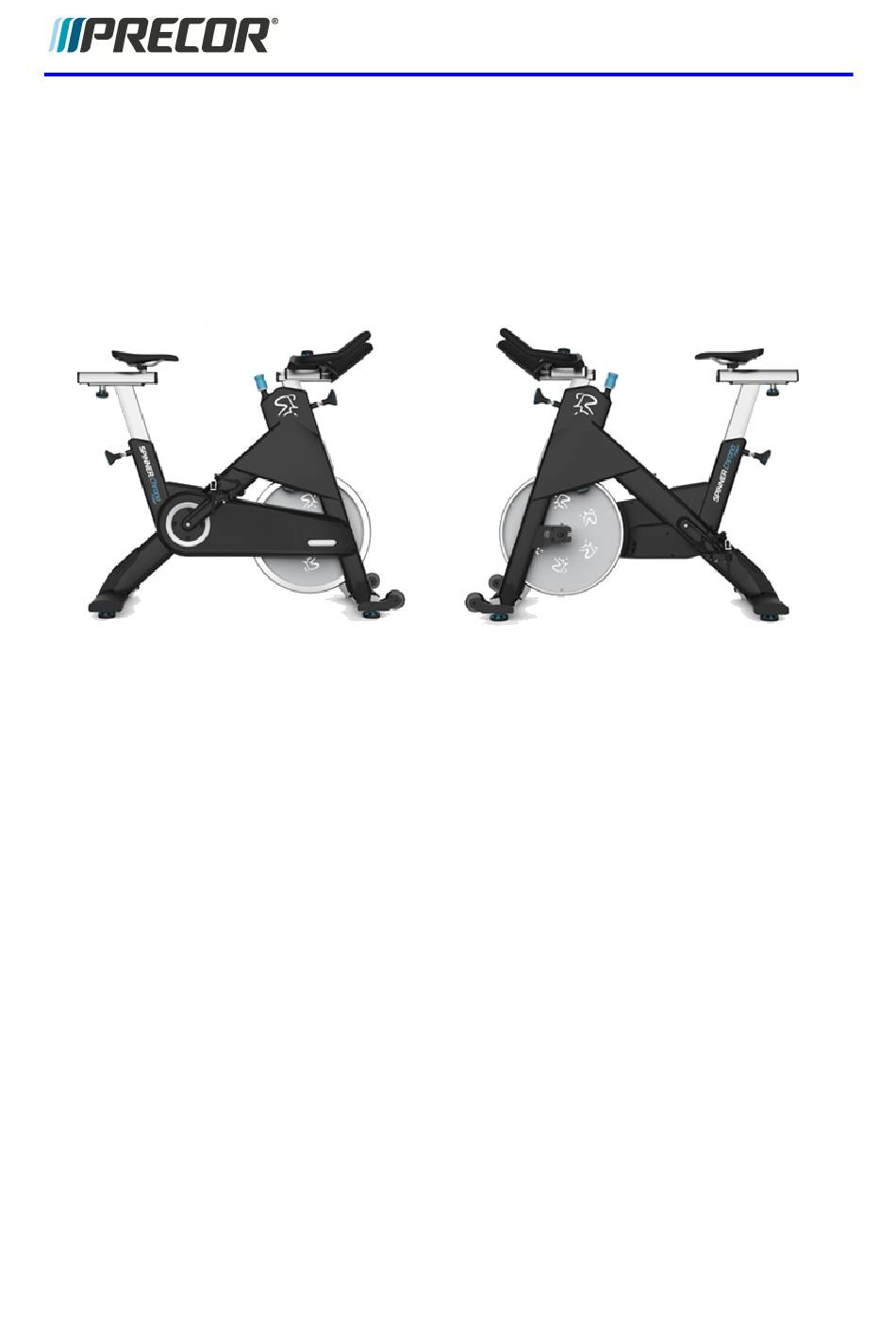

  • Page 1 Service Manual SBK800-16 SPINNER ® CHRONO™ POWER & SPINNER ® CLIMB™ INDOOR CYCLES...

  • Page 2: Table Of Contents

    Contents 1    Introduction About This Document 2    General Information Orientation Convention Tools Specification Summary Parts Lubrication Cleaning Safety Guidelines Safety guideline you need to know and follow: 3    Operation Verification About Operation Verification Checklist 4    Adjustment Procedures About Available Adjustment Procedures AutoCal Procedure Brake Pad Adjustment Procedure Drive Belt Tension and Tracking Adjustment About...
  • Page 3 Procedure Bike Leveling Adjustment 5    Replacement Procedures Replacement Procedures Battery Replacement About Specifications Determining the battery condition Battery Fuse Procedure Belt Guard Cover Replacement About Procedure Brake Pad Replacement About Specialized Tools Procedure Caliper Assembly Replacement About Strain gauge cable routing Specialized Tools Replacement Procedures Replacement Procedure - (Spinner®...
  • Page 4 About Specifications Procedure Generator Assembly Replacement About Procedure Handlebar Assembly Replacement About Procedure Handlebar Adjustment Knob Replacement About Procedure Handlebar Post Removal About Procedure - (Spinner® Chrono™ Power models only) Procedure - (Spinner® Climb™ models only) LPCA board Replacement About LPCA Interface Cable Connections LPCA Status LEDs Procedure...
  • Page 5 Procedure Resistance Knob Replacement About Procedure Seat Assembly Replacement About Procedure Stabilizer Replacement About Front Stabilizer Replacement Rear Stabilizer Replacement 6    Troubleshooting About Introduction To Troubleshooting Basic Steps Service and Diagnostic Menus About Service/Setup Mode Access Menu Navigation Service and Settings Menus Error Log Active Status Light (ASL) About...
  • Page 6 System Troubleshooting Procedures About Available procedures Belt Drive Issues Resistance Issues Eratic Power (WATTS) Measurements 7    Preventive Maintenance About Maintenance Schedule Precor Preventative Maintenance Plan 8    Parts About Exploded View Diagram Parts List 9    Consoles About Spinner® Chrono™ Console About Powering ON the Console...
  • Page 7 About Cadence (RPM) sensor installation Heart Rate Belt Bluetooth Pairing Service and Maintenance Appendix A : Edition Information Edition Additional Documentation Copyright Appendix B : Notices and Safety Trademarks Intellectual Property Warranty Safety Instruction Safety Notices Page vii...

  • Page 8: 1    Introduction

    1    Introduction About This Document If you are not a Precor certified servicer, you must not attempt to service any Precor Product. Call your dealer for service information. WARNING: This service documentation is for use by Precor certified servicer pro- viders only. Personal injury can result from electrical shock and/or mechanical moving parts.
  • Page 9 1 Introduction About This Document Indoor Cycle Model Feature Summary Spinning® Studio™ console Additional Documentation There is also an online web version if you have internet access at: Online Service Manuall See Also "General Information" on page 3 "Safety Guidelines" on page 6 "Operation Verification"...

  • Page 10: 2    General Information

    2    General Information The following information provides general equipment and service information that will help you to use this manual to properly repair and maintain the bike. Orientation Convention The equipment orientation (front, right, left, back) used in manual is referenced to a user sitting on the equipment facing the handlebars.

  • Page 11: Specification Summary

    Parts IMPORTANT: Always purchase OEM replacement parts and hardware from Precor. If you use parts not approved by Precor, you could void the Precor Limited Warranty. Use of parts not approved by Precor may cause injury. Major Assembly and Parts Location...

  • Page 12: Lubrication

    Precor Connect website to view the most current parts information including the Exploded View Diagram and Parts Identification List . Precor Connect Partner Website Lubrication Common metal parts Use only synthetic lubricants such as Mobile 1 Synthetic grease or Super Lube with Teflon. Use of unapproved lubricants, cleaners, or solvents may void the bike warranty.

  • Page 13: Safety Guidelines

    2 General Information Safety Guidelines Safety Guidelines Safety guideline you need to know and follow: Read and follow all Warning notices to protect yourself from personal injury. Read and follow all Caution notices to prevent damage to the equipment. Read the owner’s manual and follow all operating instructions. Operate the equipment on a solid, level surface.

  • Page 14: 3    Operation Verification

    3    Operation Verification About Use the Operation Verification Checklist to verify the [[[Undefined variable Pro- ductInfo.EqptType]]] operation. Verify the [[[Undefined variable ProductInfo.EqptType]]] oper- ation at the completion of any maintenance procedure and when it is necessary to ensure that the [[[Undefined variable ProductInfo.EqptType]]] is operating properly. Operation Verification Checklist Do an overall visual inspection of the bike looking for any loose hardware and/or missing parts.
  • Page 15 3 Operation Verification Operation Verification Checklist Stop pedaling and wait for the pedals to completely stop. Wait 10 seconds to allow the bike to complete the power measurement auto-cal function. While continuously pedaling the bike at 60 RPM, verify that the measured workout WATTS at minimum and maximum resistance levels is within spe- cification.

  • Page 17: 4    Adjustment Procedures

    4 Adjustment Procedures About 4    Adjustment Procedures About Adjustment procedures provide you with the step-by-step adjustment instructions to bring sys- tems and components into specification. Perform the adjustment procedures whenever a trouble symptom points to a particular component and after a major component is removed/re- placed.

  • Page 18: Procedure

    An exerciser quits a workout and dismounts the bike without setting the resistance level to minimum. In this case the bike will perform an inaccurate AutoCal because the resistance was not set to minimum. The new exerciser will read inaccurate power WATTS results unless a new AutoCal is performed with the resistance set to minimum.

  • Page 19: Brake Pad Adjustment

    4 Adjustment Procedures Brake Pad Adjustment Brake Pad Adjustment This procedure provides instruction to adjust the Magnetic Brake Pads. The brake pad-flywheel gap must be correctly set to insure proper resistance level, auto-cal, and power measurement (watts). Perform the brake pad adjustment any time the brake pads are replaced or any condition were the resistance is not performing correctly or the power measurement is not being correctly computed.
  • Page 20 wheel surface. Continue sliding the fixture over the brake pad and press into position. Note: It is recommended that a magnetic gap fixture (2x) be mounted on both the left and right brake pads before starting and while performing the brake pad gap adjust- ment procedure.
  • Page 21 4 Adjustment Procedures Brake Pad Adjustment 4. Apply maximum resistance, fully turn the resistance knob in the clockwise (+) direction. 5. Adjust the left and right brake pads so that the magnetic gap fixture tool touches the fly- wheel surface. Then fully tighten the 3 mm hex key fasteners (2x per pad). 6.
  • Page 22 IMPORTANT: The resistance knob must be set to the minimum resistance level to correctly perform the auto-cal function. The WATTS parameter will be incorrectly com- puted if the resistance knob is not set to minimum resistance level during auto-cal. b. Verify the measured WATTS at minimum and maximum resistance levels: Set the resistance to minimum.

  • Page 23: Drive Belt Tension And Tracking Adjustment

    (noises, pedal skip, fraying, etc.) while operating the bike. CAUTION: Improper belt tension and tracking adjustment will cause premature wear and may void the Precor Limited Warranty. Specifications System Component...
  • Page 24 4.  Place the belt tension gauge on the drive belt midway between the front and rear sprockets. Position the tension gauge so that the center tension tab rests on the belt tooth ridge and not in the gap between the teeth. Read and record the measured belt tension.
  • Page 25 4 Adjustment Procedures Drive Belt Tension and Tracking Adjustment 5. If the belt is under tension, remove the belt tension by alternately loosening the right and left 10 mm hex key belt tension adjustment nuts. Keep a small amount of belt tension so that the belt remains seated on the front and rear sprockets.
  • Page 26 7. Place the belt tension gauge on the drive belt midway between the front and rear sprock- ets Position the tension gauge so that the center tension tab rests on the belt tooth ridge and not in the gap between the teeth.
  • Page 27 4 Adjustment Procedures Drive Belt Tension and Tracking Adjustment 8. Incrementally and alternately tighten the left and right tension adjustment nuts so that the flywheel remains centered between the left and right fork weldments. Continue the adjustment process until the belt tension gauge reads, 60 +/- 5 lbs (27 */- 2 kgs).
  • Page 28 9. Remove the tension gauge. Then hand turn the crank to break-in the belt. Stop the belt, place the tension gauge onto the belt and remeasure the belt tension. Make sure the belt tension remains in spec 60 +/- 5 lbs (27 */- 2 kgs). Readjust the tension if out-of- spec.
  • Page 29 4 Adjustment Procedures Drive Belt Tension and Tracking Adjustment 1. Hand rotate the pedals and verify that the drive belt does not track either the left or right so that it rubs against the flywheel pulley left (inner) or right (outer) rims. If the drive belt rubs against the pulley inner or outer rims, adjust the tracking alignment to correct the issue: a.
  • Page 30 CAUTION: Damage to the belt edges and unusual noises will occur if the belt is not properly aligned and is rubbing against the sprocket inner or outer rims. 2. Tighten the left and right axle nuts, torque to 29.5 ft-lbs (40 Nm). 3.

  • Page 31: Generator Belt Tension Adjustment

    (noises, low charging voltages, etc.) while operating the bike. CAUTION: Improper belt tension adjustment will cause premature wear and may void the Precor Limited Warranty. Specifications System Component...
  • Page 32 Belt tension adjustment 4. Loosen the generator 4 mm hex key mounting bolt enough so that the generator can be moved forward and rearward. Do not remove the mounting bolt. 5. Slowly hand rotate the pedals and make sure the belt is correctly seated on the gen- erator and flywheel generator pulleys.
  • Page 33 4 Adjustment Procedures Generator Belt Tension Adjustment 7. Fully tighten the 4 mm generator mounting bracket bolt. 8. Ride and pedal the bike at high speed for several minutes and verify there are no issues with the belt (unusual noised etc.). 9.

  • Page 34: Bike Leveling Adjustment

    Bike Leveling Adjustment Use this procedure to level the bike. Make sure the bike is level and sits firmly on the floor before allowing anyone to use the bike. IMPORTANT: Place the unit on a flat surface. Rotating the adjustable feet does not compensate for extremely uneven surfaces.

  • Page 35: 5    Replacement Procedures

    5 Replacement Procedures 5    Replacement Procedures Replacement procedures provide you with the step-by-step instructions to remove and replace system components. Replacement Procedures "Battery Replacement" on page 30 "Belt Guard Cover Replacement" on page 34 "Brake Pad Replacement" on page 39 "Caliper Assembly Replacement" on page 44 "Drive Belt, Generator Belt, and Flywheel Replacement"...
  • Page 36 "Resistance Knob Replacement" on page 108 "Seat Assembly Replacement" on page 112 "Stabilizer Replacement" on page 114 See Also "Brake Pad Adjustment" on page 12 "Drive Belt Tension and Tracking Adjustment" on page 16 "Generator Belt Tension Adjustment" on page 24 "Bike Leveling Adjustment" on page 27...

  • Page 37: Battery Replacement

    5 Replacement Procedures Battery Replacement Battery Replacement (Spinner® Chrono™ Power models only) About This procedure provides instruction to determine the condition of the battery and replacement procedure. Specifications Battery Voltage Specification Battery Specification 6 VDC, 1.2 AH GOOD battery state* 5.8 - 6.6 VDC* LOW battery state* 5.5 - 5.7 VDC*...

  • Page 38: Battery Fuse

    1. While pedaling the bike, make sure the battery charging voltage is greater than 6 vdc (7.5 vdc max). Access the console service test menu, select the BAT VOLT parameter to read the battery charging voltage, see "Spinner® Chrono™ Console" on page 147.
  • Page 39 5 Replacement Procedures Battery Replacement 4. Cut the cable tie that is securing the battery to the cross member and remove the bat- tery. Installation procedure. 1. Place the battery on the cross member and secure with an 8" cable tie. 2.
  • Page 40 pedaling and verify that the voltage remains ≥ 5.8 vdc. If the battery voltage is low, start pedaling faster than 55 rpm to charge the battery until the non-pedaling voltage remains at ≥ 6 vdc (a new battery may need to be charged.). 4.

  • Page 41: Belt Guard Cover Replacement

    5 Replacement Procedures Belt Guard Cover Replacement Belt Guard Cover Replacement About This procedure provides instruction to remove and install the front and rear Belt Guard Covers. The front belt guard cover includes an access panel used to access the right tensioner nut and axle nut.
  • Page 42 hex key fastener last. Retain fastener hardware for installation. 2. Remove the front belt guard access panel by removing the one fastener using a 5 mm hex key. Retain fastener hardware for installation. 3. Remove the front belt guard cover by removing the 5 mm hex key (4x) fasteners.
  • Page 43 5 Replacement Procedures Belt Guard Cover Replacement 4. Position the crank arm to the 9 o'clock position and then carefully slide the front cover over the crank arm and pedal to remove. Retain fastener hardware for installation. Installation Instructions 1. Position the crank arm to the 9 o'clock position and then carefully slide the front cover over the pedal and crank arm.
  • Page 44 2. Position the cover over the frame cover mounting bolts and secure using the 5 mm hex key fasteners (4x). 3. Install the front cover access panel onto the front belt cover, insert the left side tabs first and close. Secure using the removed 5 mm hex key bolt (1x).
  • Page 45 5 Replacement Procedures Belt Guard Cover Replacement 4. Then install the rear (left side) belt guard cover , installing the center 4 mm hex key fastener (1x) first and then the three outer 5 mm hex key fasteners (3x). See Also "Replacement Procedures"...

  • Page 46: Brake Pad Replacement

    Brake Pad Replacement About This procedure provides instruction to remove and install the magnetic Brake Pads. The brake pads use opposed magnetic force to vary the flywheel resistance level and integ- rated caliper strain gauge to calculate the measured power in watts. The brake pads are moun- ted on the bottom of the left and right caliper.

  • Page 47: Specialized Tools

    5 Replacement Procedures Brake Pad Replacement Strong magnetic force The brake pads have a very strong magnetic force and attraction to the flywheel or any fer- romagnetic metal object. . The brake pads can easily be ripped from your grasp and snapped against the metal object damaging the pad.
  • Page 48 Removal 1. Remove all brake pad resistance by turning the resistance knob fully counterclockwise (-). 2. Mount a magnetic gap fixture onto both the left and right brake pads. Note: It is recommended that a magnetic gap fixture (2x) be mounted on both the left and right brake pads before starting the brake pad installation procedure. The fixture will help to prevent accidental damage to the brake pad and/or scratching the flywheel surface.
  • Page 49 5 Replacement Procedures Brake Pad Replacement 4. Repeat the procedure to remove the right brake pad. Installation 1. Mount a magnetic gap fixture onto the left and right brake pads. Note: It is recommended that a magnetic gap fixture (2x) be mounted on both the left and right brake pads before starting the brake pad removal procedure. The fixture will help to prevent accidental damage to the brake pad and/or scratching the flywheel sur- face.
  • Page 50 2. Adjust the brake pad gap and verify the resistance knob operation, see "Brake Pad Adjustment" on page 12. 3. Verify the bike operation per "Operation Verification Checklist" on page 7 and return to service. See Also "Replacement Procedures" on page 28...

  • Page 51: Caliper Assembly Replacement

    5 Replacement Procedures Caliper Assembly Replacement Caliper Assembly Replacement About This procedure provides instruction to remove and install the Caliper assembly. There are sep- arate replacement procedures, one for the Spinner® Chrono™ Power and one for the Spin- ner® Climb™ models. Caliper replacement requires removal of the flywheel, drive belt, and generator belt.

  • Page 52: Specialized Tools

    Specialized Tools Tool Part Number   Qty   Magnetic Gap Fixture PPP000000058248101 kit* Cable Puller (fish tape) PPP000000058248101 Note: *  Each Magnetic Gap Fixture kit contains two (2x) Magnetic Gap Fixture tools.               Only one kit is required to complete the brake pad adjustment. Replacement Procedures ®...
  • Page 53 5 Replacement Procedures Caliper Assembly Replacement Removal 1. Remove front and rear belt guard covers, see "Belt Guard Cover Replacement" on page 34. 2. Cut the four cross member cable-ties (4x) that secure the strain gauge cable to the cross member. Discard the cable ties. 3.
  • Page 54 5. Remove the strain gauge cable from the cable clip located on the upper left fork frame weldment (next to the left caliper).
  • Page 55 5 Replacement Procedures Caliper Assembly Replacement 6. Attach a cable puller (or fish tape) to the LPCA connector end of the cable. 7. Remove the cable from the inside of the right fork frame weldment. Pull from the top access hole feeding both the cable and cable puller upward out of the frame. Dis- connect the cable puller from the cable.
  • Page 56 Installation 1. Install the caliper assembly : a. :Position the caliper assembly onto the frame weldment mounting bolts and secure using the two previously removed 4 mm hex key bolts (2x) and washers (2x). For Spinner® Chrono™ Power models, install the caliper assembly so that the strain gauge is located on the left side of the frame.
  • Page 57 5 Replacement Procedures Caliper Assembly Replacement assembly plate screw and fully tighten the fasteners. Note: Make sure that the resistance knob rod end bushing is seated over the caliper plate screw. 2. Reinstall the strain gauge cable through the right fork frame weldment (Spinner® Chro- no™...
  • Page 58 e. Lightly pull the strain gauge and data COMM cables exiting from the lower frame cable access hole until snug. Then use a new push mount cable-tie to secure both cables to the frame weldment.

  • Page 59: Replacement Procedure - (Spinner® Climb™ Models Only)

    5 Replacement Procedures Caliper Assembly Replacement 3. Reinstall the flywheel, see "Drive Belt, Generator Belt, and Flywheel Replacement" on page 66. 4. Replace the front and rear belt guard covers, see "Belt Guard Cover Replacement" on page 34 5. Verify the bike operation per "Operation Verification Checklist"...
  • Page 60 Installation 1. Install the caliper assembly : a. :Position the caliper assembly onto the frame weldment mounting bolts and secure using the two previously removed 4 mm hex key bolts (2x) and washers (2x). For Spinner® Chrono™ Power models, install the caliper assembly so that the strain gauge is located on the left side of the frame.
  • Page 61 5 Replacement Procedures Caliper Assembly Replacement assembly plate screw and fully tighten the fasteners. Note: Make sure that the resistance knob rod end bushing is seated over the caliper plate screw. 2. Reinstall the flywheel, see "Drive Belt, Generator Belt, and Flywheel Replacement" on page 66.

  • Page 62: Data Comm Cable Replacement

    Data COMM Cable Replacement Applies To: (Spinner® Chrono™ Power models only) About This procedure provides instruction to remove and install the Data COMM cable. Data COMM cable routing Starting from the console connection, the data COMM cable enters and travels down the handle bar post continuing down the inside of the right fork weldment exiting the lower cable access hole located next to the upper edge of the cross member.

  • Page 63: Specialized Tools

    5 Replacement Procedures Data COMM Cable Replacement Specialized Tools Tool Part Number   Qty   Magnetic Gap PPP000000058248101 Fixture kit* Cable Puller General purpose (fish tape) Note: *  Each Magnetic Gap Fixture kit contains two (2x) Magnetic Gap Fixture tools.               Only one kit is required to complete the brake pad adjustment. Procedure Review entire procedure before starting.
  • Page 64 3. Remove the flywheel which also requires removing the LPCA board, the cross mem- ber, drive belt, and generator belt, see "Drive Belt, Generator Belt, and Flywheel Replacement" on page 66. 4. Carefully cut and remove the data COMM and strain gauge cables from the lower right fork weldment push-mount-cable-tie (1x).
  • Page 65 5 Replacement Procedures Data COMM Cable Replacement 6. Remove the data COMM cable from the handlebar assembly: a. Remove the two 2.5 mm hex key bolts (2x) and remove the handlebar post cable cover. b. Attach a cable puller to the console connector end of the data COMM cable. c.
  • Page 66 the handlebar assembly. 7. Remove the data COMM cable from the inside of the right fork weldment: a. Attach a cable puller to the LPCA connector end of the data COMM cable. b. Gently pull the cable and attached cable puller upward through the inside of the right fork weldment and out of the top of the handlebar post weldment.
  • Page 67 5 Replacement Procedures Data COMM Cable Replacement Installation 1. Reinstall the data COMM cable through the inside of the right fork weldment. a. Attach the LPCA connector end of the data COMM cable to the previously installed cable puller at the top of the handlebar post weldment. b.
  • Page 68 c. Disconnect the cable puller from the cable. 2. Secure the data COMM and strain gauge cables to the inside of the lower right fork weld- ment: a. Insert a new push-mount-cable-tie into the lower right fork cable tie mounting hole located next to the lower right fork weldment cable access hole.
  • Page 69 5 Replacement Procedures Data COMM Cable Replacement c. Secure both the data COMM and strain gauge cables to inside of the lower right fork weldment using the lower push-mount-cable-tie. 3. Reinstall the flywheel which also reinstalls the LPCA board, the cross member, drive belt, and generator belt, see "Drive Belt, Generator Belt, and Flywheel Replacement"...
  • Page 70 5. Reinstall the data COMM cable in the handlebar assembly weldment: a. Connect the data COMM cable console connector to the cable puller exiting from the bottom of the handlebar post. b. Lift the handlebar post next to the top of the frame neck weldment. c.
  • Page 71 5 Replacement Procedures Data COMM Cable Replacement Do not fully tighten the fasteners until after the console has been installed. 6. Position the console on the handlebars and connect the data COMM cable. Adjust the cable slack and reinstall the console backplate, secure using the four hex key bolts (4x) ®...
  • Page 72 8. Ride the bike and verify that the console powers on and is operating normally. Make sure the WATTS, RPM, TIME, DISTANCE, and INTERVAL metrics are reporting correct information. Access the service mode and review the ERROR LOG. Make sure there are no current logged error code 30s "Communication issue with the LPCA".

  • Page 73: Drive Belt, Generator Belt, And Flywheel Replacement

    5 Replacement Procedures Drive Belt, Generator Belt, and Flywheel Replacement Drive Belt, Generator Belt, and Flywheel Replacement Applies To: (Spinner® Chrono™ Power models only) About This procedure provides instruction to remove and install the Drive Belt, Generator Belt, and Flywheel. Drive belt and generator belt replacement requires removal of the flywheel so this one pro- cedure provides removal and installation procedures for the flywheel, drive belt and generator belt.

  • Page 74: Procedure

    Procedure Review entire procedure before starting. Removal procedure 1. Remove the front and rear belt guard covers, see "Belt Guard Cover Replacement" on page 34. 2. Remove all brake pad resistance by turning the resistance knob fully counterclockwise (-). 3. Remove the left and right brake pads, see "Brake Pad Replacement"...
  • Page 75 5 Replacement Procedures Drive Belt, Generator Belt, and Flywheel Replacement 6. Lift the Mylar moisture barrier and disconnect the Generator (J5) cable connector, then the Data COMM (J3) cable connector and last the Strain Gauge (J1) cable connector. 7. Remove the two 4 mm hex key LPCA bracket mounting bolts (2x) and washers (2x) and remove the LPCA bracket.
  • Page 76 9. Remove drive belt tension by alternately loosening the left and right tension adjustment nuts using a 10 mm wrench. Then fully remove the nuts and retain for installation. 10. Cut the back three cable-ties that secure the generator, data COMM, strain gauge (Spin- ner®...
  • Page 77 5 Replacement Procedures Drive Belt, Generator Belt, and Flywheel Replacement 12. Remove the flywheel (weight: 26 lbs (12 kgs)) by carefully sliding it rearward off the frame axle brackets. WARNING: Personal injury is possible while removing/installing the flywheel. The flywheel weighs approximately 26 lbs (12 kgs) and can pinch or fall onto fingers or other extremities causing personal injury.
  • Page 78 1. Place the drive belt over the pedals and rest it on the crank. 2. Position the flywheel in front of the flywheel axle bracket. Then put the generator belt onto the flywheel generator pulley and the drive belt onto the flywheel drive pulley. IMPORTANT: The generator and drive belts must be placed onto the flywheel gen- erator and drive belt pulleys before installing the flywheel onto the axle mounting bracket.
  • Page 79 5 Replacement Procedures Drive Belt, Generator Belt, and Flywheel Replacement in the tension adjustment bracket. TIP: You may find it is easier to stand the bike frame on its front (resting on the front stabilizer and handlebar) and then installing the flywheel into the axle mounting slots. The weight of the flywheel will help to slide the flywheel into the mounting slots.
  • Page 80 6. Reinstall the frame cross member using a 6 mm hex key to secure the four bolts (4x) and washers (4x). Fully tighten the four fasteners.
  • Page 81 5 Replacement Procedures Drive Belt, Generator Belt, and Flywheel Replacement 7. Place the LPCA bracket into position on the frame cross member bracket and secure using the two 4 mm hex key bolts (2x) and washers (2x). Fully tighten the fasteners. 8.
  • Page 82 9. Fold the Mylar moisture barrier over the front of the LPCA and route the battery cable over the moisture barrier and reconnect to the LPCA battery cable connector (J4) Note: The zip tie that removed and used to hold the Mylar moisture barrier over the LPCA board is not required to be replaced.
  • Page 83 5 Replacement Procedures Drive Belt, Generator Belt, and Flywheel Replacement 10. (Spinner® Chrono™ Power models only) If the cross member cable ties were removed, replace them with new cable ties to secure the generator, data COMM, strain gauge , and battery interface cables to the cross member (4x locations).
  • Page 84 Tension Adjustment" on page 24 15. Install the left and right brake pads and adjust the brake pad gap to specification, see "Brake Pad Replacement" on page 39. 16. Replace front and rear belt guard covers in reverse order, see "Belt Guard Cover Replacement"...

  • Page 85: Generator Assembly Replacement

    5 Replacement Procedures Generator Assembly Replacement Generator Assembly Replacement Applies To: (Spinner® Chrono™ Power models only) About This procedure provides instruction to remove and install the Generator Assembly. Specifications System Component Specification Generator Belt Tension 1/2 in (1.3 cm) up/dwn travel Generator Output Voltage: approx.
  • Page 86 4. Loosen the generator 4 mm hex key mounting bolt enough so that the generator can be moved forward. Move the generator forward to loosen tension and remove the belt off the generator pulley. 5. Remove the 4 mm hex key bolt and washer mounting fasteners and remove the gen- erator.
  • Page 87 5 Replacement Procedures Generator Assembly Replacement generator voltage and current outputs: GEN VOLT:   approx. 9 Vac @ 60 rpm (voltage will increase as rpms increase) GEN AMP: approx. 0.4 amps @ 60 rpm (current will increase as rpms increase) 7. Reinstall the front and rear drive belt covers, see "Belt Guard Cover Replacement"...

  • Page 88: Handlebar Assembly Replacement

    Handlebar Assembly Replacement About This procedure provides instruction to remove and install the Handlebar Assembly. Procedure Review entire procedure before starting. Removal Instructions 1. (Spinner® Chrono™ Power models only) Remove the four 4 mm (4x) hex key bolts and remove the console backplate cover. Dis- connect the data COMM cable from the console and set the console aside, see the ®...
  • Page 89 5 Replacement Procedures Handlebar Assembly Replacement 3. Slide the handlebar forward enough to allow access to handlebar assembly travel limit set screw located at the back end of the handlebar post slider. Remove the rear slider travel limit set screw using a 2.5 mm hex key. Retain fastener hardware for installation. 4.
  • Page 90 2. Slide the handlebar forward enough to allow access to handlebar assembly travel limit set screw located at the back end of the handlebar post slider. Reinstall the rear slider travel limit set screw using a 2.5 mm hex key. 3.

  • Page 91: Handlebar Adjustment Knob Replacement

    5 Replacement Procedures Handlebar Adjustment Knob Replacement Handlebar Adjustment Knob Replacement About This procedure provides instruction to remove and install the Handlebar Adjustment Knob. Procedure Review entire procedure before starting. Removal Instructions 1. Remove the handlebar assemble, see "Handlebar Assembly Replacement" on page 81.
  • Page 92 3. Then use a thin wall deep 5/16' socket to hold the locking nut from turning while loosen- ing the adjustment knob to remove. Keep light pressure on the adjustment knob while loosening. Installation instructions 1. Reinstall the handlebar adjustment knob in reverse order. 2.

  • Page 93: Handlebar Post Removal

    5 Replacement Procedures Handlebar Post Removal Handlebar Post Removal About This procedure provides instruction to remove and install the handlebar Post. For Spinner® Chrono™ Power models, the data COMM cable must be removed from the inside the handle bar post weldment to remove the handlebar post. Select procedure: Spinner®...
  • Page 94 c. Pull the handlebar height adjust pop pin and carefully lift the handlebar post from the top of the frame weldment. While holding the handlebar assembly, gently pull the data COMM cable and attached cable puller from the inside of the handlebar post.
  • Page 95 5 Replacement Procedures Handlebar Post Removal 1. Reinstall the data COMM cable in the handlebar assembly weldment: b. Connect the data COMM cable console connector to the cable puller exiting from the bottom of the handlebar post. c. Lift the handlebar post near to the top of the frame neck weldment. d.

  • Page 96: Procedure - (Spinner® Climb™ Models Only)

    3. Make final adjustments to the data COMM cable slack and fully tighten the fasteners handlebar post cable cover. 4. Ride the bike and verify that the console powers on and is operating normally. Make sure the WATTS, RPM, TIME, DISTANCE, and INTERVAL metrics are reporting correct information.
  • Page 97 5 Replacement Procedures Handlebar Post Removal Installation 1. Reinstall the handlebar post into the frame neck weldment 2. Pull the handlebar height adjust pop pin to secure the post and to adjust the handlebar height, see the Operator's Guide for more information.
  • Page 98 3. Verify the bike operation per "Operation Verification Checklist" on page 7 and return to service. See Also "Replacement Procedures" on page 28...

  • Page 99: Lpca Board Replacement

    5 Replacement Procedures LPCA board Replacement LPCA board Replacement Applies To: (Spinner® Chrono™ Power models only) About This procedure provides instruction to remove and install the LPCA (Lower PCA) board. LPCA Interface Cable Connections Lower PCA board...

  • Page 100: Lpca Status Leds

    Interface Cables Generator (J5) Strain Gauge(J1) Data COMM(J3) Battery (J4) Optional AC/DC Power Adapter(J1) LPCA Status LEDs LED Description Logic microprocessor ON (flashes green) 3.3 vdc supply (red) 5 vdc supply (red) 9 vdc supply (red) (while pedaling or AC/DC adapter plugging in) Battery Charging (red)  ON ≥...

  • Page 101: Procedure

    5 Replacement Procedures LPCA board Replacement Procedure Review entire procedure before starting. CAUTION: Electronic components can easily be damaged by electrostatic discharge (ESD). Always use properly grounded anti-static wrist-strap and anti-static mat when handling or servicing printed circuit boards. Removal Instructions 1.
  • Page 102 5. Lift the Mylar moisture barrier and disconnect the Generator (J5) cable connector, then the Data COMM (J3) cable connector and last the Strain Gauge (J1) cable connector. CAUTION: Do not cut the Mylar moisture barrier to either remove or install the strain gauge cable connector.
  • Page 103 5 Replacement Procedures LPCA board Replacement Installation Instructions 1. Position the Mylar moisture barrier and LPCA board onto the LPCA mounting bracket. Reinstall the five 4 mm hex key bolts and fully tighten.
  • Page 104 2. Reconnect the Strain Gauge (J1) cable connector, then the Data COMM (J3) cable connector and last the Generator (J5) ,cable connector. Do not cut the Mylar moisture barrier to connect the Strain Gauge (J1) cable connector. CAUTION: Do not cut the Mylar moisture barrier to either remove or install the strain gauge cable connector.
  • Page 105 5 Replacement Procedures LPCA board Replacement 2. Fold the Mylar moisture barrier over the front of the LPCA board and then route the battery cable over the moisture barrier and reconnect to the LPCA battery cable con- nector (J4) , see the following diagram.
  • Page 106 Note: Do not install a zip tie to hold the moisture barrier cover over the LPCA board. 3. Reconnect the battery cable Red wire to the Positive (+) battery terminal and then the Black wire to the Negative (-) battery terminal, see "Battery Replacement"...

  • Page 107: Pedal Replacement

    5 Replacement Procedures Pedal Replacement Pedal Replacement About This procedure provides instruction to remove and install the Pedals. ® The pedals are dual-sided SPD compatible pedal attached to oversized crank arms utilizing the patented Morse taper connections. Available Movies (Internet Only) Pedal Replacement tutorial video.
  • Page 108 Removal Instructions 1. Position the crank arm and right pedal to the 12 o'clock position. 2. Remove the pedal mounting bolt using an 8 mm hex key. Retain fastener hardware for installation. 3. Use a crank puller (recommended PN X-Tools Crank Extractor or similar tool) to press the pedal out of the crank arm and remove.
  • Page 109 5 Replacement Procedures Pedal Replacement 4. Repeat steps to remove the left pedal. Installation instructions: 5. Insert the right pedal into the right crank arm. Seat the pedal by using a rubber mallet to lightly tap the center of the pedal into the crank arm.
  • Page 110 6. Secure pedal with the pedal mounting bolt using an 8 mm hex key, torque to 33 ft-lb (45 N•m).
  • Page 111 5 Replacement Procedures Pedal Replacement 8. Repeat installation steps to install the left pedal. 9. Verify the bike operation per "Operation Verification Checklist" on page 7 and return to service See Also "Replacement Procedures" on page 28...

  • Page 112: Crank Arm Replacement

    Crank Arm Replacement About This procedure provides instruction to remove and install the Crank Arm. Specifications System Component Specification Crank arm fastener 33 ft-lb (45 N•m) Specialized Tools Tool Part Number   Qty   Crank Extractor X-Tools Crank Extractor) (used to remove pedal) similar Medium strength threadlocker Loctite 243...
  • Page 113 5 Replacement Procedures Crank Arm Replacement 1. Use a crank puller (recommended Park Tool CCP-222 to pull the crank arm from the bottom bracket bearing axle and remove. 2. Remove the bottom bracket cover. Note: Early production bikes may not include the bottom bracket cover, see service bulletin SB.SBK.20160825 for information.
  • Page 114 1. Install bottom bracket cover onto the bottom bracket axle over the axle nut. 2. Install the left crank arm onto the left side bottom bracket axle. Seat the crank arm by using a rubber mallet to lightly tap the crank arm onto the bottom bracket axle. 3.

  • Page 115: Resistance Knob Replacement

    5 Replacement Procedures Resistance Knob Replacement Resistance Knob Replacement About This procedure provides instruction to remove and install the Resistance Knob assembly. The resistance knob is part of the Brake Rod Assy. Replace the Brake Rod Assy to replace the Resistance Knob Procedure Review entire procedure before starting.
  • Page 116 2. Use a 21 mm open end wrench to loosen the Fixed Nut Bushing while lifting the Brake Rod Assy and Resistance Knob from the bike frame. Note: The bushing at the end of the brake rod may catch on the caliper preventing the rod from being lifted out of the frame weldment.
  • Page 117 5 Replacement Procedures Resistance Knob Replacement 5. Carefully reinstall the Brake Rod Assy in the bike frame. Make sure the bushing at the end of the Brake Rod fits over the Power Brake Assy - Caliper Adjustment Screw.
  • Page 118 6. Tighten the Brake Rod Assy - Fixed Nut Bushing. 7. Set the resistance to minimum. 8. Start pedaling the bike greater than 55 rpm while increasing the resistance level to max- imum and returning to minimum resistance. Verify smooth resistance operation from minimum to maximum levels. Verify that at maximum resistance, the pedal resistance was very strong.

  • Page 119: Seat Assembly Replacement

    5 Replacement Procedures Seat Assembly Replacement Seat Assembly Replacement About This procedure provides instruction to remove and install the Seat Assembly which includes: the Seat, Seat Slider Assembly, and Seat Post. Procedure Review entire procedure before starting. Seat replacement instructions 1.
  • Page 120 5. Reinstall the replacement seat slider in reverse order. 6. Verify the seat slider forward/reverse travel is smooth and is blocked from sliding off the seat post. 7. Verify that the seat fwd/rev adjustment knob works properly and return to service. Seat post replacement instructions 1.

  • Page 121: Stabilizer Replacement

    5 Replacement Procedures Stabilizer Replacement Stabilizer Replacement About There is a front and rear stabilizer, select the procedure for your application. "Front Stabilizer Replacement" on the facing page "Rear Stabilizer Replacement" on page 118...

  • Page 122: Front Stabilizer Replacement

    Front Stabilizer Replacement About This procedure provides instruction to remove and install the Front Stabilizer. Specifications System Component Specification Stabilizer fastener Torque 15.6 ft-lbs (21 N•m) Procedure Review entire procedure before starting. Removal Instructions 1. Place a soft mat under the bike frame and stand the bike frame on its back resting on the rear stabilizer and seat rail.
  • Page 123 5 Replacement Procedures Stabilizer Replacement 3. Remove the front stabilizer by removing the two 6 mm hex key mounting bolts (2x) and washers (2x). Retain fastener hardware for installation. NOTE: The stabilizer attachment bar can slide out of the weldment mounting bracket.
  • Page 124 2. Position the front stabilizer onto the frame and secure using the two 6 mm hex key sta- bilizer mounting bolts (2x) and washers (2x) , torque to 15.6 ft-lbs (21 N•m). CAUTION: Do not over tighten fasteners. The bolt heads can snap off if over tightened.

  • Page 125: Rear Stabilizer Replacement

    5 Replacement Procedures Stabilizer Replacement Rear Stabilizer Replacement About This procedure provides instruction to remove and install the Rear Stabilizer. Specifications System Component Specification Stabilizer fastener Torque 15.6 ft-lbs (21 N•m) Procedure Review entire procedure before starting. Removal Instructions 1. Place a soft mat under the bike frame and stand the bike frame on its rear resting on the front stabilizer and handlebar.
  • Page 126 3. Remove the rear stabilizer by removing the two 6 mm hex key mounting bolts (2x) and washers (2x). Retain fastener hardware for installation. NOTE: The stabilizer attachment bar can slide out of the weldment mounting bracket. Make sure the attachment bar remains in position and not lost between removal and installation.
  • Page 127 5 Replacement Procedures Stabilizer Replacement 1. Center the stabilizer attachment bar into the rear stabilizer weldment bracket. 2. Position the rear stabilizer onto the frame weldment and secure using the two 6 mm hex key stabilizer mounting bolts (2x) and washers (2x) , torque to 15.6 ft-lbs (21 N•m). CAUTION: Do not over tighten fasteners.

  • Page 128: 6    Troubleshooting

    6    Troubleshooting About This section contains troubleshooting information to help you identify, isolate, and resolve com- ponent and system issues. Review the Introduction To Troubleshooting section below to learn about the troubleshooting process, troubleshooting best practices, and other pertinent information that will help you effi- ciently troubleshoot issues and return the equipment to service.
  • Page 129 Then use the Error Code Troubleshooting Guide to help resolve the reported error code. Also, when calling Precor customer service for assistance, refer to the Error Log and report any logged error codes to the customer support representative.
  • Page 130 Connect website and browse the list of current service bulletins. 7) Verify service bulletins Go to the Precor Connect website and browse the list of machine service bulletins and tech- tips. Incorporate any missing service bulletin repairs and in particular any bulletins that may fix...

  • Page 131: Service And Diagnostic Menus

    Informational Settings: The Information Settings contain the information required when you contact Precor Customer Support including serial numbers, software program ver- sions, odometer, and model numbers. Operational Information: The operating Torque, WATTS, and RPM values.

  • Page 132: Menu Navigation

    Menu Navigation Menu Navigation The menus are accessed sequentially by scrolling through the list of menus in a forward or reversed direction using the following console buttons. You cannot directly access a menu item.

  • Page 133: Service And Settings Menus

    6 Troubleshooting Service and Diagnostic Menus Service and Settings Menus Service and Settings Menus ® Note: Refer to the SPINNER CHRONO™ CONSOLE "Operators Guide", at Oper- ator's Guide, for the latest console menu information. Club Parameter Settings Use the Club Settings to choose the type of settings and information available to the exer- cisers.
  • Page 134 Information Settings Parameters The Information Settings contain the information required when you contact Precor Customer Support including serial numbers, software program versions, odometer and error log sum- mary, and model numbers. Note:  It is possible to record system information and the error log on a properly...
  • Page 135 6 Troubleshooting Service and Diagnostic Menus Operational Information Service Tests Perform tests to help you troubleshoot systems including torque, WATTS, RPM, battery and generator voltage and amps, and display elements. Press the white button to move from one test to the next.

  • Page 136: Error Log

    Error Log Error Log Go to "Error Log" on page 134.

  • Page 137: Active Status Light (Asl)

    6 Troubleshooting Active Status Light (ASL) Active Status Light (ASL) (Spinner® Chrono™ Power models only) About The Active Status Light (ASL ) is a service and maintenance status light located on the back of the Spinner® Chrono™ console. The ASL provides a visual indication of the machine oper- ational status.

  • Page 138: Asl States

    The console lower control board (UPCA ) determines the ASL state using inputs from the error log and maintenance counter. During active operation (workout in progress) or during the pause state, the console transmits the ASL state to the lower control board (LPCA Error code operation: A logged system error code will cause the ASL to begin pulsing yellow.

  • Page 139: Asl Setup And Test

    6 Troubleshooting Active Status Light (ASL) ASL Setup and Test ASL Setup and test Menu Path: service menu > select ASL SETUP Range: ON, OFF, YELLOW ON, BLUE ON ASL SETUP is used to switch ON or OFF the ASL indicator light for all state conditions and to test the ASL yellow and blue LEDs.
  • Page 140 Clearing a pulsing yellow state An ASL pulsing yellow state is triggered when an error code event occurs and is logged. To clear a pulsing yellow state, the error condition causing the ASL pulsing yellow must first be resolved either manually or the machine may resolve and self-clear the issue. A manually or machine self-cleared error code will change the ASL state from pulsing yellow to the solid yel- low state.

  • Page 141: Error Log

    Then use the Error Code Troubleshooting Guide to help resolve the reported error code. Also, when calling Precor customer service for assistance, refer to the Error Log and report any logged error codes to the customer support representative.
  • Page 142 Instruction to download the stored error log codes 1. Format a USB drive (must be less than 32 G bits) with the following folder structure: Folder structure: C:\Precor\SBK\Log 2. Insert the formatted USB drive into the console USB port. 3. Select the console USB LOGS menu. Wait until the console recognizes the USB drive and the blue button lights up.

  • Page 143: System Troubleshooting Procedures

    6 Troubleshooting System Troubleshooting Procedures System Troubleshooting Procedures About System troubleshooting procedures provide step by step procedures to help troubleshoot and resolve issues with the bike. Go to the system troubleshooting procedure that best fits the iden- tified system or component with an issue. Available procedures "Belt Drive Issues"...

  • Page 144: Belt Drive Issues

    Belt Drive Issues Applies To All belt drive spinner series bikes. Issues Issues related to the belt drive bikes: ISSUE CAUSE SOLUTION Excessive Belt tension out- Verify and adjust belt tension, see "Drive Belt Ten- drive belt of-spec. sion and Tracking Adjustment" on page 16.

  • Page 145: Resistance Issues

    6 Troubleshooting System Troubleshooting Procedures Resistance Issues Applies To All Spinner Series Bikes Issue Increasing the resistance knob does not apply typical or no increased resistance to the fly- wheel. Cause The brake pad-flywheel gap is out of specification. Damaged brake pads. The resistance knob shaft mechanism has failed and is not adjusting the caliper brake pad arms.

  • Page 146: Eratic Power (Watts) Measurements

    A service call will identify the cause and a Precor service technician will be able to restore the bike to a fully functional condition. Be sure to contact service@precor.com with any service needs.
  • Page 147 6 Troubleshooting System Troubleshooting Procedures...

  • Page 148: 7    Preventive Maintenance

    Precor Preventative Maintenance Plan Precor offers a Preventative Maintenance Service Plan that uses Precor-certified technicians to perform the equipment regularly scheduled weekly, monthly, quarterly, and semi-annual maintenance tasks.

  • Page 149: 8    Parts

    It is recommended that you go to the servicer partners Precor Connect website to view the most current parts information including the Exploded View Diagram and Parts Identification List .

  • Page 150: Exploded View Diagram

    Exploded View Diagram Refer to the servicer partners Precor Connect website to view the most current inform- ation.

  • Page 151: Parts List

    8 Parts Parts List Parts List Refer to the servicer partners Precor Connect website to view the most current inform- ation.

  • Page 153: 9    Consoles

    9 Consoles About 9    Consoles About ® The self-powered Spinner Chrono™ Power bike models use the Spinner® Chrono™ console ® ® and the non-powered Spinner Climb™ models use the Spinning Studio Console. Select the link for console service and maintenance information: "Spinner®...

  • Page 154: Spinner® Chrono™ Console

    Informational Settings: The Information Settings contain the information required when you contact Precor Customer Support including serial numbers, software program versions, odo- meter and error log summary, and model numbers. Operational Information: The operating Torque, WATTS, and RPM values.

  • Page 155: Powering On The Console

    9 Consoles Spinner® Chrono™ Console Features Self-Powered Console: The console is powered from the bike generator and does not require batteries. The backup battery is used to power the console for 90 seconds after the pedals stop. USB port: The console provides a USB port located on the top back of the console to update software ANT+ and bluetooth connectivity: The console supports ANT+ (2.4 GHZ) and...

  • Page 156: Installation And Removal

    Installation and Removal ® For installation and removal instructions, see the SPINNER CHRONO™ CONSOLE "Oper- ators Guide", see Operator's Guide.

  • Page 157: Service/Setup Menu Access

    9 Consoles Spinner® Chrono™ Console Service/Setup Menu Access Menu Navigation The menus are accessed sequentially by scrolling through the list of menus in a forward or reversed direction using the following console buttons. You cannot directly access a menu item.

  • Page 158: Menus And Settings

    Menus and Settings ® Note: Refer to the SPINNER CHRONO™ CONSOLE "Operators Guide", at Oper- ator's Guide, for the latest console menu information. Club Settings Parameters Use the Club Settings to choose the type of information accessible to the exercisers.
  • Page 159 9 Consoles Spinner® Chrono™ Console Information Settings Parameters The Information Settings contain the information required when you contact Precor Customer Support including serial numbers, software program versions, odometer and error log sum- mary, and model numbers. Note:  It is possible to record system information and the error log on a properly...

  • Page 160: Error Log Information

    Operational Information Service Tests Perform tests to help you troubleshoot systems including torque, WATTS, RPM, battery and generator voltage and amps, and display elements. Press the white button to move from one test to the next. Error Log Information Accessing the Error Log Select the service menu ERROR LOG menu to access the error log information.
  • Page 161 Spinner® Chrono™ Console 1. Format a USB drive (must be less than 32 G bits) with the following folder structure: Folder structure: C:\Precor\SBK\Log 2. Insert the formatted USB drive into the console USB port. 3. Select the console USB LOGS menu. Wait until the console recognizes the USB drive and the blue button lights up.

  • Page 162: Spinning® Studio Console

    Studio Console is used on the Spinner Climb™ indoor cycle. This console is ® ® ® also used on Precor Spinner Ride™, Spinner Shift™, and Spinner Rally™ model indoor cycles.  Refer to the SPINNING STUDIO "Owner's Manual" for the latest console install- ation, use, and service information.

  • Page 163: Cadence (Rpm) Sensor Installation

    9 Consoles Spinning® Studio Console Cadence (RPM) sensor installation The Cadence sensor is battery operated and uses a CR2032 lithium coin cell battery. For instructions to install the cadence sensor, see the Cadence Sensor Installation chapter in the Operators Guide , see Operator's Guide.

  • Page 164: Appendix A : Edition Information

    No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and writ- ten consent from Precor Incorporated as governed by United States and international copy- right laws.

  • Page 165: Appendix B : Notices And Safety

    Precor shall not be liable for errors or for incid- ental or consequential damages in connection with the furnishing, use, or performance of this document or of any information contained herein.
  • Page 166 B Appendix B: Notices and Safety instructions. Warning WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in per- sonal injury or death. Do not proceed beyond a WARNING notice until the indicated conditions are fully understood.

This manual is also suitable for:

Spinner climb

Table of Contents

Save PDF
