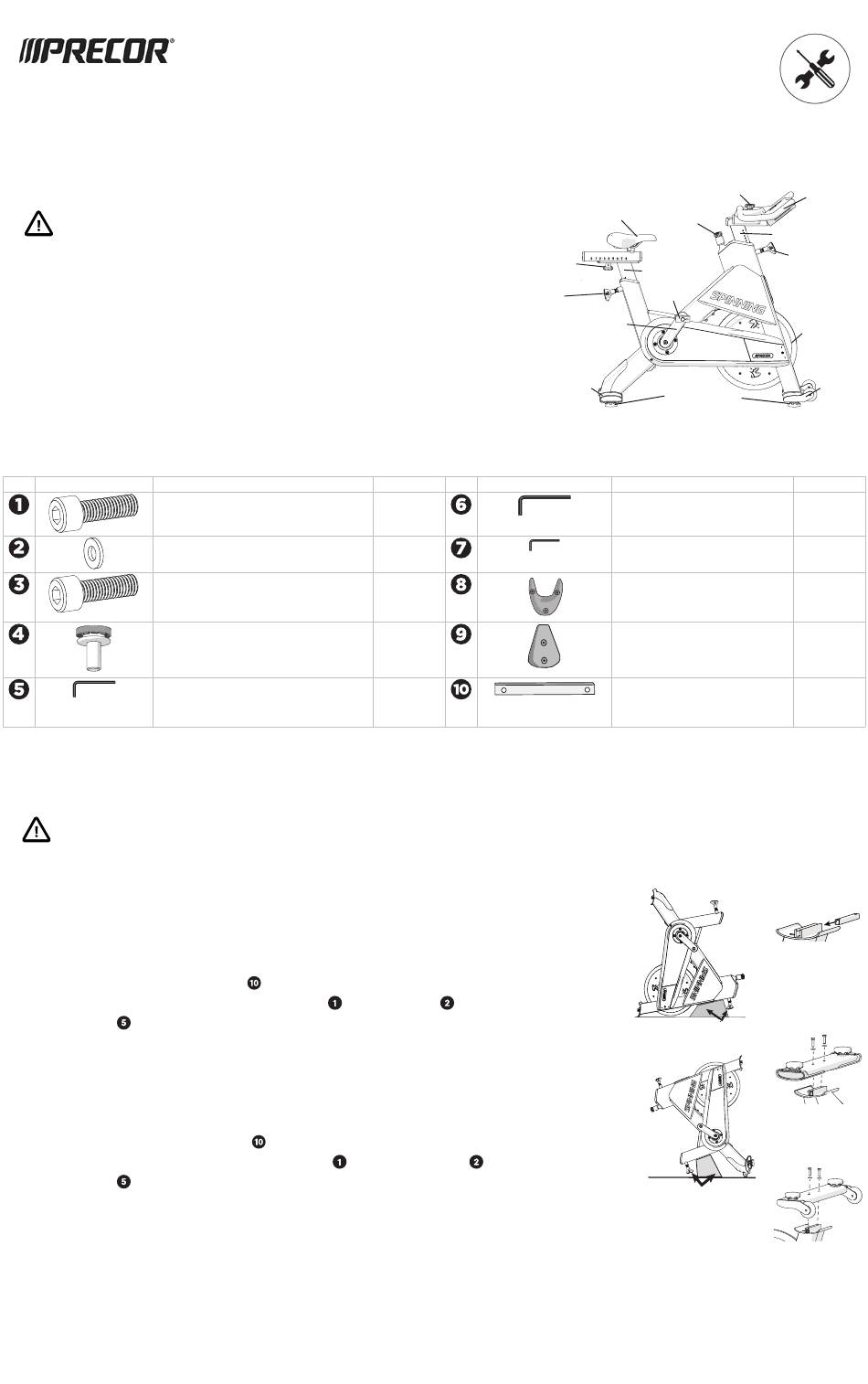

Precor Spinner Chrono Assembly Manual

Spinner® Chrono™ Power and Spinner® Climb™ Bike Assembly Guide
To assemble your equipment, follow the steps in the order listed in this assembly guide. For
more product information, visit us at www.precor.com.
CAUTION
At least two people are required to assemble the equipment. DO NOT
attempt assembly by yourself.
Assembly requirements
When assembling the bike, we recommend you:
▪ Unpack the box and assemble the equipment close to where you plan to use it.
▪ Assemble and operate the equipment on a solid, level surface.
▪ Leave a minimum of 0.5 m (19.7 in.) on at least one side of the bike and 0.5 m (19.7 in.)
behind or in front of the bike.

Hardware kit

Component
Socket head bolt (M8 x 30 mm)
Flat washer (8 mm)
Socket head bolt (M3 x 8 mm)
Socket head bolt (M8 x 16 mm)
Hex key (6 mm)
Begin Assembly
Remove the following parts from the packaging: handlebar assembly, handlebar post, hardware kit, product documentation, seat assembly, seat post,
and spare parts.
CAUTION
Damage to the bike during assembly is not covered by the Precor Limited Warranty.
During assembly, you must protect the handlebar and seat adjustment pop-pin threaded stems from damage.
To attach the rear stabilizer:
1. Stand the bike frame on its front end (toward flywheel) and place a piece of packaging foam under the bike
frame (Figure 1) to protect the handlebar adjustment pop-pin stem from damage.
2. Remove the packaging from the rear stabilizer and gently pry off the plastic protection plate from the
frame. Be careful not to chip the paint.
3. Slide the rear stabilizer attachment bar
4. Attach the rear stabilizer to the frame using two bolts
Using a hex key , tighten to 15.6 ft-lb (21.2 N-m).
To attach the front stabilizer:
1. Stand the bike frame on its back end and place a piece of packaging foam under the bike frame (Figure 4) to
protect the seat adjustment pop-pin stem from damage.
2. Remove the packaging from the front stabilizer and gently pry off the plastic protection plate from the
frame. Be careful not to chip the paint.
3. Slide the front stabilizer attachment bar
4. Attach the front stabilizer to the frame using two bolts
Using a hex key , tighten to 15.6 ft-lb (21.2 N-m).
5. Return the bike to the upright position.
Quantity
4
4
6
2
1
into the slot in the bike frame (Figure 2).
two flat washers
into the slot in the bike frame (Figure 2).
and two flat washers
Seat assembly
Seat
slider knob
Seat adjustment
pop-pin
Crank arm
Rear
stabilizer
Component
Hex key (8 mm)
Hex key (2.5 mm)
Seat slider end cap
Handlebar post end cap
Stabilizer attachment bar
(Figure 3).
(Figure 5).
Fore/aft handlebar
knob
Resistance
knob
Handlebar post
Handlebar
adjustment
Seat post
pop-pin
Pedal
Bike frame
Adjustment feet
Quantity
1
1
1
1
2
Figure 2
Figure 1
Figure 3
Figure 4
Figure 5
Handlebar
assembly
Flywheel
Front
stabilizer
