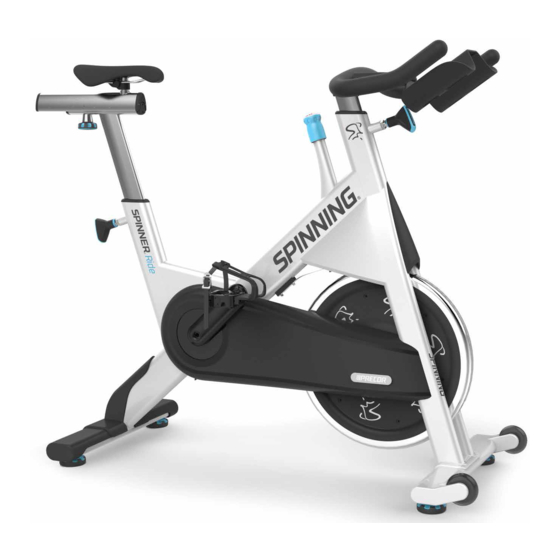

Precor Spinner Ride Assembly Manual

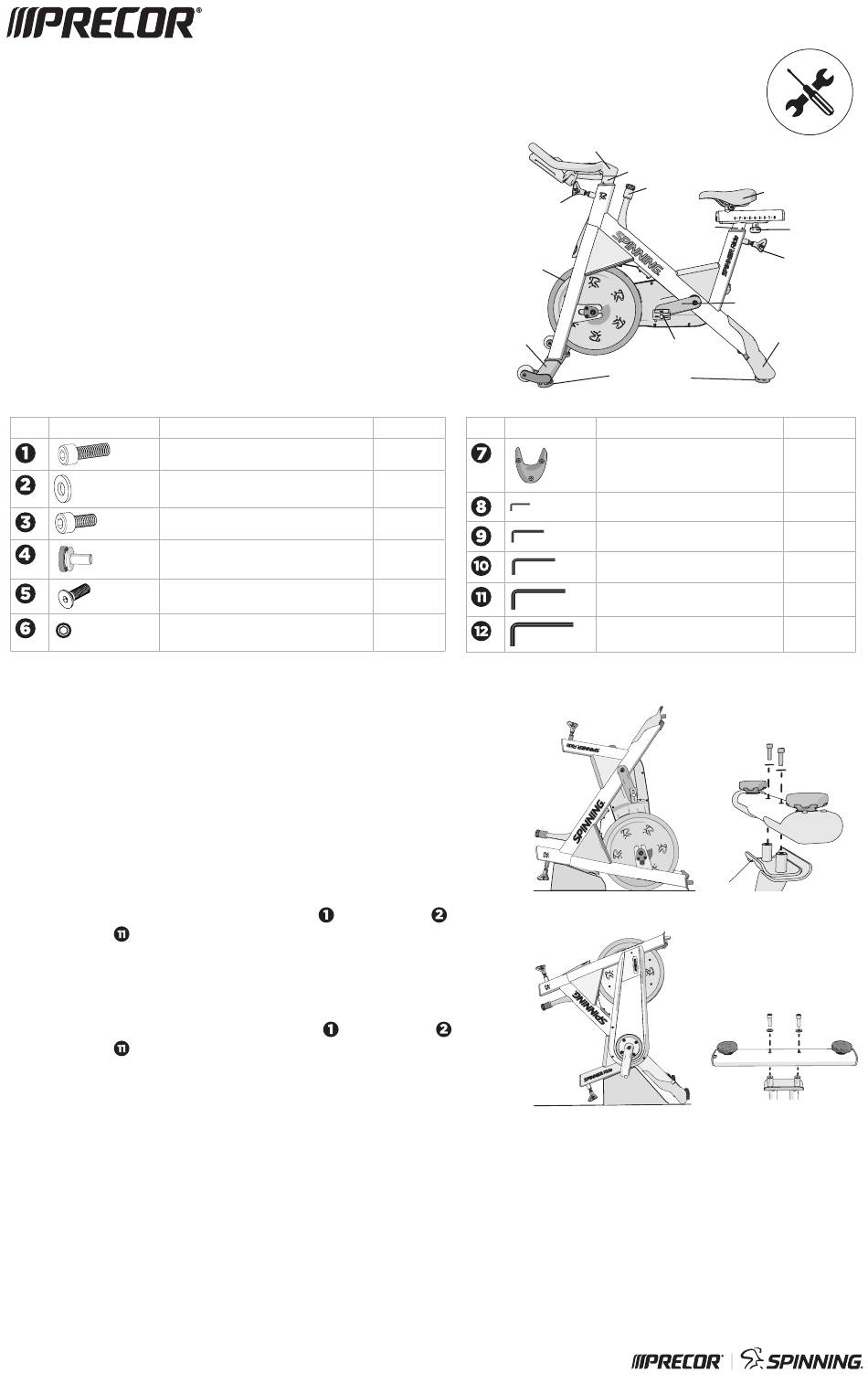

Spinner® Ride™
Assembly Guide
To assemble the Spinner® Ride, follow the steps in the order listed in this assembly
guide. For more product information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly Requirements
When assembling the bike, we recommend you:
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, flat surface, so that it remains level
and stable.
• Leave a minimum of 0.5 m (19.7 in.) on at least once side of the bike
and 0.5 m (19.7 in.) behind or in front of the bike.
Hardware Kit
Component
Socket head bolt (M8 x 30 mm)
Flat washer (8 mm)
Socket head bolt (M3 x 8 mm)
Socket head bolt (M8 x 16 mm)
Socket head flat bolt (M8 x 16 mm)
Socket head set screw (M8 x 16 mm)
Begin Assembly
Remove the following parts from the packaging: handlebar assembly, hardware kit, stabilizers,
product documentation, seat assembly, and spare parts.
CAUTION Damage to the bike during assembly is not covered by the Precor Limited
Warranty.
During assembly, you must protect the handlebar and seat adjustment pop-pins
from damage.
To attach the rear stabilizer:
1. Stand the bike frame on its front end (toward flywheel) and place a piece of foam under
the bike frame (Figure 1) to protect the handlebar adjustment pop-pin from damage.
2. Attach the rear stabilizer to the frame using two bolts
Using a hex key , tighten to 15.6 ft-lb (21.2 N-m).
To attach the front stabilizer:
1. Stand the bike frame on its back end and place a piece of foam under the bike frame
(Figure 3) to protect the seat adjustment pop-pin from damage.
2. Attach the front stabilizer to the frame using two bolts
Using a hex key , tighten the bolts to 15.6 ft-lb (21.2 N-m).
3. Return the bike to the upright position.
Flywheel
Front
stabilizer
Quantity
4
4
4
2
2
1
and two washers (Figure 2).
and two washers (Figure 4).
Handlebar
assembly
Handlebar post
Resistance
knob
Handlebar
adjustment
Seat post
pop-pin
Adjustment feet
Component
Seat slider end cap
2.5 mm hex key
4 mm hex key
5 mm hex key
6 mm hex key
8 mm hex key
Figure 1
Figure 3
Seat assembly
Seat
slider knob
Seat
adjustment
pop-pin
Crank arm
Rear
Pedal
stabilizer
Quantity
1
1
1
1
1
1
Figure 2
Figure 4
