Summary of Contents for Shure AXIENT DIGITAL ADX2FD

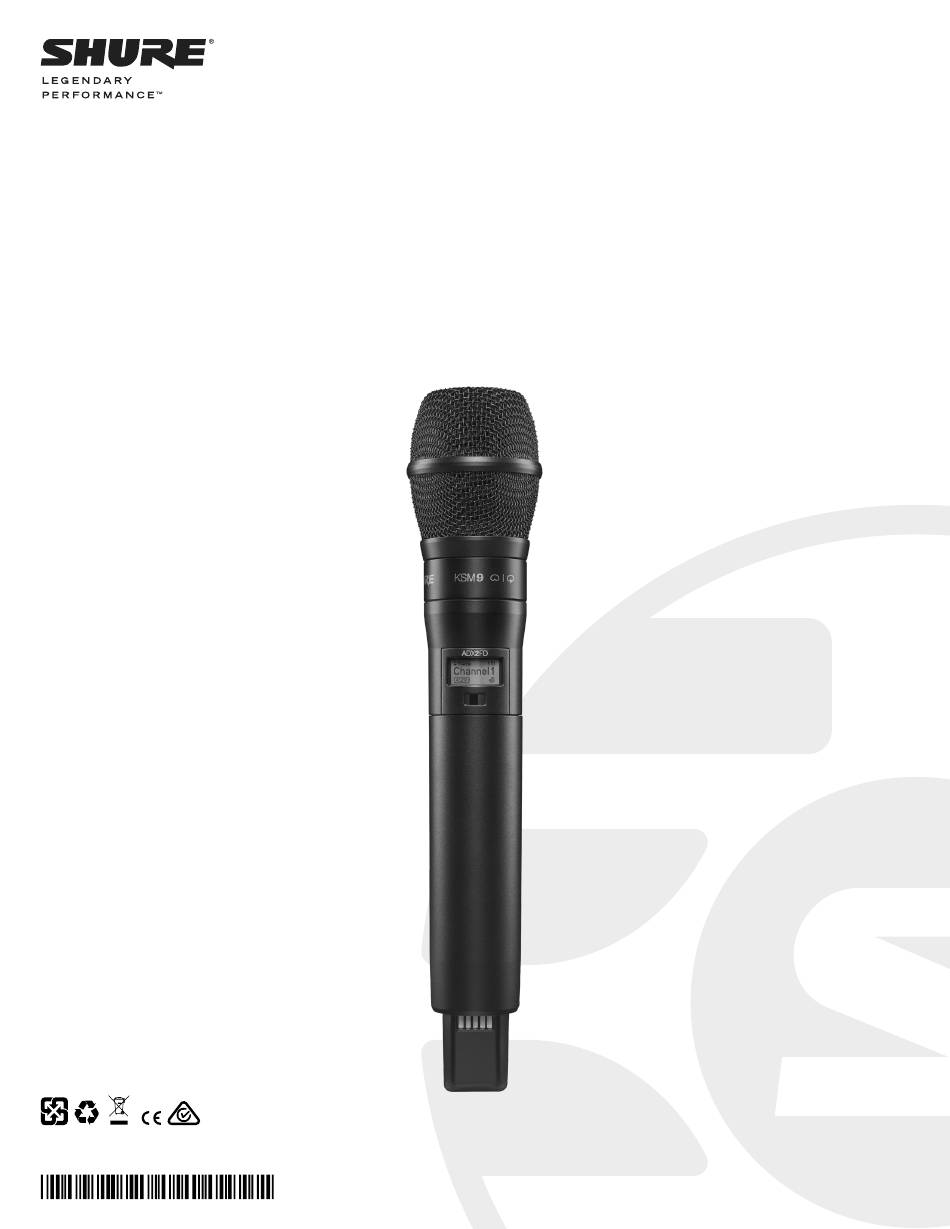

- Page 1 AXIENT DIGITAL ® ADX2FD Axient Digital Handheld Transmitter USER GUIDE © 2017 Shure Incorporated 27A36586 (Rev. Preliminary) Printed in U.S.A.
- Page 3 • Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs other than Shure rechargeable batteries • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
-
Page 4: Included Components
• 20 Hz to 20 kHz range with flat frequency response Power • Automatic input staging optimizes gain setting • Shure SB920 rechargeable batteries for up to 9 hours of runtime, preci- • Diversity ShowLink-enabled for remote transmitter control and automat- sion metering, and zero memory effect ic interference avoidance •... -
Page 5: Transmitter Controls
∨∧ Use to scroll through menu screens and to change param- ⑤ Battery Compartment eter values Requires Shure rechargeable battery. ⑥ On/Off Switch Tip: Use the following control shortcuts for quick set up: Powers the unit on or off. • Hold the ∧ button while powering-on to lock the transmitter controls •... -
Page 6: Battery Installation
Shure Rechargeable Batteries Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity in one hour and reach full charge within three hours. Single chargers and multiple bay chargers are available to recharge the Shure batteries. -
Page 7: Menu Parameters
O . Use Displays battery information: the arrow buttons to access addi- - Battery: The chemistry type of for the installed battery (Shure Rechargeable, Alkaline, Lithium, NiMH) tional menus and parameters. - Bars: Indicates the number of bars displayed - Time: Battery runtime •... -
Page 8: Setting The Frequency Manually
IR Sync RF Mute Use IR Sync to form an audio channel between the transmitter and RF Mute prevents transmission of the audio by suppressing the RF receiver. signal, while allowing the transmitter to remain powered-on. The home screen displays RF MUTED in this mode. Note: The receiver band must match the band of the transmitter. - Page 9 Shure Update Utility. The Shure Update Utility is Turn off the tone by selecting Off from the menu or by cycling the trans- available for download from http://www.shure.com/.
-
Page 10: Specifications
Power Mic Offset Range -12 to 21 dB (In 1 dB steps) Band Frequency Range RF Power (mW)*** Battery Type (MHz) Shure SB920 Rechargeable Li-Ion 470 to 510 2/10/40 Battery Runtime @ 10 mW 479 to 565 2/10/20 Shure G55†... - Page 11 K55 606-694 MHz Country Code Frequency Range Code de Pays Gamme de frequences Codice di paese Gamme di frequenza Código de país Gama de frequencias Länder-Kürzel Frequenzbereich A, B, BG, CH, CY, CZ, D, DK, EST, F FIN, GB, GR, H, HR, I, IRL, IS, L, LT M, N, NL, P, PL, RO, S, SK, SLO, TR all other countries * This equipment may be capable of operating on some frequencies not...
- Page 12 This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. Hereby, Shure Incorporated declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of confor- mity is available at the following internet address: http://www.shure.com/europe/compliance...
- Page 14 Europe, Middle East, Africa: PT. GOSHEN SWARA INDONESIA Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat I.16.GSI31.00501.0211...
