Summary of Contents for Shure Axient AXT200

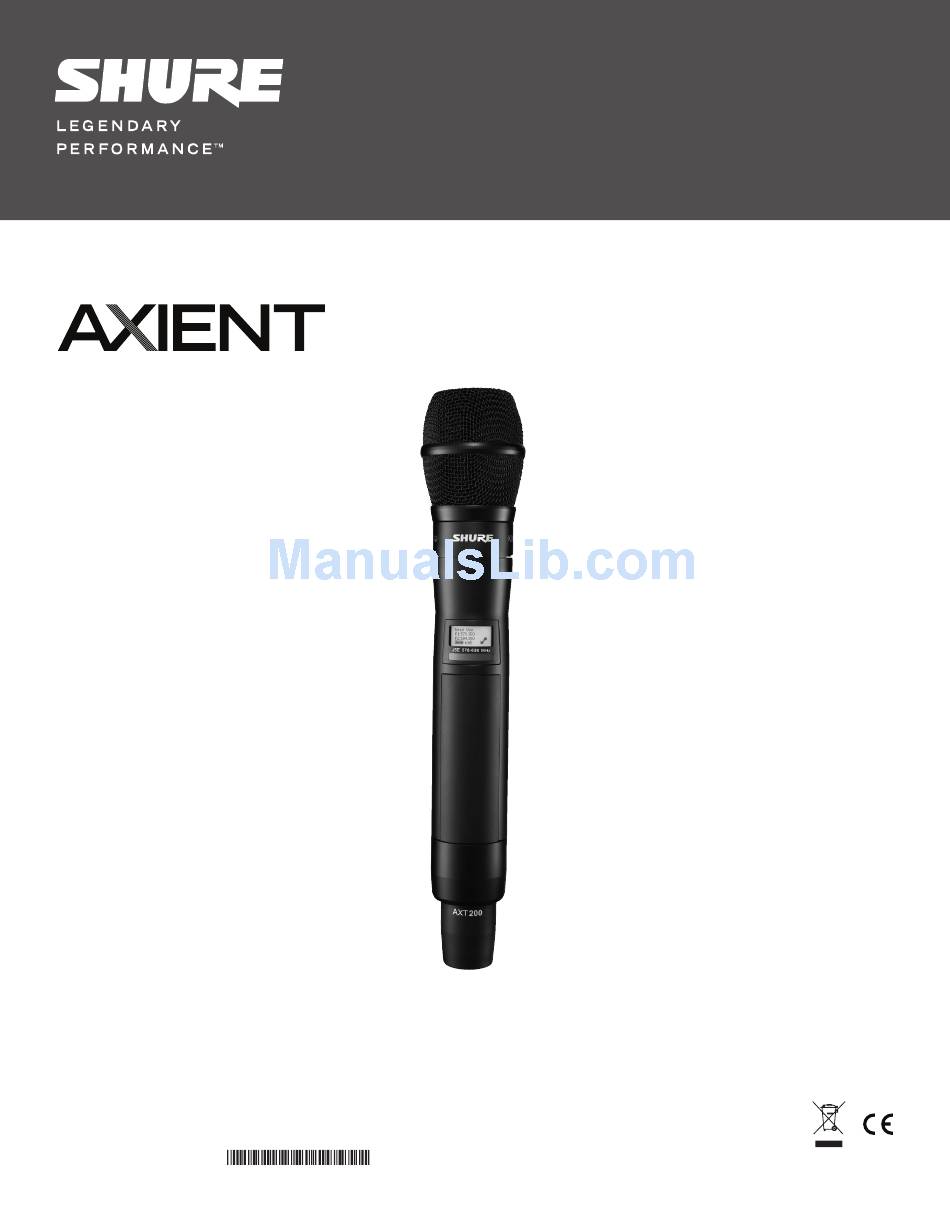

- Page 1 AXT200 Handheld Frequency Diversity Transmitter ©2011 Shure Incorporated 27B15018 (Rev. 2) Printed in USA...
- Page 2 • Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs with other than specified Shure products • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs...
-
Page 3: Transmitter Overview
The AXT200 Handheld Frequency Diversity Transmitter is a rechargeable, remotely controllable handheld transmitter with Frequency Diversity for seamless, uninterrupted audio in even the most challenging RF environments. In addition to Frequency Diversity, the AXT200 delivers ultra-linear RF performance for more channels on-air and superb audio quality. -
Page 4: Battery Runtime
IR sync. AXT200 Frequency Diversity Mode Operating an AXT200 in Frequency Diversity mode with an AXT400 Receiver enables simultaneous transmission of audio on 2 independent frequencies. 1. From the AXT400 menu: Radio > Options > Diversity 2. -
Page 5: Parameter Menus
Firmware Updates Firmware is embedded software used to control features and the user interface. Periodically, new versions of firmware are available for download from www.shure.com/wwb to incorporate additional features and enhancements. New versions of the firmware can be downloaded to AXT400 Receiver using the Firmware Update Manager tool avail- able in WWB6 software and installed on the transmitter using the infrared ports on the transmitter and receiver. -
Page 6: Audio Input
Specifications- AXT200 Handheld Transmitter Audio Input RF Carrier 470–814 MHz Frequency Range Configuration Unbalanced Note: varies by region Impedance >30 kΩ Working Range Under typical conditions: 150 m (500 ft) Line of Sight, outdoors for 500 m (1600 ft) Maximum Input gain −10 to +11 dB:... -
Page 7: System Gain
