AXT200 Handheld Frequency Diversity
Transmitter
©2011 Shure Incorporated
27A15018 (Rev. 1)
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXT200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shure AXT200

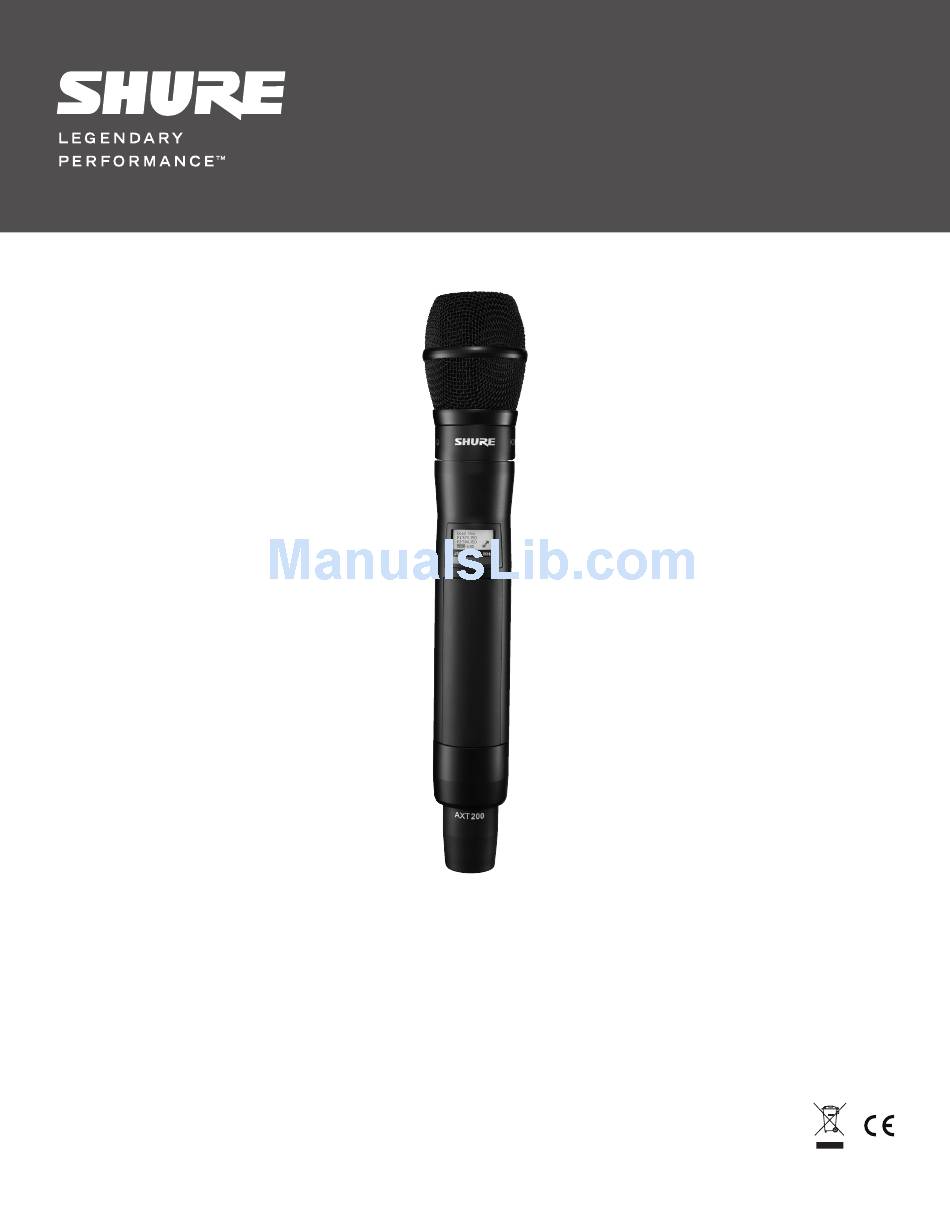

  • Page 1 AXT200 Handheld Frequency Diversity Transmitter ©2011 Shure Incorporated 27A15018 (Rev. 1) Printed in USA...
  • Page 3: Important Safety Instructions

    • Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs with other than specified Shure products • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs...
  • Page 5: Transmitter Overview

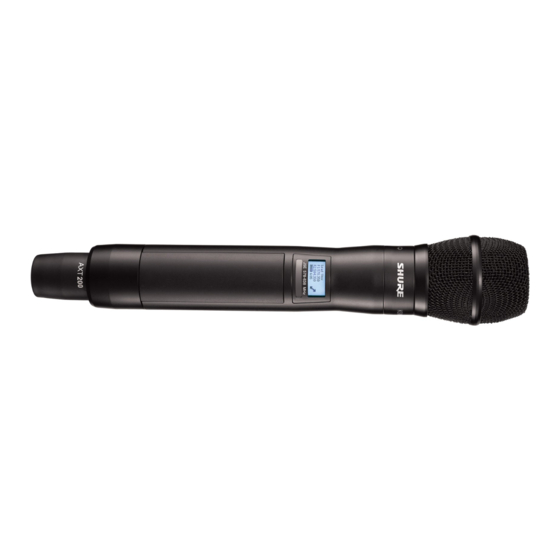

    The AXT200 Handheld Frequency Diversity Transmitter is a rechargeable, remotely controllable handheld transmitter with Frequency Diversity for seamless, uninterrupted audio in even the most challenging RF environments. In addition to Frequency Diversity, the AXT200 delivers ultra-linear RF performance for more channels on-air and superb audio quality. Its advanced power management supports extended battery life and highly accurate status metering.
  • Page 6: Battery Runtime

    Using an AXT200 for Frequency Diversity The IR Sync function forms a Link and sets the frequency between the Operating an AXT200 in Frequency Diversity mode with an AXT400 transmitter and an AXT400 Receiver. receiver enables simultaneous transmission of audio on 2 independent frequencies.
  • Page 7: Parameter Menus

    Firmware is embedded software used to control features and the user interface. Periodically, new versions of firmware are available for download from www.shure.com/wwb to incorporate additional features and enhancements. New versions of the firmware can be downloaded to AXT400 Receiver using the Firmware Update Manager tool available in WWB6 software and installed on the transmitter using the infrared ports on the transmitter and receiver.
  • Page 8: Audio Input

    Specifications- AXT200 Handheld Transmitter RF Carrier 470–814 MHz Audio Input Frequency Range Note: varies by region Configuration Unbalanced Working Range Under typical 150 m (500 ft) Impedance >30 kΩ conditions: Line of Sight, outdoors 500 m (1600 ft) Maximum Input Gain −10 to +11 dB:...
  • Page 9: System Gain

    Certified under FCC Part 15 and FCC Part 74. on the selected frequency. Shure strongly urges the user to contact the Certified in Canada by IC to RSS-123 and RSS-210. appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
  • Page 12 Europe, Middle East, Africa: United States, Canada, Latin Asia, Pacific: Shure Europe GmbH America, Caribbean: Shure Asia Limited Wannenäckestr. 28, Shure Incorporated 22/F, 625 King’s Road 74078 Heilbronn, Germany 5800 West Touhy Avenue North Point, Island East Niles, IL 60714-4608 USA...
