Festo CMMS-ST-C8-7-G2 Manual

Motor controller
Hide thumbs Also See for CMMS-ST-C8-7-G2:
Table of Contents

Advertisement

Quick Links

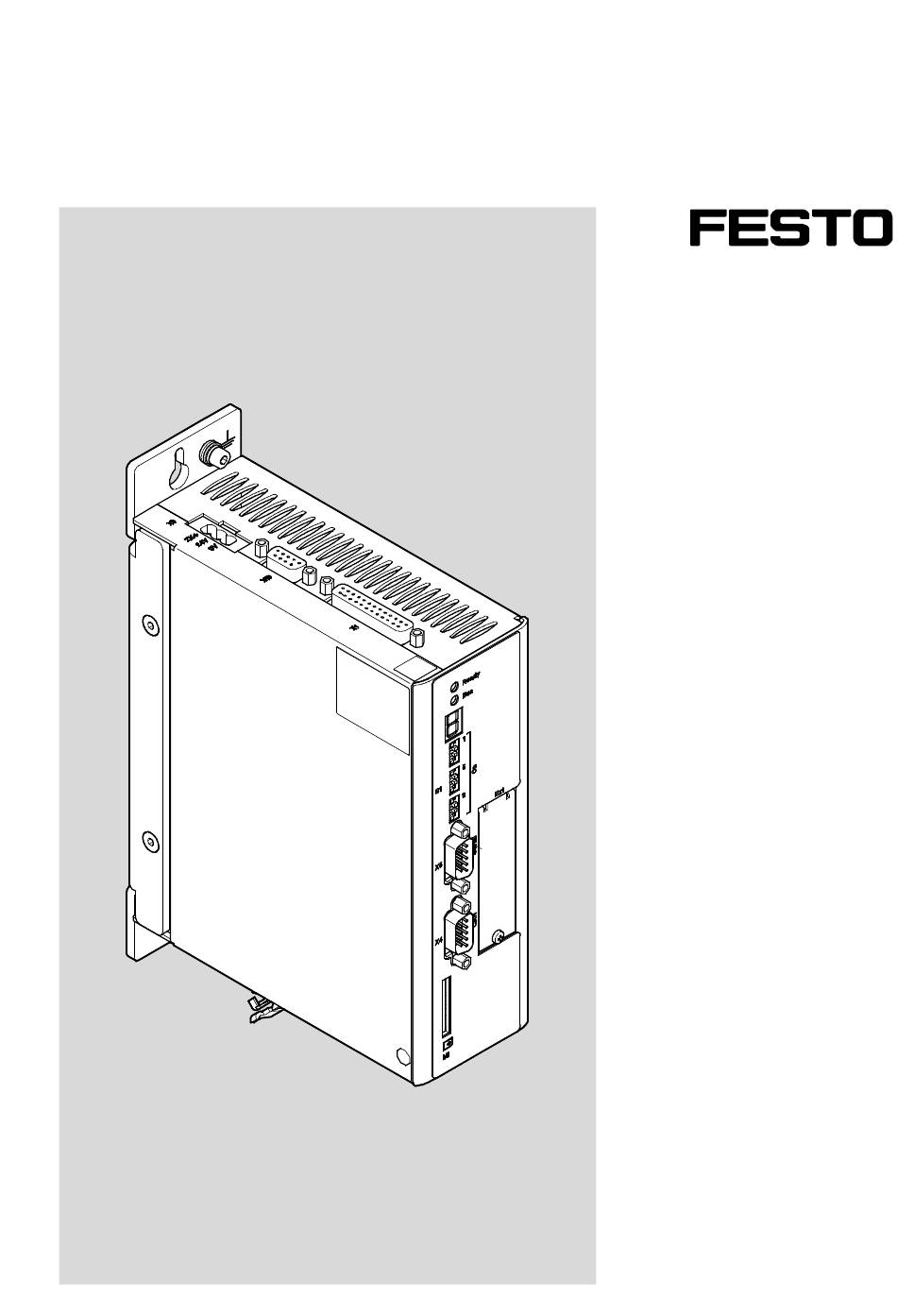

Motor controller
CMMS-ST-C8-7-G2
Description
STO safety function
(Safe Torque Off )
8040102
1404NH
[8034464]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMMS-ST-C8-7-G2 and is the answer not in the manual?

Questions and answers

Related Manuals for Festo CMMS-ST-C8-7-G2

Summary of Contents for Festo CMMS-ST-C8-7-G2

  • Page 1 Motor controller CMMS-ST-C8-7-G2 Description STO safety function (Safe Torque Off ) 8040102 1404NH [8034464]...
  • Page 2 Essential or useful accessories. Information on environmentally sound usage. Text designations: • Activities that may be carried out in any order. 1. Activities that should be carried out in the order stated. – General lists. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH –...

  • Page 3: Table Of Contents

    ..........Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 4 ..............Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 5 The illustration on the rating plate can be found in the description Mounting and Installation, GDCP-CMMS-ST-G2-HW-... Service Please consult your regional Festo contact if you have any technical problems. Issue status of the specified standards Standard: issue status EN 60204-1:2006/A1:2009-02...
  • Page 6 – Control and parameterisation via device profile CiA 402 (DS 402). Software Help Help on the CMMS-AS plug-in CMMS-AS – Surface and functions in the Festo Configuration Tool for the plug-in Help on the CMMD-AS plug-in CMMD-AS Help for the CMMS-ST plug-in CMMS-ST Tab.

  • Page 7: Safety And Requirements For Product Use

    – in its original state without unauthorised modifications, – within the product's limits, as defined by the technical data Appendix A.1, – within the specified service life of the switching elements Appendix A.1, Tab. A.6, – in an industrial environment. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 8: Foreseeable Misuse

    Cat. 3 / PL d in accordance with EN ISO 13849-1. The achievable safety level depends on the other components used to implement the safety function. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 9: Requirements For Product Use

    If not: If applicable, use a safety switching device with cross-circuit detection for control of the safety function as well as an appropriate filter construction group for filtering the test pulses at the control ports of the CMMS-ST-...-G2. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 10: Range Of Application And Certifications

    Standards and test values which the product must comply with and fulfils can be found in the section “Technical data” Appendix A.1. The product-relevant EU directives can be found in the declaration of conformity. Certificates and declaration of conformity on this product can be found at www.festo.com/sp. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 11: Description Of The Safety Function Sto

    The motor controller CMMS-ST-...-G2 has 2 interfaces for control of the STO safety function. Top side of housing Bottom side of housing I/O interface [X1] STO interface [X3] Fig. 2.1 Motor controller CMMS-ST-...-G2 Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 12: Function And Application

    – Connection option for safety com- mand devices, e.g. emergency stop switch, protective door switch, light curtains, etc. 1) Or comparable safety switching device with corresponding safety contacts Tab. 2.1 Selection of the safety function Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 13: Description Of The Safety Function Sto

    With the Safe Torque Off function (STO), the energy supply to the motor is reliably interrupted by switching off the end stage enable and supply to the final output stage. The drive cannot generate torque or any force and so cannot make any dangerous movements. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 14 Therefore, when using the “STO” function, do not use motors with holding brakes; use clamping units that permit emergency braking or use automatic locking axis mechanisms. The holding brakes used by Festo motors are not suitable for active deceleration - only for holding a position! Application examples for the STO function are manual manipulations during set-up, equipping and fault clearance.

  • Page 15: Overview Of Interfaces [X1] And [X3]

    Interruption of the supply for the eight drivers for the end stage MOSFETs via [X3] using a relay (the MOSFET drivers are separated from the power supply via a relay, thus preventing the PWM signals from reaching the MOSFETs). Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 16: Runtime Performance

    Tab. A.8 in appendix A.1.3 describes the electrical data for the auxiliary supply. 2.2.3 Runtime performance The runtime performance for typical applications can be found in the sample circuits: – Sample circuit for STO in Section 2.3. – Sample circuit for SS1 Section 2.4. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 17: Switching Example Sto - "Safe Torque Off

    – cross circuits in the input circuit. The removal of output stage enable via DIN4 [X1.21] as well as switching off of the driver supply via Rel [X3.2] results in the motor coasting to a stop. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 18: Sto Request

    NC1/NC2, [X3.5/6] is closed. g) Not later than 720 ms (t5) after 2-channel calling (DIN4 [X1.21] and Rel [X3.2] ), “H” is displayed on the 7-segments display of the motor controller. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 19: Restart After Termination Of The Sto Status

    No later than 720 ms (t5) after ending of the 2-channel request, the “H” on the 7-segments display goes out. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 20: Sto Timing Diagram

    (dependent on the brake used) beforehand) t10 0 … 6553 ms (with FCT parameterised switch- 30 ms 720 ms on delay brake) 20 ms Fig. 2.4 STO timing diagram Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 21: Switching Example Ss1 - "Safe Stop 1

    “driver supply feedback” signal displays the safe status and the plausibil- ity check is successful. You can find technical data, such as max. current, etc., in the data sheet of the safety switching device used. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 22 If this delay time is set too short, the drive carries out an STO function after this time has expired. This can result in wear of the brake. Note The ramp function of the motor controller's Quick Stop delay is not monitored. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 23: Request Ss1

    NC1/NC2, [X3.5/6] is closed. i) Not later than 720 ms (t7) after 2-channel request (DIN4 [X1.21] and Rel [X3.2] ), “H” is displayed on the 7-segments display of the motor controller. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 24: Restart After Termination Of The Ss1 Function And Sto Status

    The time t12 is chosen so large that the brake can open mechanically within t12. d) No later than 720 ms (t7) after ending of the 2-channel request, the “H” on the 7-segments display goes out. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 25: Timing Diagram Ss1

    = 50…500 ms (dependent on the brake used) 5 ms t12 = 0…6553 ms (with FCT parameterised time delay PNOZ ( t1 + t2 + t3 + t4) switch-on delay brake) 12 ms Fig. 2.6 Timing diagram SS1 Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 26: Parameterisation Example

    – sum: 210 ms + 150 ms + 5 ms = 365 ms – safety reserve for dispersion of the brake times (example): 10 % – time delay of the PNOZ (t5): 400 ms Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 27: Testing The Safety Function

    If a performance test does not take place in the process through regular actuation of the protective device: • Perform a performance test at least once a week. • Perform a performance test each time the machine is switched on. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 28: Mounting And Installation

    On unoccupied plug connectors, there is the danger that damage can occur to the device or other sys- tem parts from electrostatic discharge (ESD). Earth the system parts prior to installation and use suit- able ESD equipment (e.g. shoes, earthing straps, etc.). Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 29: Ports [X1] And [X3]

    This interface can be part of an emergency stop circuit or a protective door arrangement, for example. Carry out the connection corresponding to section A.1.3, Tab. A.9. You will find switching examples in section 2.3 and 2.4. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 30: Commissioning

    Carry out the following steps in preparation for commissioning: 1. Make sure the motor controller is correctly mounted ( Section 3.1). 2. Check the electrical installation (connecting cable, pin allocation Section 3.2). All FU conductors connected? Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 31: Performance Test, Validation

    No 0 Can it be guaranteed that the implemented measures will not severely impair the machine’s ability to perform its function? Tab. 4.1 Questions for validation in accordance with EN ISO 12100 (example) Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 32 Tab. 4.2 Questions for validation in accordance with EN ISO 13849-1 and -2 (example) Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 33: Operation

    In the following tables, the error messages relevant for the functional safety in relationship to the STO safety function are listed. The “Code” column includes the CiA 402 error code. For the complete list of error messages Description, mounting and installation, GDCP-CMMS-ST-G2-HW-..Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 34 If the error occurs again after the STO requirement is ended, the hardware of the motor controller is defective. 45-3 8087h DIN4 plausibility error PS off Cause Output stage no longer switches off Hardware defective Action Repair by the manufacturer Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 35: Modification And Replacement Of The Motor Controller

    Repair or replacement of the integrated protection circuit Repair of the integrated protection circuit is not permissible. If required, replace the com- plete motor controller. De-commissioning and waste management Observe the local regulations for environmentally appropriate disposal of electronic modules. Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 36: A Technical Appendix

    The functional safety engineering of the product has been certified by an independent testing body in accordance with section 1.1.4, see certificate www.festo.com Reliable component Yes, for the STO safety function Tab. A.2 Technical data: safety information Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 37: General, Operating And Environmental Conditions Cmms-St

    [°C] –25 … +70 Vibration and resistance to shocks Operation in accordance with EN 61800-5-1, section 5.2.6.4 Transport in accordance with EN 61800-2, section 4.3.3 Tab. A.4 Technical data: operating and environmental conditions Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 38: Electrical Data [X1], [X3]

    CMMS-ST up to Rev 05 10 000 CMMS-ST from Rev 06 10 x 10 1) Switching time Tab. A.6 Tab. A.7 Technical data: electrical data of the acknowledgment contact NC1/NC2 [X3] Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...
  • Page 39 Cable cross section (flexible conductors, wire end sleeve with insulating collar) One conductor [mm²] 0.25 … 0.5 Two conductors [mm²] 2 x 0.25 (with twin wire end sleeves) Tightening torque M2 [Nm] 0.22 … 0.25 Tab. A.9 Technical data: cabling at [X3] Festo – GDCP-CMMS-ST-G2-S1-EN – 1404NH – English...

  • Page 40: B Glossary

    Emergency stop is used to stop a process or a movement if this creates a hazard. Festo Configuration Tool, software for configuration and commissioning. MTTF Mean Time To Failure (dangerous): Time in years until the first dangerous failure will have occurred with 100 % probability, in accordance with EN ISO 13849-1.
  • Page 42 Copyright: Festo AG & Co. KG Postfach 73726 Esslingen Germany Phone: +49 711 347-0 Fax: +49 711 347-2144 e-mail: service_international@festo.com Reproduction, distribution or sale of this document or communica- tion of its contents to others without express authorization is Internet: prohibited.
