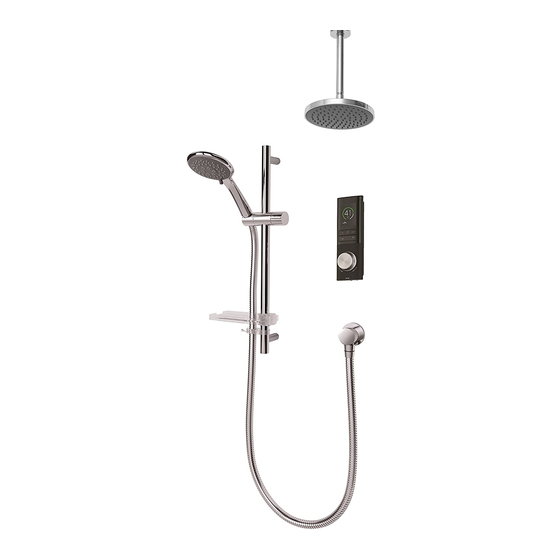

Summary of Contents for Triton Digital Mixer Shower
- Page 1 DIGITAL MIXER SH WER Installation Guide nstallers please note these InstructIons are to be left wIth the user 2181516D - April 2018 European Union Registered Design No 004558245-0001/10...
-
Page 2: Table Of Contents
Contents Important Information ..............Standards and approvals ..............Dimensions ..................Digital Controller ................ Digital Mixer Processor Unit ............. Specifications ..................Main Components ................General Installation Information ..........Typical suitable Installations ............High Pressure Instantaneous Hot Water Systems ....High Pressure Unvented Mains Pressure Cylinders ....High Pressure Thermal Store Systems ......... -
Page 3: Important Information
Important information This book contains all the necessary installation instructions for your Digital Mixer Shower – please read them carefully. Care taken during the installation will provide a long, trouble-free life from your shower. The installation must be in accordance with Water Regulations and Bylaws. - Page 4 Important information The showerhead and hose supplied with this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. Please read this book thoroughly and familiarise yourself with all instructions before commencing installation and keep it for future reference.
- Page 5 MUST be regularly cleaned to remove scale and debris. If it is intended to operate the shower in areas of hard water (above 200 ppm temporary hardness), a scale inhibitor may have to be fitted. For advice on the Triton scale inhibitor, please contact Customer Service. DO NOT operate the Digital Mixer Processor unit outside the guidlines as laid out in ‘site requirements’...
- Page 6 Requirements for Special Locations. The Digital Mixer Processor unit MUST only be used with the AC power supply cable provided. If this supply cable is damaged, it must be replaced by a Triton engineer or similar qualified persons to avoid a hazard.
-
Page 7: Dimensions
MAY BE BLOCKED from the control panel and prevent correct operation of the shower. To check the product suitability for commercial and multiple installations, Please contact Triton’s Specification Advisory Service on: 024 7637 2222 for guidance on installations. -
Page 8: Digital Mixer Processor Unit
Dimensions Dual Outlet Processor Unit (High Pressure and Low Pressure) OUTLETS INLETS... - Page 9 Dimensions Single Outlet Processor Unit (High Pressure and Low Pressure) OUTLETS INLETS...
-
Page 10: Specifications
32°C to 47°C* adjustment range Splashproof rating IP24 IP24 *Max Temperature setting can be adjusted between 41°C and 47°C (factory set at 47°C) **The Digital Mixer Shower is supplied with 15mm push fit connectors, DO NOT use any other type of fitting... -
Page 11: Main Components
Main components 1. Digital Processor Unit Cover 9. Digital Controller 2. Digital Processor Unit Fixing positions 10. Controller Fixing Bracket 3. Digital Processor Unit AC Power Lead 11. 10m Data Cable 4. 15mm push fit connectors with Isolating valves 5. 15mm push fit connectors 6. -
Page 12: General Installation Information
Digital Mixer Shower. The shower MUST NOT be positioned where it will be subjected to freezing conditions. -
Page 13: Typical Suitable Installations
Interference from other wirelessly controlled devices and radio signals can dramatically reduce the ability of the wireless Digital Mixer Shower to maintain a good, consistent wireless signal. This may include mobile phones, cordless phones, radio controlled toys, wireless doorbells etc. -
Page 14: High Pressure Unvented Mains Pressure Cylinders
Typical suitable installations Flow Regulator Boiler Rating Regulator Housing Inlet White/ Filter 24 to 30kW 7 L/min Green Inlet Pipe White/ Flow 30 to 36kW 9 L/min Regulator Orange O Ring Seal 36kW + None required Inlet Nut Fig.2 To fit flow regulator 1. -
Page 15: High Pressure Thermal Store Systems
Typical suitable installations Fig.3 Fig.4 Processor Unit Processor unit Safety devices not shown water Service valves Unvented Blender hot water valve Service valves storage unit Control panel Expansion Expansion vessel vessel Pressure Control panel Pressure reducing valves reducing Return Flow valve Balanced cold mains supply Stop tap... -
Page 16: Low Pressure Gravity Fed Systems
Typical suitable installations Fig.5 Only install the low-pressure Stop valve Digital Mixer Processor with a 100mm Cold water Cold supply minimum gravity fed system. Never install cistern a high-pressure digital mixer Gate valve shower with a gravity fed system Digital Mixer Service Processor unit valves... -
Page 17: Digital Mixer Processor Installation
Mixer processor installation The Digital Mixer Processor unit MUST only be positioned as shown. The Digital Mixer Processor unit can be mounted on a horizontal surface in any orientation (Fig.6). Ensure suf cient space is left surrounding the processor unit to allow for pipework, connections and &... -
Page 18: Plumbing Connections
Fig.9 Cold Inlet Inlet Inlet Pipe work Outlet Pipe work* *The number of outlets connections will vary depending on the configuration of the Digital Mixer Shower purchased. - Page 19 Mixer processor installation IMPORTANT: The fittings on the inlet and outlets are the push-fit type. The pipework must be cut with a pipe cutter and all burrs and rough edges removed from the end of the tube. The fittings can be used with copper and plastic pipe. If using chrome plated copper pipe, remove the first 25 mm of plating completely from the connecting surfaces.
-
Page 20: Electrical Connections
Mixer processor installation Before any electrical work is attempted, ensure the electricity supply is isolated at the mains switch. Electrical installation may only be carried out by a qualified person. Electrical connections Connect the Digital Processor Unit AC Power Lead to a double pole 3Amp switched fused spur (Fig.12), incorporated in the wiring circuit, in accordance with current wiring regulations. -
Page 21: Installation Schematic
Installation schematic Digital Mixer Processor Junction Hot Inlet Outlet To mains Cold Inlet electricity supply Digital Mixer Shower Fittings Digital Processor to be within 10 metre range 3Amp switched fused spur MUST be easily accessible Digital Control Panel Examples of poor installation practices... -
Page 22: Digital Controller Installation
Digital controller installation The Digital Controller can be connected to the Digital Mixer Processor unit in two ways, these are: a) 10 metre data cable or b), wirelessly using AA sized batteries. The Digital Controller has been designed to allow for the installation within a shower cubical or above a bath. -
Page 23: Fixing Bracket Installation
Digital controller installation If the data cable is being routed through wall cavities, chased into solid walls or surface mounted then appropriate trunking/conduit MUST be used. Data cables MUST be fitted in such a way so that they can later be removed for maintenance or servicing Fig. -
Page 24: Digital Controller Fitting (Wired Connectivity)
Digital controller installation If installing the Digital Controller onto a tiled wall, always mount the fixing bracket on the surface of the tiles. NEVER tile up to the Digital Controller. Digital Controller fitting (Wired connectivity only) Remove the Battery Compartment Cover on the rear of the Digital Controller by undoing the two fixing screws (Fig 17). - Page 25 Digital controller installation Replace the Battery Compartment Cover and secure in place using the two fixing screws previously removed. Ensure that the Battery Compartment Cover sits flush with the rear housing of the Digital Controller and that both retaining screws are tight (Fig 20). Do not over tighten the screws.
-
Page 26: Digital Controller Fitting (Wireless Connectivity)
Digital Controller fitting (Wireless Connectivity Only) Triton recommends that any drilling of holes to secure the wireless Digital Controller is NOT undertaken until after commissioning, as the exact final location will need to be tested to ensure that a good, consistent wireless signal is present between the Digital Controller and Digital Mixer Processor unit. - Page 27 Digital controller installation Fig. 25 Make sure the fitting of the batteries is carried out correctly otherwise the PCB within the Digital Controller could be damaged. Replace the Battery Compartment Cover and secure in place using the two fixing screws previously removed.
-
Page 28: Commissioning
Commissioning While the Digital Mixer Shower is in commissioning mode all other functionality is locked out. Ensure that the isolating valves on the hot and cold inlets connectors are fully on (Fig.11). Turn on the water supplies and check the entire installation for water leaks. - Page 29 Press and hold outlet 2 ( symbol) for 5 seconds when the commissioning process is complete, this will set the Digital Mixer Shower into normal operation mode. It may be necessary to repeat the commissioning procedure , i.e following servicing or maintenance.
-
Page 30: Quick Start
Quick start Press the start Adjust the flow rate Adjust the temperature button to activate with the decrease ( with the temperature the shower and increase ( dial Alternatively, select your preferred preset, buttons. ‘Relax / User 1’ ( ) or ‘Energise / User 2’... -
Page 31: General Maintenance
Many household cleaners contain abrasive and chemical substances, and should not be used for cleaning the Digital Controller or any chrome plated fittings. It is recommended that your Digital Mixer Shower system is cleaned regularly with warm, soapy water using a micro fibre cleaning cloth (eg: E-cloth) or sponge ONLY. -
Page 32: Spare Parts
Spare parts... - Page 33 Spare parts Ref. Description Part No. 1. Temperature Control Valve Low pressure ....................... 83316750 High pressure ..................... 83316760 2. Digital Mixer Processor PCB Single Outlet ......................7073756 Multi Outlet ......................7073763 3. Temperature Control Motor ............22013594 4. Flow Control Valve ..................83316770 5.
-
Page 34: Fault Diagnosis
Fault diagnosis If any maintenance is required then it MUST be carried out by a competent trade person or a Triton Engineer. ENSURE that the underlying cause of malfunction is resolved before replacing any parts IMPORTANT - Isolate the electricity supply and remove the circuit... - Page 35 Fault diagnosis Cause Action/Cure Problem/Symptom Water too cool Temperature setting Increase temperature via rotary temperature control. See ‘Quick Start’ or cold too low Increase Max Shower Temp setting, ‘Max Shower Temp’ refer to ‘Configure Settings’ in the user setting set to low manual Supply temperature Set system temperature to a minimum of...
- Page 36 Digital Check wireless connectivity, see Panel is not very control Panel and ‘Commissioning’ responsive Processor unit Unit malfunction Contact Triton Customer Service Shower Pulsing Water supply Increase domestic hot water (HP mixer unit on temperature too low temperature combination boiler)
- Page 37 Check for correct installation, repeat Air lock in Digital Noise priming to remove air from the mixing Mixer Processor unit unit, see ‘Commissioning’ Ensure all pipework is securely fixed, see Water hammer ‘General Installation Information’ Unit malfunction Contact Triton Customer Service...
-
Page 38: Disposal And Recycling
WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:... -
Page 39: Guarantee, Service Policy, Etc
Any part found to be defective during this guarantee period 3. All products attended to by a Triton service engineer must be we undertake to repair or replace at our option without installed in full accordance with the Triton installation guide charge, so long as it has been properly maintained and applicable to the product. - Page 40 Brochure enquiries: +44 (0) 24 7632 4460 #firstthing Triton Showers is a division of Norcros Group (Holdings) Limited. Triton Showers, Triton Road, Nuneaton, Warwickshire CV11 4NR It is our policy to improve the design and specification of our products and we reserve the right to depart from the design...
