Polycom Ceiling Microphone Array Setup Sheet page 5

For ceilings that are not suspended
13

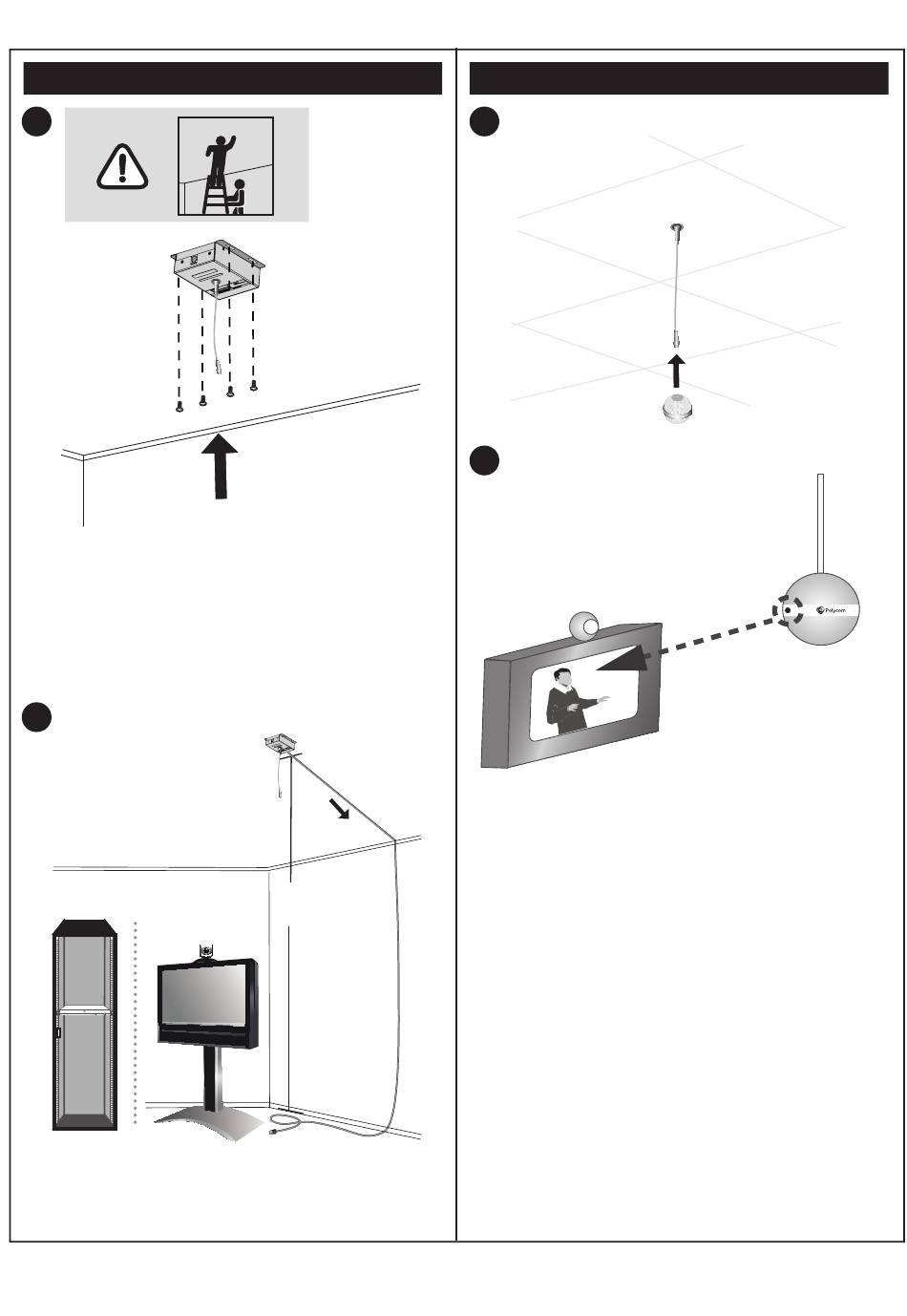

To attach the electronics enclosure, use suitable
hardware for your ceiling type. Align the
enclosure so that, when the Microphone Array
is attached, the dot on the Microphone Array
points toward the main display, as shown in
Step 16.
14
SoundStructure C16 TM
Polycom Ceiling Microphone Array Setup Sheet
15.2 m (50' )
~ 3.1 m
(10')
For all ceilings
15
16
Point the dot (located on the band around the
middle of the microphone ball) toward the main
display.
5
