Summary of Contents for Polycom Wireless Microphone System

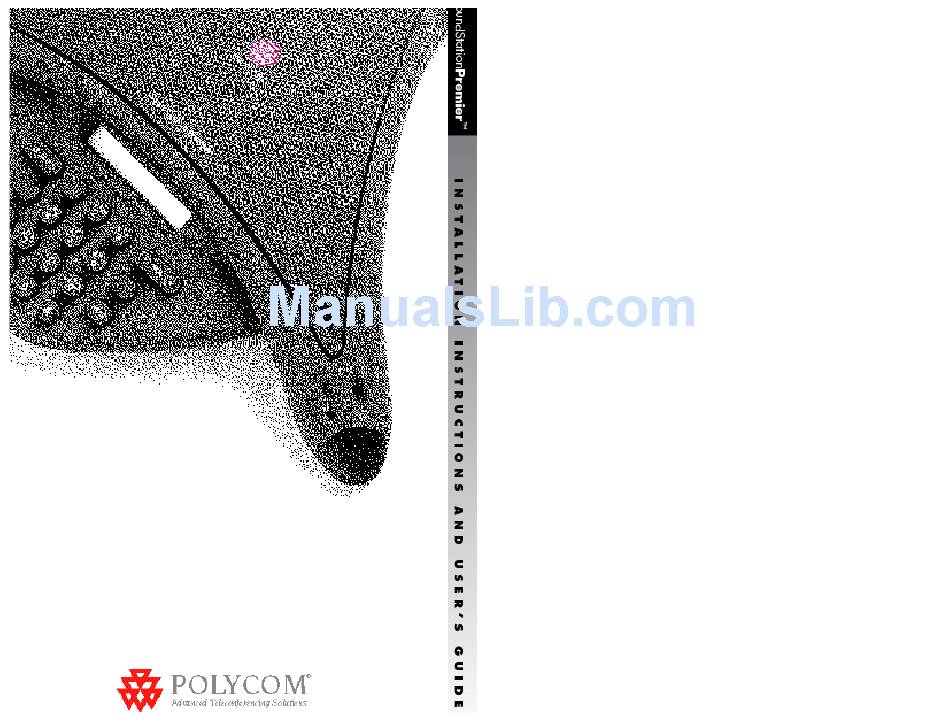

- Page 1 Full Duplex Conference Phone and Wireless Microphone System Installation Instructions and User’s Guide...
-
Page 2: Table Of Contents
Checklist of Parts... To Ensure Better Performance... Installing the conference phone ... Using the conference phone... Permanent Installation ... Chapter 3 The Wireless Microphone System ... Introduction... Checklist of Parts... To Ensure Better Performance... The Wireless Receiver ... Powering the Receiver... -
Page 3: Chapter 1 Soundstation Premier
1-800-451-0995 or fill out our customer registration card. CHECKLIST OF PARTS Your SoundStation audio conferencing system includes the following items: If any of the above parts is missing, please contact your Polycom representative or your Polycom authorized dealer. TO ENSURE BETTER PERFORMANCE Locate the SoundStation Premier in a quiet environment, with soft furnishings —... -
Page 4: Tone Dialing
5. Place the SoundStation Premier console on a flat, stable surface in the center of the room, then press the “On/Off” button to hear a dial tone. If you don’t hear a dial tone, you may not be connected to an analog telephone line. -
Page 5: In Case Of Difficulty
To place the call on hold or mute At any time during a phone call, press SHIFT , then press HOLD HOLD call on , or simply press on the remote keypad. This shuts off the speaker and all HOLD microphones. -
Page 6: Chapter 2 Soundstation Premier With Extended Hypercardioid Microphones
SoundStation Premier immediately. Do not reconnect it to the network until the SoundStation Premier has been repaired. If you need more help, please call Polycom technical support at 1-800-451-0995, or your Polycom authorized dealer. SoundStation Premier Full Duplex Conference Phone and Wireless Microphone User’s Guide... -
Page 7: Introduction
1-800-451-0995 or fill out our customer registration card. CHECK LIST OF PARTS Your SoundStation Premier System includes the following items: f any of the above parts are missing, please contact your Polycom representative or your Polycom uthorized dealer. TO ENSURE BETTER PERFORMANCE Use in a conference room up to 30 40 feet. - Page 8 4. Insert the Wall Module plug into a nearby electrical outlet. The SoundStation Premier will run a brief self-test, and then you’ll hear a tone. If you don’t hear the tone, make sure the outlet is working and the power is switched on. 5.
- Page 9 USING THE SOUNDSTATION PREMIER WITH TWO EXTENDED HYPERCARDIOID MICROPHONES To place a call: ON/OFF Press to turn the SoundStation Premier console on, and dial the number. USING THE SOUNDSTATION PREMIER To program and retrieve the conference phone’s phone number When power is first applied to the phone, the display will read the phone number with area code use the * key to enter a space.
- Page 10 To place the call on hold or mute At any time during a phone call, press SHIFT , then press HOLD HOLD call on , or simply press on the remote keypad. This shuts off the speaker and all HOLD microphones.
-
Page 11: Permanent Installation
PERMANENT INSTALLATION Lavalier Wireless Microphone System To hide cables and install permanently: 1. Locate microphones 6 to 8 feet from the SoundStation Premier console. Chapter 3 2. Drill holes in table to accommodate for thickness of cord. For the extended mircrophone, drill a 1/2"... -
Page 12: Introduction
(120 dB) and hiss-free performance. CHECKLIST OF PARTS Your SoundStation Wireless Microphone System includes the following items: If any of the above parts are missing, please contact your Polycom representative or your Polycom authorized dealer. TO ENSURE BETTER PERFORMANCE Position microphone six inches from mouth. -
Page 13: Transmitter Operation
LAVALIER WIRELESS TRANSMITTER Transmitter Operation Slide the transmitter’s battery cover open and place the included 9V battery into the Battery Compartment (4), observing the correct polarity. Turn on the transmitter by pushing the Transmitter O N / O F F Switch (2) to the position. - Page 14 THE SOUNDSTATION Premier Full Duplex Conference Specifications Audio Bandwidth 200 to 3500 Hz Loudspeaker Volume 89dBSPL Network Interface Two-wire RJ-11 analog PBX or Public Switched Telephone Network interface Power Requirements Console Size: Weight: Power Supply/ Telephone Interface Wall Module Power: 90-130VAC, 50/60 Hz, 30W Dimensions: Cable Length: 25' to console, 10' to telephone wall jack Weight:...
-
Page 15: Limited Warranty And Limitation Of Liability
Date”). If you notify Polycom or its Authorized Dealer within one year of the Warranty Date that your system is not in good working order, Polycom will without charge to you repair or replace, at its option, the system components that are not in good working order. Repair or replacement parts may be new or refurbished and will be provided on an exchange basis. - Page 16 SoundStation Premier Full Duplex Conference Phone and Wireless Microphone User’s Guide SoundStation Premier Full Duplex Conference Phone and Wireless Microphone User’s Guide...
