Polycom SoundStation Wireless Microphone System User Manual

INTRODUCTION
Thank you for choosing the SoundStation Wireless Microphone System. The SoundStation Wireless
Microphone System works with both the SoundStation and the SoundStation EX with Extended
Microphones. It is designed for presenters or participants who walk around the conference room.
This system operates on a long-range, interference-free VHF high band frequency.

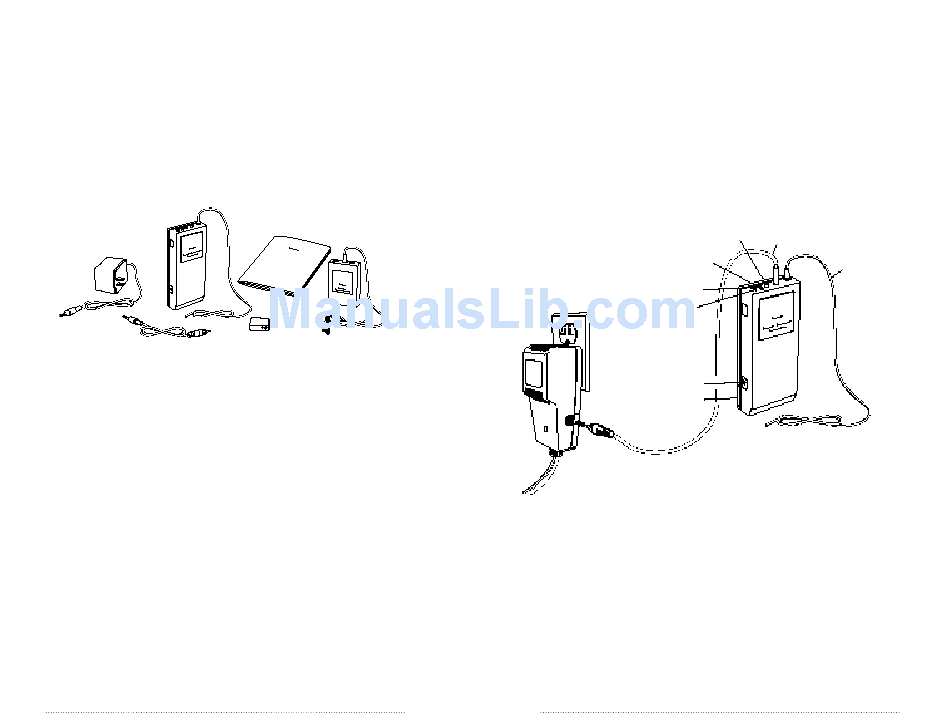

CHECKLIST OF PARTS
Your SoundStation Wireless Microphone System includes the following items:
Receiver
AC Power Adapter
3.5 mm Jack
RCA Cable
RCA Jack
If any of the above parts are missing, please contact your Lucent Technologies representative or
Lucent Technologies authorized dealer.
SoundStation and SoundStation EX Audioconferencing Systems and Wireless Microphone System User's Guide
Softwire Antenna
User's Guide
Transmitter
Battery (9 V)
Microphone
3 –2
TO SET UP THE SYSTEM
Receiver
1. Power the Receiver by plugging the AC power adapter jack into the POWER Jack (6) on top of
the Receiver, then plug the AC power adapter into a 110 V AC socket.
2. Use the RCA cable to connect one end of the 3.5 mm jack to the OUTPUT Jack (5) on the
Receiver and the other end to the AUX connector on the SoundStation Wall Module.
3. When the system is in use, the SOFT WIRE ANTENNA (2) on the Receiver should be fully
extended to obtain maximum range.
4. Turn the Receiver's ON/OFF Switch (7) to the ON position.
(6) Power Jack
(8) Low Battery LED
(7) On/Off Switch
(4) Signal LED
(3) Mute Adjustment
(1) Battery Compartment
(on the bottom)
SoundStation and SoundStation EX Audioconferencing Systems and Wireless Microphone System User's Guide
(5) Output Jack
(2) Softwire Antenna
3 –3
