VIA Technologies AMOS-5210 Quick Manual

AMOS-5210
Quick Guide
Key Features:
• Fanless operation
• Quick installation and easy maintenance
• Modularized design with compact
dimension
• Easy to use, interchangeable and
customizable front and rear panels
Built-in common I/O functional cutouts
•
for an easy external access
P/N: 99G51-013024-10

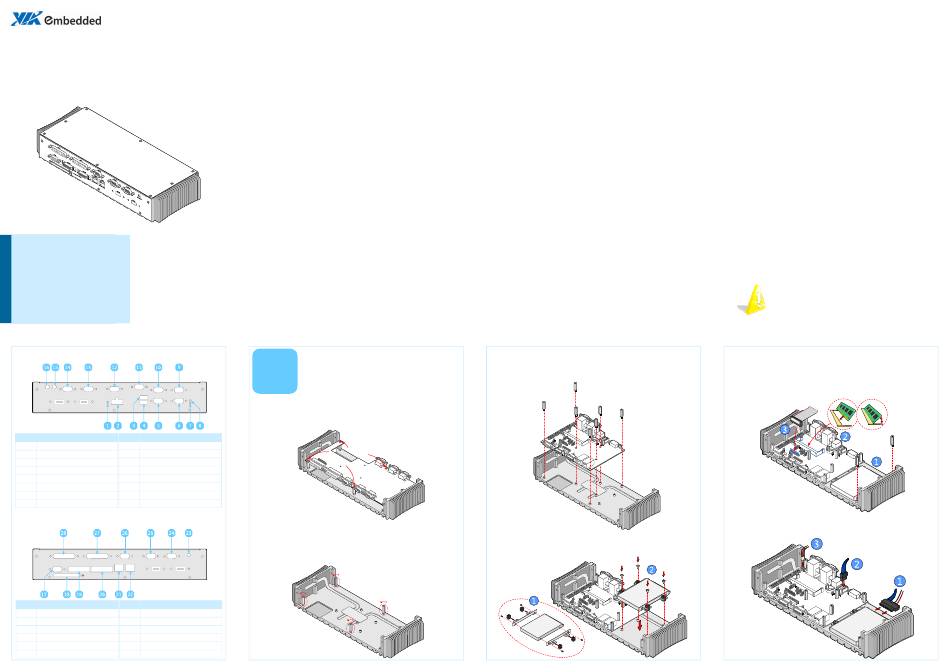

Front I/O cutout layout
Item Description Item Description
1 Power button (Power On/Off) 9 COM3 port (RS-232)
2 DC-in power input connector 10 COM4 port (RS-232)
11 GPIO port
3 USB 2.0 port 1 (USB1)
12 COM5 port (RS-232/422/485)
4 USB 2.0 port 2 (USB2)
5 COM2 port (RS-232/422/485) 13 COM6 port (RS-232/422/485)
6 COM1 port (RS-232/422/485) 14 COM7 port (RS-232/422/485)
7 Power LED indicator 15 Mic-in jack
16 Line-out jack
8 HDD LED indicator
Rear I/O cutout layout
Item Description Item Description
17 VGA port 23 WLAN antenna hole
18 CompactFlash slot 24 COM10 (RS-232/422/485)
19 LVDS port 1 (LVDS1) 25 COM9 (RS-232/422/485)
20 LVDS port 2 (LVDS2) 26 COM8 (RS-232/422/485)
21 RJ-45 GigaLAN port 2 (LAN2) 27 LPT port 2 (LPT2)
22 RJ-45 GigaLAN port 1 (LAN1) 28 LPT port 1 (LPT1)
The VIA AMOS-5210 is a rugged chassis kit, specially designed for VIA
EITX-3000 Em-ITX board stacked with EMIO-3210 Em-IO module. The
chassis kit offers fast and easy assembly. It consists of three parts: front
and rear I/O access plates, and the top cover.
The modularity of AMOS-5210 chassis kit combines with heatsink found
on EMIO-3210 board forming a solid and robust system chassis . And it
gives the developers a wealth of advantages including rich and versatile
I/O configurations through its expansive dual I/O coastline.
A system with the combination of AMOS-5210 chassis kit, EITX-3000
board and EMIO-3210 module can supports up to ten serial ports
(eight RS-232/422/485 ports are configurable in BIOS setup) and two
parallel ports. The combination is ideally suited for Kiosk and industrial
automation embedded applications.
Specifications:
Chassis Construction:
•
▪ Front and rear I/O metal face plate
▪ Top cover metal plate
▪ Aluminum bottom chassis housing mixed
copper heat-pipe (installed with EITX-3000
board)
Front I/O support:
•
▪ 2 x 3.5Φ Audio jacks (default audio cable)
− Line-out and Mic-in
▪ 7 x Serial ports (COM ports)
− D-Sub 9-pin COM connector
− COM1 ~ COM4 (two RS-232 and two
RS-232/422/485) from EITX-3000
− COM 5 ~ COM 7 (three RS-232/422/485)
from EMIO-3210
▪ 1 x GPIO port (default GPIO cable connector)
− D-sub 9-pin GPIO male connector
▪ 2 x USB ports (onboard USB connector)
− USB 2.0 compliant
Installing EITX-3000,
1
2.5" HDD & Memory
Step 1
Remove the four screws indicated by the red arrows and carefully lift
the EMIO-3210 module off the heatsink.
Step 2
Remove the four spacers indicated by the red ovals. Turn the spacers in
the counterclockwise direction to loosen.
▪ 1 x DC-in port (onboard power input)
− 2-pole Phoenix power input
▪ 1 x ATX Power On/Off button
▪ 1 x Green LED indicator (Power On/Off status)
▪ 1 x Red LED indicator (HDD activities status)
Rear I/O support:
•
▪ 1 x VGA connector
− D-sub 15-pin VGA connector
▪ 2 x LVDS connectors
− DB-26 connectors as LVDS1 and LVDS2
▪ 2 x GigaLAN connectors
− RJ-45 connectors
− GigaLAN connectors as LAN1 and LAN2
▪ 2 x Parallel ports
− D-Sub 25-pin parallel ports (LPT1 and LPT2)
▪ 3 x Serial ports (COM ports)
− D-Sub 9-pin COM connector
− COM8 ~ COM10 (three RS-232/422/485)
from EMIO-3210
Board-level support:
•
▪ Compatible with VIA EITX-3000 embedded
board and EMIO-3210 module
Drive bay:
•
▪ Default support 1 x 2.5" hard disk drive bay
located on the aluminum bottom housing
(from EMIO-3210)
▪ Default support 1 x CompactFlash (CF) socket
(from EITX-3000)
Mounting (optional):
•
▪ Supports table mounting and wall mounting
Dimension after assembly:
•
▪ 330.6 mm (W) x 54.2 mm (H) x 124.8 mm (D)
Weight (front, rear and top cover plates):
•
▪ 0.7 kg
Step 3
Align the EITX-3000 board over the mounting holes and secure it to
the heatsink using the seven medium length spacers.
Step 4
After the hard disk brackets have been attached to the hard disk,
mount the brackets to the heatsink. Secure the brackets in place with
the four bracket screws.
Barebones weight (after assembly):
•
▪ 2.4 kg (plates and aluminum bottom housing)
• Operating Temperature:
▪ 0˚C up to 45˚C (system equipped HDD)
▪ -20˚C up to 55˚C (system equipped CF card)
Storage Temperature:
•
▪ -20˚C up to 60˚C
Relative Humidity:
•
▪ 0 % to 90 % @ 45˚C, non-condensing
EMC approved:
•
▪ CE, FCC, CCC Class A
• Safety approved:
▪ CB, CCC
Packing List:
1 x Front I/O plate (P/N: 99G42-091676-A1)
•
1 x Rear I/O plate (P/N: 99G42-091686-A1)
•
1 x Top cover plate (P/N: 99G42-091666-A1)
•
2 x Hex spacer kit (P/N: 99G44-030221)
•
1 x Screw pack (P/N: 99G44-030231)
•
− 23 x M*3.5 mm screws
1 x GPIO cable (P/N: 99G33-080185)
•
1 x Audio jacks cable (P/N: 99G33-09039A)
•
1 x CF cover (P/N: 99G42-090886-A0)
•
1 x SATA (data and power) cable (P/N: 99G33-02093F)
•
1 x Antenna cover (P/N: 99G43-120011)
•
1 x Quick guide (P/N: 99G51-013024-10)
•
Note:
Please ensure that all items in the packing list are present
before using this product. If any of the items are missing or
damaged, contact your distributor or sales representative
immediately.
Step 5
Install the long spacers. After that, insert the memory module into the
SODIMM socket at the 45 degrees angle and push down until the
memory module snaps into place. Then attach one end of the LPT
cable to LPT pinhead connector on the EITX-3000 board.
Step 6
Connect the SATA (power and data) cables to the hard disk and onto
the EITX-3000 board connector.
