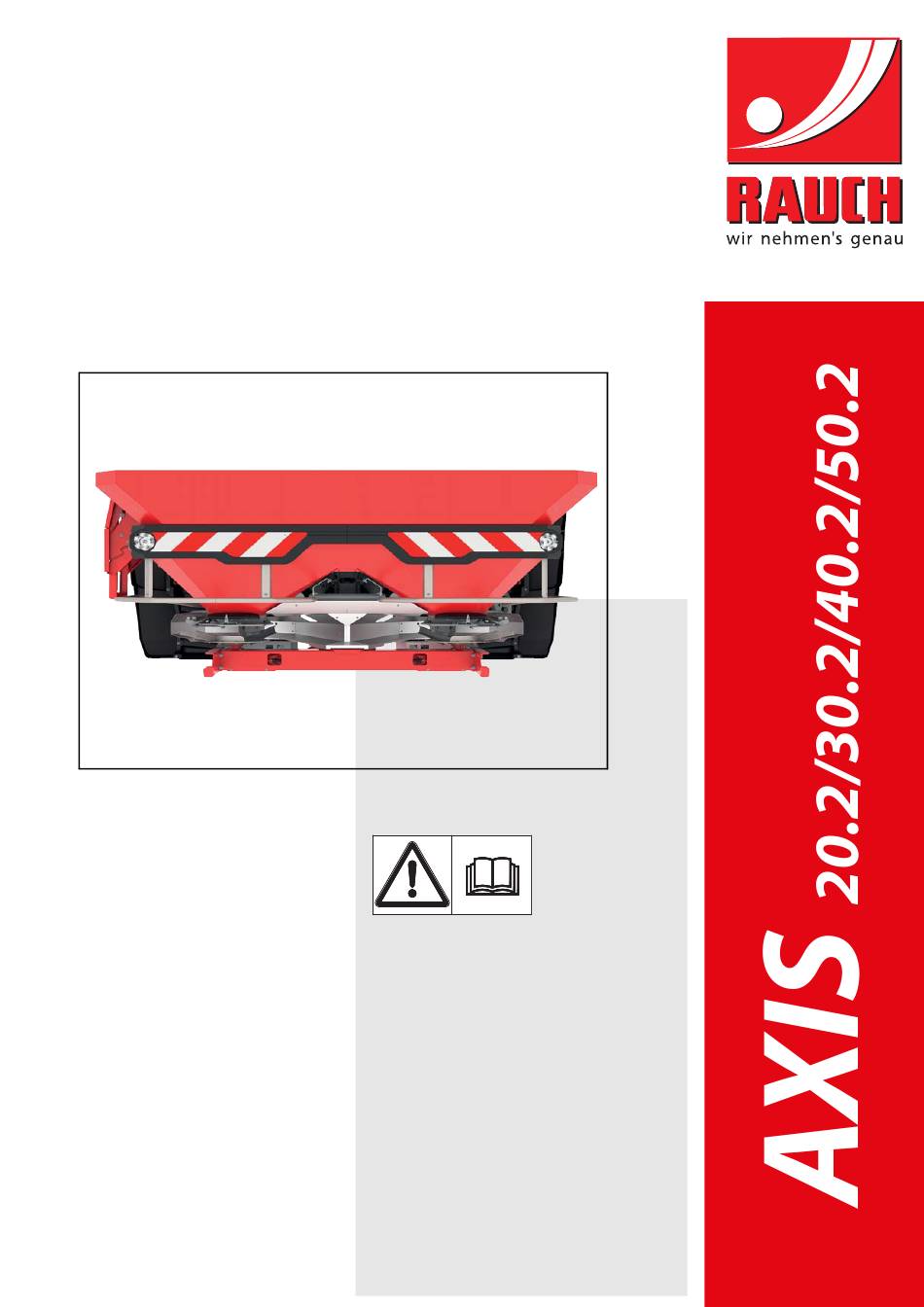

INSTRUCTION MANUAL
Please read carefully
before using the ma-
chine.
Keep for future reference.
This instruction manual/assembly in-
struction is to be considered as part of
the machine. Suppliers of new and se-
cond-hand machines are required to
document in writing that the instructi-
on manual/assembly instruction was
delivered with the machine and han-
Original instructions
ded over to the customer.
a
5901540-
-en-0815
