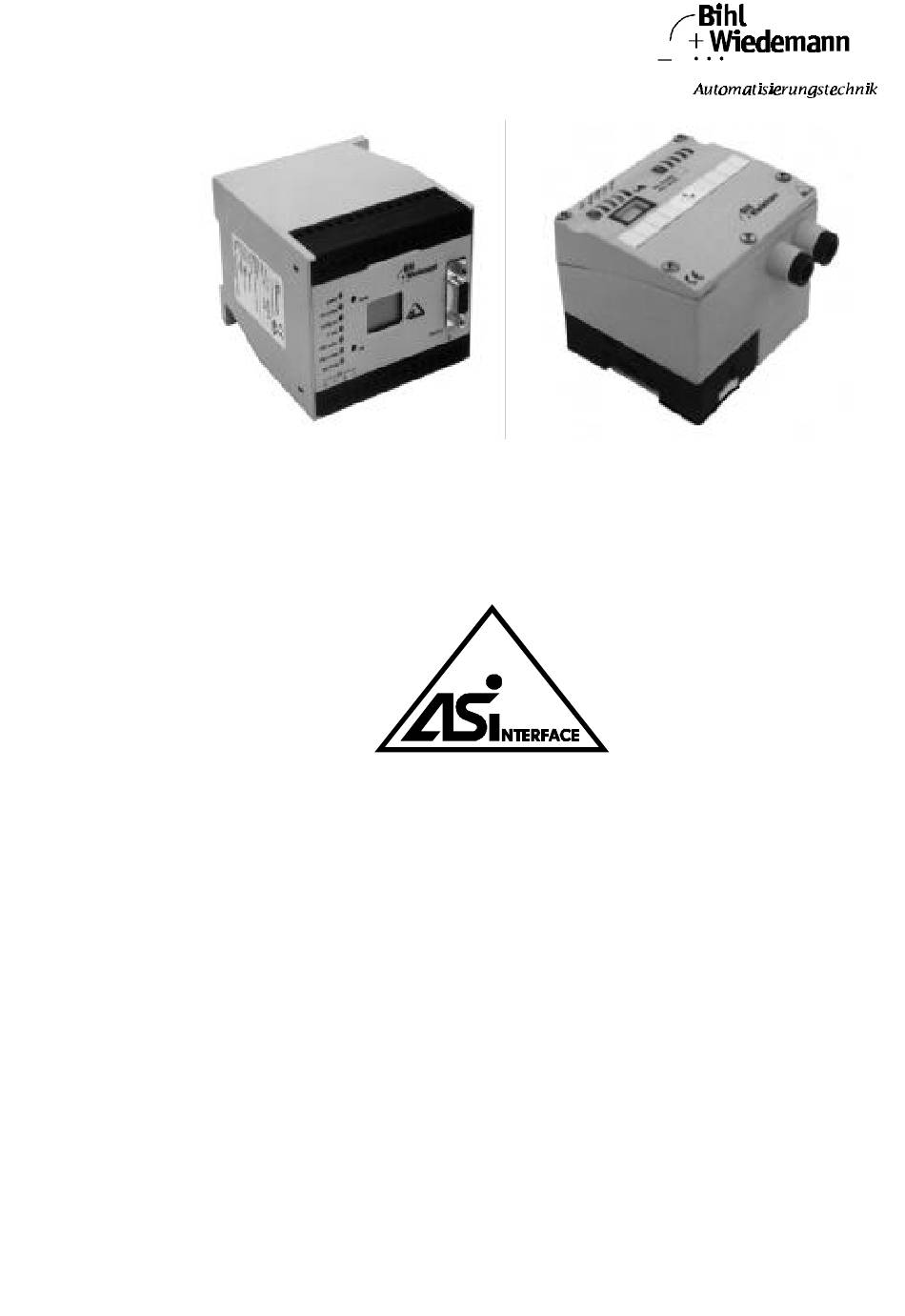

  • Page 1 AS-i/Modbus Gateways User Manual...

  • Page 3: Table Of Contents

    6.6.2 Manual Address Assignment .................. 34 Adjusting the Modbus-Address and Interface-Configuration ......35 Error Messages ..................... 36 Subject to reasonable modifications due to technical advances. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 4 Appendix: Displays of the Figure Display ........... 57 Appendix: The First Commissioning of AS-i ........59 Subject to reasonable modifications due to technical advances. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 5 AS-i Complete Specification (EN50295) Prüfungsordnung für AS-i Master Manufacturer: Bihl+Wiedemann GmbH Date: 16.06.98 Bernhard Wiedemann Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Phone +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 6 AS-i/Modbus Gateway Declaration of Conformity Subject to reasonable modifications due to technical advances. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 7: The Used Symbols

    This symbol gives the user important hints. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 8 AS-i/Modbus Gateway The Used Symbols Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 9: Safety

    The operator is responsible for the observance of local safety stan- dards. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 10 AS-i/Modbus Gateway Safety Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 11: General Information

    2 AS-i networks with Master power supply N offer the possibility to operate two AS-i networks with only one gateway and only one AS-Interface power supply. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 12 The gateways for cabinet mounting can be delivered with RS 232, RS 485 or RS 422 to interface the Modbus. The handling of the AS-i/Modbus gateway in IP65 is identically with the AS-i/Modbus gateway in IP20. The high protection category IP 65 makes the device suitable for ap- plications in the extremee industrial environments frequently encountered in the field.

  • Page 13: Connections, Displays And Operating Keys

    AS-i cable like all the other AS-i components at any place. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 14: Single Masters In Ip20 With Power Supply A

    • GND, Ground terminal, used for better EMC. Should be connected with a short wire to machine GND. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 15: Single Masters In Ip20 With Power Supply N

    GND Ground terminal, used for better EMC. Should be connected with a short wire to machine GND. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 16 29.5 - 31.6 V DC PELV according to EN 60950 (Protective extra low voltage) Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 17 10 A PELV according to EN 60950 (Protective extra low voltage) Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 18: Double Master In Ip20 With Power Supply A

    The AS-i master is powered out of AS-i circuit 1. Master power supply and AS-i network are then decoupled with coils. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 19 10 A AS-i PELV according to EN 60950 power supply (Protective extra low voltage) Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 20 In the wiring schemes above the current through the AS-i master must not exceed 5 A. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 21: Double Master In Ip20 With Power Supply N

    AS-i network. You get optimum results with a 30 V DC voltage source. This variant requires only one power supply for 2 AS-i circuits! Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 22 PELV according to EN 60950 supply 31 AS-i Slaves (Protective extra low voltage) Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 23 AS-i Slave AS-i Master power power supply supply AS-i Slave AS-i power supply Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 24: The Serial Interfaces

    4.2.1 AS-i/Modbus Gateway with RS 485 The AS-i/Modbus gateway with RS 485-interface sends and receives on pins 3 and 8 of the sub-D socket. The RS 485 signal “A” is assigned to pin 3 and signal “B” to pin 8.

  • Page 25: As-I/Modbus Gateway With Rs 232C

    AS-i Master 4.2.3 AS-i/Modbus Gateway with RS 232C The AS-i/Modbus gateway with RS 232C-interface sends on pin 2 of the sub-D con- nector (“RxD” signal) and receives on pin 3 (“TxD” signal). Pin 5 of the sub-D connec- tor carries the signal ground.

  • Page 26: Display And Operating Elements

    Display and Operating Elements On the front panel of the AS-i/Modbus gateway are seven light-emitting diodes, a two- digit display and two push buttons. With the devices in IP65 the push buttons are situated inside of the housing to avoid liquids from entering.

  • Page 27: Leds Of The Double Masters

    The AS-i master is in configuration mode. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 28 AS-i/Modbus Gateway Connections, Displays and Operating Keys Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 29: Advanced Diagnostics For As-I Masters

    Phase when a configuration error on the AS-Interface occurs. In this Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 30 The parameterization of off-line phase on configuration error is also supported by the AS-i Control Tools version 3.0. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 31: Operating The As-I/Modbus Gateway

    1. Activation phase and the start of normal operation maybe so short that the numbers can not be seen in the display. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 32: Configuration Mode

    In the protected operating mode, only AS-i slaves that are projected and whose actual configurations match the nominal configurations will be activated. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 33: Configuration Errors In Protected Operating Mode

    When you release the button, the display continues to display the detected slaves. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 34: Programming The Address In Case Of Configuration Errors

    (chapter 9). When all faulty assignment are eliminated the display is empty. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 35: Adjusting The Modbus-Address And Interface-Configuration

    As default, Modbus-address 1, baud-rate 9600 bps, no parity and one stop-bit is cho- sen (40). While changing these parameters no Modbus-communication is available. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 36: Error Messages

    50 and are therefore outside the slave address range. These codes are described in the appendix, chapter 9. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 37: Operation Via Modbus

    Seen from the AS-Interface, the AS-i/Modbus gateway is an master, because it ini- tiates AS-i communication and the AS-i slaves only respond. On the side of Modbus the AS-i/Modbus gateway only reacts after an query from an Modbus-Master. Therefore it is an Modbus-slave.

  • Page 38: Modbus Functions

    This function allows to read the value of read/write-registers. In the case of AS-i/Modbus gateway it is possible to access the projected data of the AS-i circuit (PP, PCD and LPS), the actual configuration, the user-memory of AS-i Control and the registers to initiate functions of the AS-i master.

  • Page 39: Function 4: "Read Input Registers

    Function for setting of several discrete outputs. query message: q,lo q,hi response message: r,lo r,hi Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 40: Function 16: "Preset Multiple Registers

    In the lower 4 bits the functions Write_Parameters() and Execute_Command() place the slave-response. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 41: Function 8: "Diagnostics

    “Normal_Operation_Active” execution control flag “APF/not APO” execution control flag “Offline_Ready” Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 42 “return slave busy count” and “return bus character overrun count”) were returned, but with the value zero. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 43: Function 65: User Defined Function #1

    AS-i/Modbus Gateway Operation via Modbus 7.3.12 Function 65: user defined function #1 This function is used to read the name and version of AS-i/Modbus gateway: query message: q,lo q,hi response message: r,lo r,hi Defines the part of version-information. Number of data-bytes D1 to DB ...

  • Page 44: Function 67: User Defined Function #3

    First address of program-bytes to read. 16 program-bytes. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 45: Address-Table Of The Modbus Interfaces

    The discrete outputs of a Modbus slave can be read by function 1 and manipulated by function 5 and 15. In the case of AS-i/Modbus gateway it is possible to access the output-data (actuator- data) of the AS-i circuit, the LPS (List of projected-slaves) and the host interface flags.
  • Page 46 31, connector P0 slave 31, connector P1 slave 31, connector P2 slave 31, connector P3 Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 47: Discrete Inputs ("Nputs")

    The discrete inputs of a Modbus slave can be read by function 2. In the case of AS-i/Modbus gateway it is possible to access the input data (sensor da- ta) of the AS-i circuit, the LAS (List of active slaves), the LDS (List of detected slaves) and the flags of Execution-Control.

  • Page 48: Read/Write-Registers ("Holding Registers")

    The read/write-registers of a Modbus slave can be read by function 3 and manipulat- ed by the function 6 and 16. In the case of AS-i/Modbus gateway in these registers the project data for the AS-i circuit, the user memory of AS-i Control and the registers for function execution resides.
  • Page 49 AS-i slave 15 AS-i slave 16 AS-i slave 17 AS-i slave 30 AS-i slave 31 Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 50 M 1 byte M 2 byte M 125 byte M 126 byte M 127 Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 51 AS-i slave 15 AS-i-Slave 16 AS-i slave 17 AS-i slave 30 AS-i-Slave 31 Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 52 “Auto_Address_Available” “Configuration_Active” “Normal_Operation_Active” “APF / not APO” “Offline_Ready” “Data_Exchange_Active” (inverted!) “Off-line” “Auto_Address_Enable“ (inverted!) Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 53 1007 Disable front panel buttons 1008 Modbus watchdog 1009 Start/stop of control program Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 54: Read-Only-Registers ("Input Registers")

    If a value different from zero is written to register 1007, the buttons on the front panel of the AS-i/Modbus gateway will be disabled. Until a zero is writ- ten to this register or the master is restarted, operation is only possible via Modbus.
  • Page 55 Data element “Config_OK” “LDS.0” “Auto_Address_Assign” “Auto_Address_Available” “Configuration_Active” “Normal_Operation_Active” “APF / not APO” “Offline_Ready” Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 56 (2 to 2 ) the I/O-configura- tion. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 57: Appendix: Displays Of The Figure Display

    Error while changing slave address in protected operating mode: The config- uration error caused by one slave too many (instad by missing slave). Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 58 AS-i/Modbus Gateway Appendix: Displays of the Figure Display Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...

  • Page 59: Appendix: The First Commissioning Of As-I

    The addresses of all slaves detected are now displayed sequentially. Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
  • Page 60 “prj mode” LED goes out. The configuration of the master is now finished. Subject to reasonable modifications due to technical advance. Copyright Bihl+Wiedemann, Printed in Germany Bihl+Wiedemann GmbH · D-68199 Mannheim · Tel. +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de...
