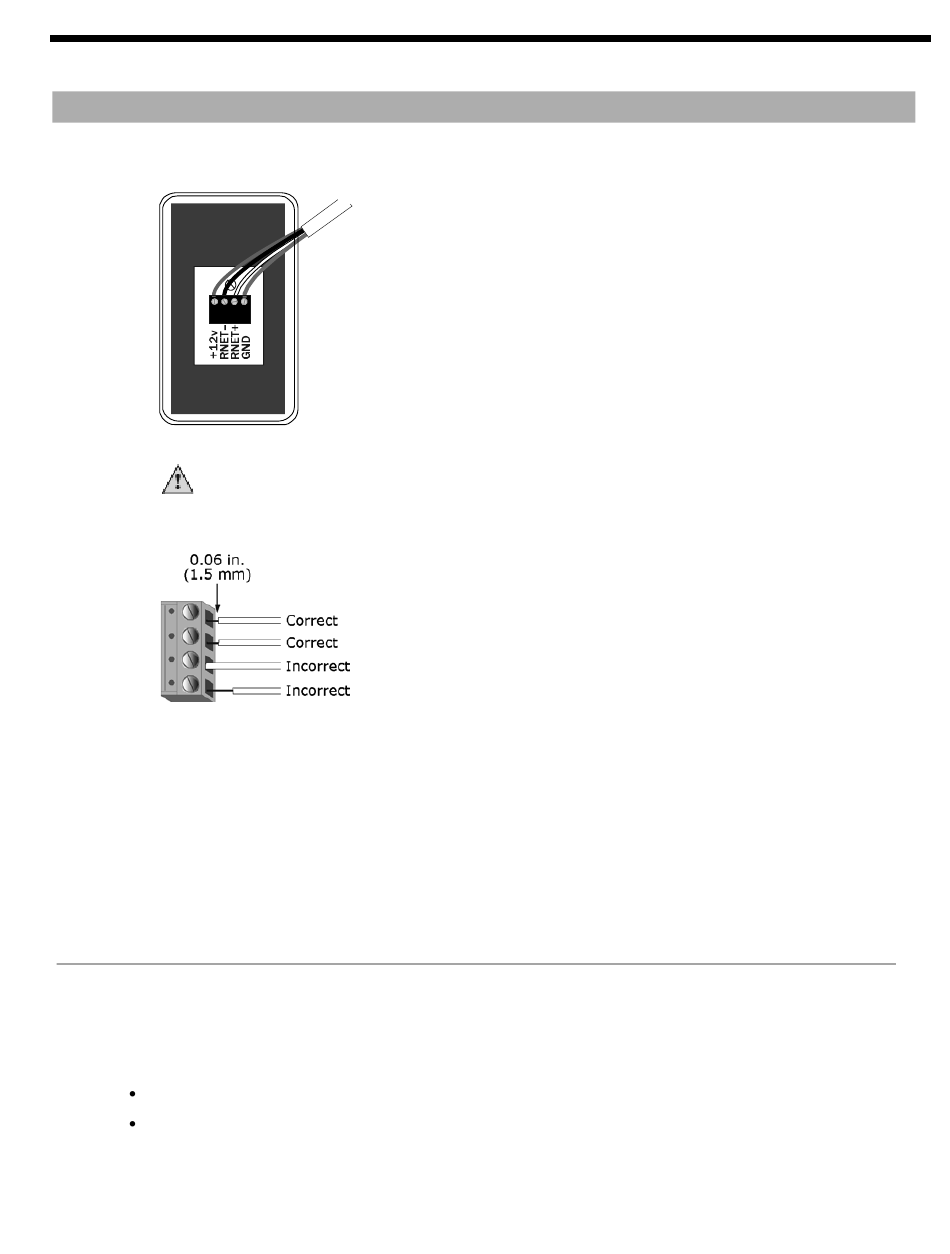

Insert the other 4 wires into the ZS Sensor's screw terminal connector. If wiring 2 cables, insert like-colored
8
wires into each terminal.
CAUTION Allow no more than 0.06 inch (1.5 mm) bare communication wire to protrude. If bare
communication wire contacts the cable's foil shield, shield wire, or a metal surface other than the terminal
block, the device may not communicate correctly.
Specifications for ZS zone sensors
Attach the sensor's cover and circuit board to the mounted backplate, inserting the top first.
9
10 Turn the setscrew counterclockwise until the cover cannot be removed.
11 Turn on the controller's power.
NOTE Use the same polarity throughout the Rnet.

To communicate through a ZS zone sensor's local access port

You can connect to the Local Access port of a ZS zone sensor to perform test and balance or to make changes to
any device on the network.
PREREQUISITES
A computer with a USB port
A USB Link Kit
AURORA UPC ZS ZONE SENSORS INSTALLATION GUIDE
OEMCtrl® recommends that you use the
following Rnet wiring scheme:
Connect this To this
w w ire... terminal...
Red +12V
Black RNET-
White RNET+
Green GND
