AURORA UPC ZS ZONE SENSORS INSTALLATION GUIDE
ZS zone sensors

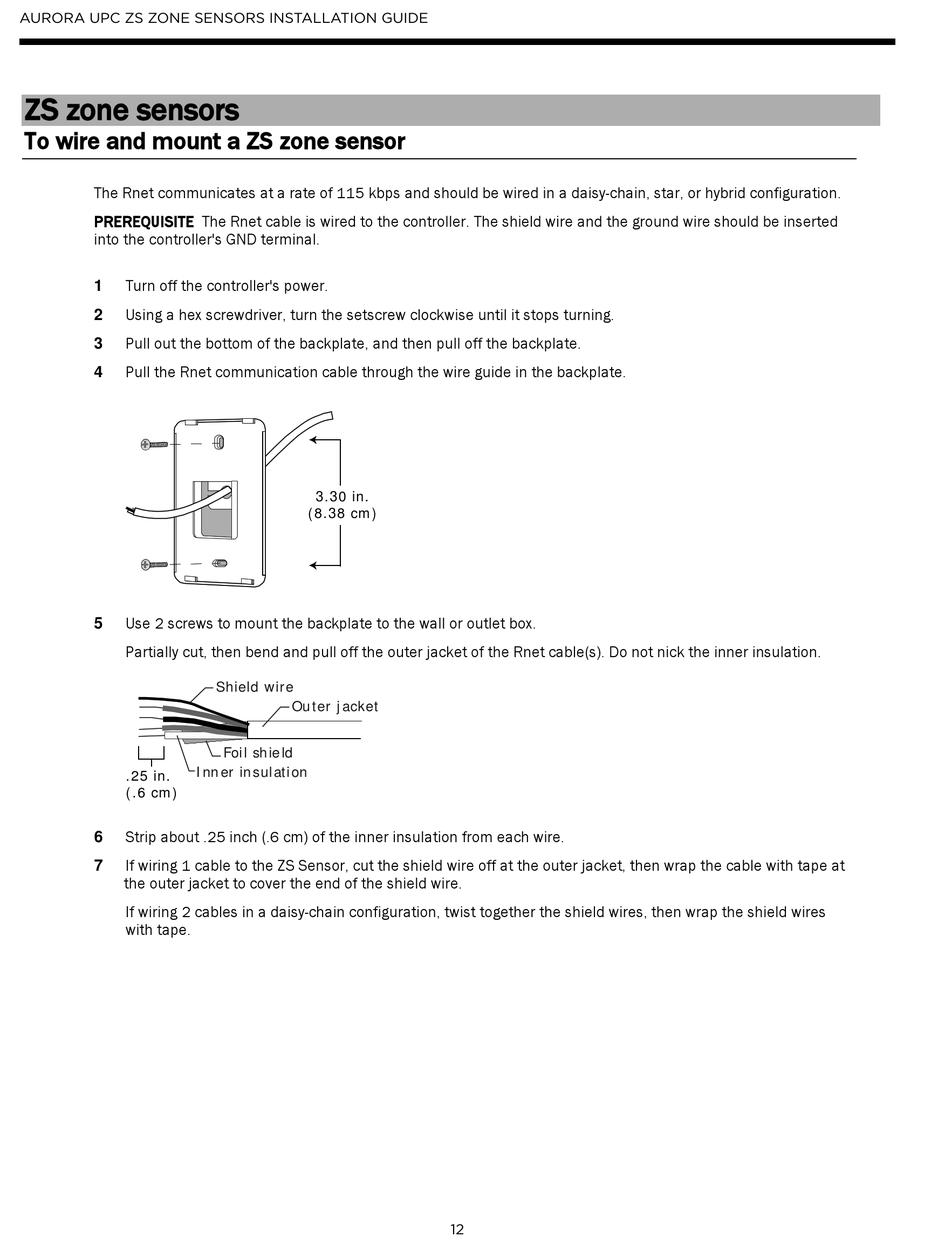

To wire and mount a ZS zone sensor

The Rnet communicates at a rate of 115 kbps and should be wired in a daisy-chain, star, or hybrid configuration.
PREREQUISITE The Rnet cable is wired to the controller. The shield wire and the ground wire should be inserted
into the controller's GND terminal.
Turn off the controller's power.
1
Using a hex screwdriver, turn the setscrew clockwise until it stops turning.
2
Pull out the bottom of the backplate, and then pull off the backplate.
3
Pull the Rnet communication cable through the wire guide in the backplate.
4
Use 2 screws to mount the backplate to the wall or outlet box.
5
Specifications for ZS zone sensors Partially cut, then bend and pull off the outer jacket of the Rnet cable(s). Do not nick the inner insulation.
Inner insulation
.25 in.
(.6 cm)
Strip about .25 inch (.6 cm) of the inner insulation from each wire.
6
If wiring 1 cable to the ZS Sensor, cut the shield wire off at the outer jacket, then wrap the cable with tape at
7
the outer jacket to cover the end of the shield wire.
If wiring 2 cables in a daisy-chain configuration, twist together the shield wires, then wrap the shield wires
with tape.
3.30 in.
(8.38 cm)
Shield wire
Outer jacket
Foil shield
12
