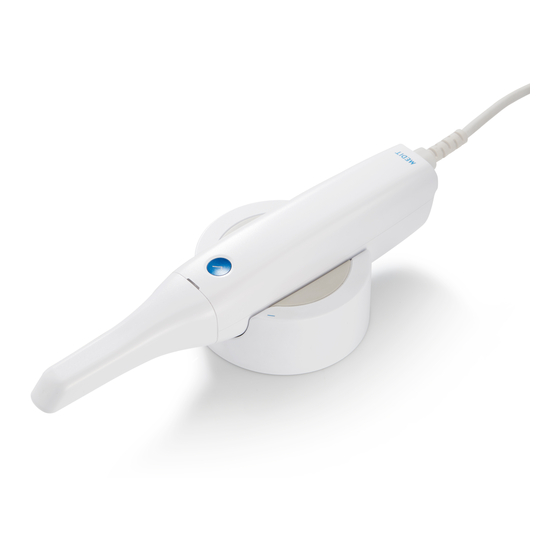

Medit i500 Installation Manual
Hide thumbs
Also See for i500:
- User manual (408 pages) ,
- Function manual (53 pages) ,
- Troubleshooting manual (16 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Medit i500
Summary of Contents for Medit i500
- Page 1 Medit i500 Installation February 23 , 2018 SQA of Medit Co., Ltd.
- Page 2 Contents Chapter 1 Product Package & Components Chapter 2 Product Installation 1) Preparing Console PC 2) Software Installation 3) Hardware Installation 4) UI & Device Status 5) Product Registration Chapter 3 Tip Treatment Chapter 4 Calibration...
- Page 3 Chapter 1 Product Package & Components (1/2) Medit i500 (+Power Hub) Calibration Tool Desktop Cradle Wall Mount Holder Installer & Manual Medical Adapter&Power Cable Reusable Tip USB 3.0 Cable...
- Page 4 Chapter 1 Product Package & Components (2/2) Item Q’ty Appearance Item Q’ty Appearance Medit i500 + Power Hub USB 3.0 Cable Reusable Medical Adapter + 1set Power Cord Desktop Cradle memory Including acquisition software Wall Mount Holder User Guide Calibration...
- Page 5 Chapter 2 Preparing Console PC Recommended specifications for Laptop Recommended specifications for Desktop Operating System Microsoft Windows 10 64 Bit (32 Bit – not Operating System Microsoft Windows 10 64 Bit (32 Bit – not available) available) Intel i7 7700 HQ or higher Intel i7 7700 or higher 16GB or higher 16GB or higher...
-
Page 6: Software Installation
NOTE : Please don’t connect Medit i500 at console PC, or Turn off the scanner if it is connected. • Run ‘Medit iScan’, and follow its instruction. • Please reboot the computer once the installation is complete. If not, Medit i500 is not properly working. Medit Scan installation... - Page 7 Chapter 2 Hardware Installation (1/2) USB3.0 Image USB 2.0 NOTE: Please make sure that Medit i500 must be connected at USB3.0 port...
- Page 8 Medit i500 Cradle & Holder The Medit i500 can be placed on Desktop Cradle or a Wall Mount Holder. Please put or hold Medit i500 on cradle or at wall mount holder when not using it. Placing on Desktop Cradle...
- Page 9 Chapter 2 A.Title Bar B.Guide Message C.Stage Bar D.View Screen E.Sub Tool Bar F. View Manipulator G.Command Option H.Main Tool Bar...
- Page 10 Indicates the tip is not mounted Connecting Indicates the i500 is trying to connect. Rebooting Indicates the i500 is rebooting. Mirror Heating Indicates the i500 is warming up Need Indicates the calibration process is Calibration necessary. Wait until the USB connection indicator turn on.
- Page 11 Chapter 2 (TBD)Product Registration Produce Registration Flow Image...
- Page 12 Tip Treatment (1/2) Reusable tip The i500 reusable tip is the part of the scanner that inserted into the patient’s mouth during scanning. The tip can be reused a limited number of times, but it must be cleaned and sterilized to avoid cross contamination among patients.
- Page 13 Chapter 3 Tip Treatment (2/2) CAUTION • Both its cleaning and undamaged surface are important for the scan quality. • The mirror should be handled with care. Do not scratch it. Be careful not to smudge it before scanning a patient. •...
- Page 14 Chapter 4 Calibration (1/2) 1. Prepare the Calibration Tool and Medit i500. 2. Turn the dial of calibration tool to the start position. 3. Put the tip into the calibration tool. 4. When the tip is mounted to the correct position, System automatically acquire the data from the start position.
- Page 15 Chapter 4 Calibration (2/2) Turn on the i500 and connect the device to software. Run Calibration Wizard from File Menu > Setting > Calibration. You can set the calibration period from File Menu >Setting > Calibration Period(Days). The default value of calibration period is 14 days.
- Page 16 www.meditcompany.com https://www.facebook.com/meditco support@meditcompany.com...
