LAUNCH
4 VOLUME +/- key
5 Microphone
6 Rear camera
7 Card slot
8 Earphone jack
9 USB port /Charging
slot
10 Speakers

1.3.3 X-431 V+ protection sleeve

Dismantling X-431 V+ protection sleeve
To remove protection sleeve from X-431 V+ main unit, follow the steps described
as below to proceed:
1. Pull the black sleeve outwards from the right margin of X-431 V+, and then
remove it completely.
2. Reverse the upper enclosure and then use the screwdriver to loosen all
screws.
3. Take out the lower enclosure from the upper enclosure.
4. Finally remove X-431 V+ Tablet PC from the upper enclosure.
Note: Reverse the above-mentioned steps to install X-431 V+ protection sleeve.
While mounting it, please pay more attention to the installation direction.

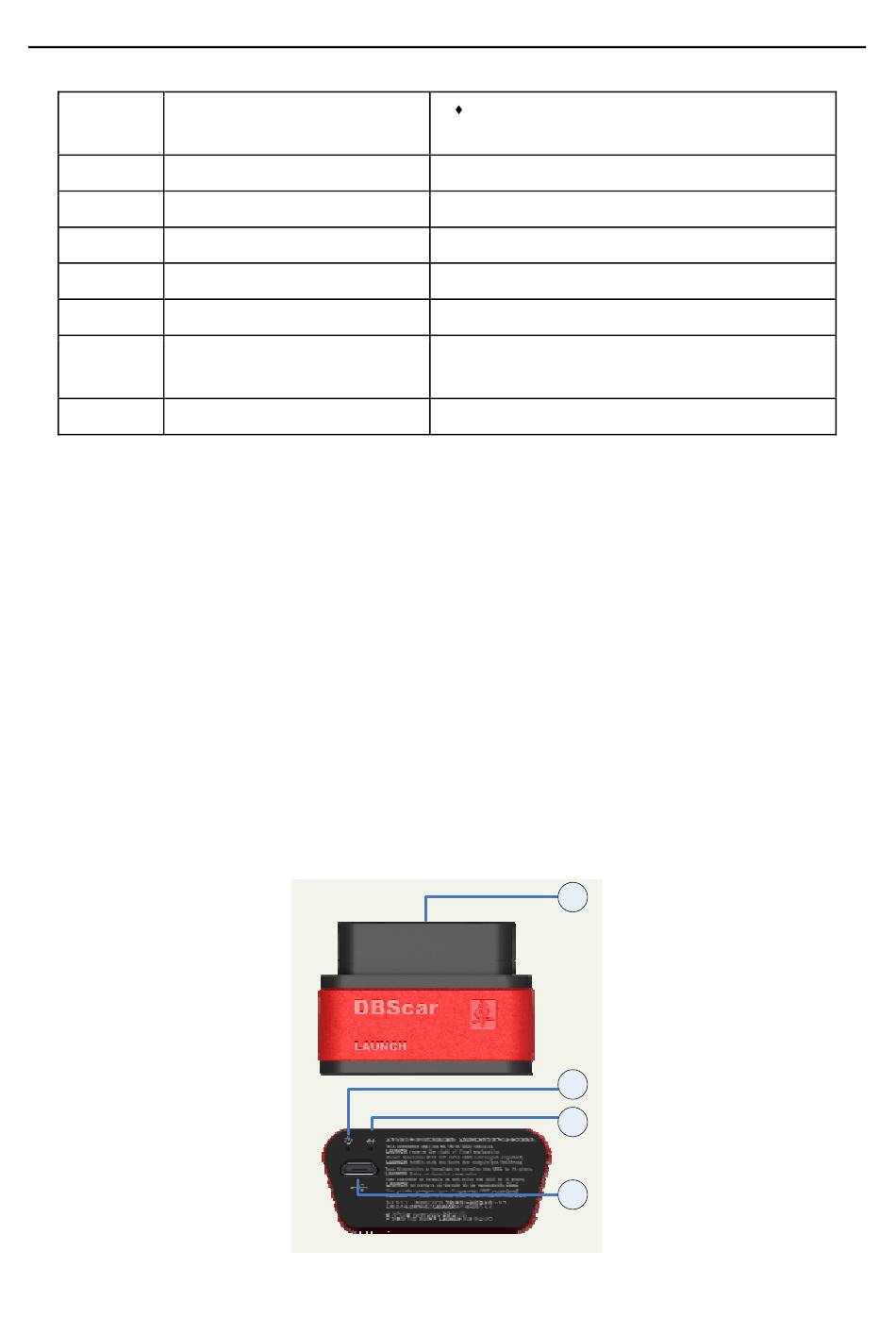

1.3.4 DBScar diagnostic connector (using with X-431 V+)

X-431 V+ User's Manual — Knowledge of X-431 V+
In On mode, press it to turn off
the LCD if the LCD lights up.
Used to adjust the volume.
