Delfield F5MC48D Specifications

F5 Serview Drop In F5 Serview Drop In F5 Serview Drop In

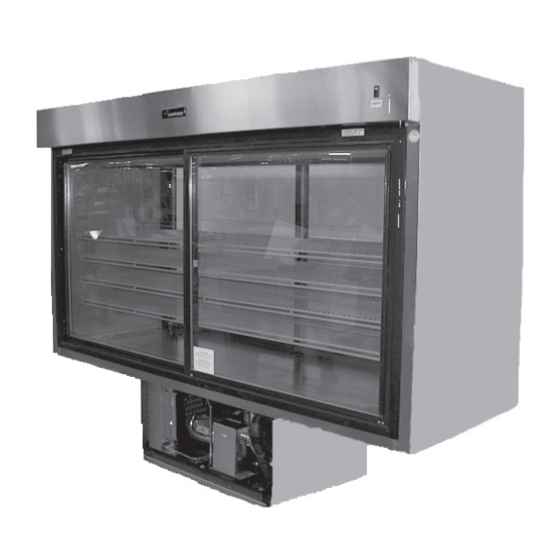

30" Deep Mirrored Self-Contained Refrigerated Display Cases 30" Deep Mirrored Self-Contained Refrigerated Display Cases
MODELS:
❑ F5MC48D 30" Deep Self-Contained Drop In
Display Section
❑ F5MC72D
30" Deep Self-Contained Drop In
Display Section
F5MC48D
SPECIFICATIONS
Display section exterior sides are made of 18-
gauge stainless steel. Exterior display section top
to be 22-gauge galvanized metal. Interior sides
are made of .095" thick ABS plastic with molded
shelf supports. The interior bottom is constructed
with stainless steel for long lasting durability.
Display section is fully insulated with high density
polyurethane foam between the interior and exte-
rior. Four adjustable epoxy coated wire shelves
are provided for the display section. An on/off
switch for the display section light(s) is located at
the right end of the front facing, above the display
section doors.
Display case refrigeration system consists of a
full-length top mounted coil with multiple fans
circulating the air throughout the cabinet utilizing
STANDARD FEATURES
• Display exterior sides are made of 18-gauge stainless
steel
• ABS plastic interior sides with molded shelf supports
• (4) adjustable epoxy coated wire shelves
• On/off switch for the display section light(s)
• Top mount coil with multiple fans circulating the air
throughout the cabinet
• Display section runs off a thermostatic control
• Sliding and removable self-closing .50" thick argon
filled, low-E, warm edge insert, thermopane glass doors
with left and right vertical gasket
• High density polyurethane foam throughout unit
• Single service display section with mirrored back
• Environmentally friendly HFC-404A refrigerant
• Door locks standard
a thermostatic control. An ABS plastic drip pan is placed
below the coil with a clear drain hose for running the
condensation to the lower base mechanical section.
Front of the display section is equipped with two sliding
and removable self-closing .50" thick argon filled,
low-e glass doors with a warm edge spacer. The vertical
outsides of each door tuck into an extruded channel
running vertically up each side. Front nosing to be
20-gauge stainless steel.
Self-contained models have a pre-wired condensing
unit housed in a 16-gauge cage hanging form the units
exterior bottom. Cage also is supplied with an 8' cord
and plug and electrical junction box. Electrical connec-
tions are 115V-60H-1PH.
Refrigeration system components are HFC-404A.
980 S. Isabella Road Phone: 800-733-8948
Mt. Pleasant, MI 48858 Fax: 800-669-0619
www.delfield.com Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
OPTIONS AND ACCESSORIES
❑ 48" shelf (48" long units only)
❑ 72" shelf (72" long units only)
❑ 220 volt/50 cycle - inclusion of this option will
alter specifications
Display cabinet blower coil assembly shall have a
coated evaporator coil and fans. Interior refriger-
ated base cabinet and display section to maintain 36
to 40 degree temperatures at 100-degree ambient
room temperature.
Back has 2" thick panel, constructed on 22-gauge
stainless steel interior, 2" of high-density polyure-
thane foam and 22-gauge galvanized steel exterior.
Interior of back panel has (2) angled glass mirrors.
