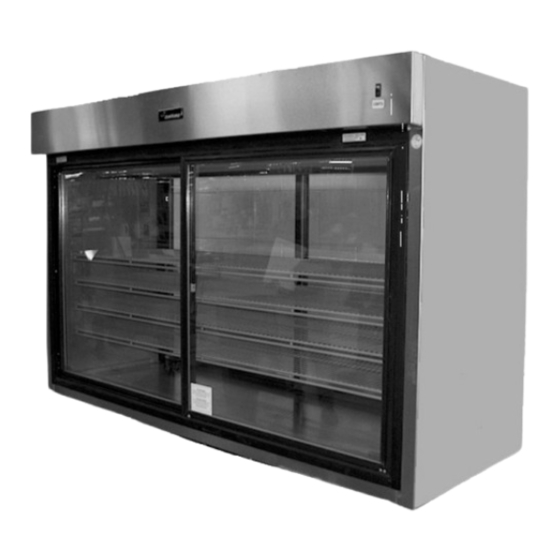

Delfield F5PR48N Specifications

F5 Serview Drop In
24" Deep Pass Through Remote Refrigerated Display Cases
MODELS:
 F5PR48N 24" Deep Remote Drop In
Display Section
 F5PR72N
24" Deep Remote Drop In
Display Section
F5PR48N
SPECIFICATIONS
Display section exterior sides are made of 18-
gauge stainless steel. Exterior display section top
to be 22-gauge galvanized metal. Interior sides
are made of .095" thick ABS plastic with molded
shelf supports. The interior bottom is constructed
with stainless steel for long lasting durability.
Display section is fully insulated with high density
polyurethane foam between the interior and
exterior. (4) Adjustable epoxy coated wire shelves
are provided for the display section. An on/off
switch for the display section light(s) is located at
the right end of the front facing, above the display
section doors.
Display case refrigeration system consists of a full-
length top mounted evaporator coil with multiple
fans circulating the air throughout the cabinet
STANDARD FEATURES
• Display exterior sides are made of 18-gauge stainless
steel
• ABS plastic interior sides with molded shelf supports
• (4) adjustable epoxy coated wire shelves
• On/off switch for the display section light(s)
• Top mount coil with multiple fans circulating the air
throughout the cabinet
• Display section runs off a thermostatic control
• Sliding and removable self-closing .50" thick argon
filled, low-E, warm edge insert, thermopane glass doors
with left and right vertical gasket
• High density polyurethane foam throughout unit
• Three adjustable epoxy coated shelves for each door
• Single service display section with mirrored back
• Environmentally friendly HFC-404A refrigerant
utilizing a thermostatic control. Refrigeration lines are
piped to a single point connection with expansion valve.
An ABS plastic drip pan is placed below the coil with a
clear drain hose for running the condensation to the
lower base mechanical section.
Front of the display section is equipped with two sliding
and removable self-closing .50" thick argon filled, low-
e glass doors with a warm edge spacer. The vertical
outsides of each door tuck into an extruded channel
running vertically up each side. Front and rear nosing
to be 20-gauge stainless steel.
Refrigeration system components are HFC-404A. Dis-
play cabinet blower coil assembly shall have a coated
evaporator coil and fans. Interior refrigerated base
cabinet and display section to maintain 36 to 40 degree
temperatures at 100-degree ambient room tempera-
980 S. Isabella Road Phone: 800-733-8948
Mt. Pleasant, MI 48858 Fax: 800-669-0619
www.delfield.com Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
OPTIONS AND ACCESSORIES
 48" shelf (48" long units only)
 72" shelf (72" long units only)
 Mirrored interior on pass-through doors (48")
 Mirrored interior on pass-through doors (72")
 220 volt/50 cycle - inclusion of this option will
alter specifications
ture. Electrical connections are 115V-60H-1PH; unit
must be hard wired to a junction box.
Back has (2) sliding and removable self-closing .50"
thick argon filled, low-e glass doors with a warm
edge spacer.
Approval _________________
Date____________________
