Aro series universal room controller

Advertisement

Quick Links

Models
Temp
ARO24T
ARO24TH
ARO24TGH
ARO24TGVH
AROB24T
AROB24TH
AROB24TGH
AROB24TGVH
* Networkable: BACnet MS/TP or Modbus (selectable using menu)
Description
IAQ and ECM fan control applications made easy! Introducing the
new ARO series universal room controller with onboard CO
VOC, temperature and humidity sensors, selectable application
control profiles, up to 4 simultaneous control loops, and seamless
control of a 0-10 Vdc ECM fan. All of this in one wall-mounted
room controller.
The AROB series networkable controller operates over an RS‐485
network using the BACnet MS/TP or Modbus protocol to
exchange information with a Building Management System.
Features
Onboard Sensors
Temperature sensor (°C/°F)
Humidity sensor (%RH), select models
VOC sensor (volatile organic compounds) select models
Carbon dioxide sensor (CO
Functions
Built-in application profiles to automatically configure the
controller for the selected application.
Up to 4 simultaneous control loops capable of controlling, in
real time:
o
Humidification and Dehumidification
o
Heating and Cooling
o
CO
levels
2
o
VOC levels
o
Integrated ECM fan control mode
Display or hide all the required access for user interaction
Four fully configurable outputs (2 AO and 2 BO)
Two universal inputs (2 UI)
Backlit LCD with simple icon and text-driven menus
Selectable Fahrenheit or Celsius scale
Precise temperature control with programmable PI function
Independent cool and heat setpoint for No Occupancy
Configurable proportional control band and dead band
ARO_Series_Installation-171018.docx
RH
CO2
VOC
Networkable*
), select models
2
ARO Series Universal Room Controller
Specification and Installation Instructions
,
2

Network Communication

(AROB series only)
BACnet® MS/TP or Modbus communication port
(selectable using menu)
Select MAC address using menu or network
Automatic baud rate detection
®
BACnet
MS/TP at 9600, 19200, 38400, 57600 or 76800 bps
Automatic device instance configuration
Copy and broadcast configuration to other controllers
Network service port through on-board mini USB connector
Modbus
Modbus at 9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)
Connects to any Modbus master
ARO Series
Page | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARO24T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Neptronic ARO24T

  • Page 1: Network Communication

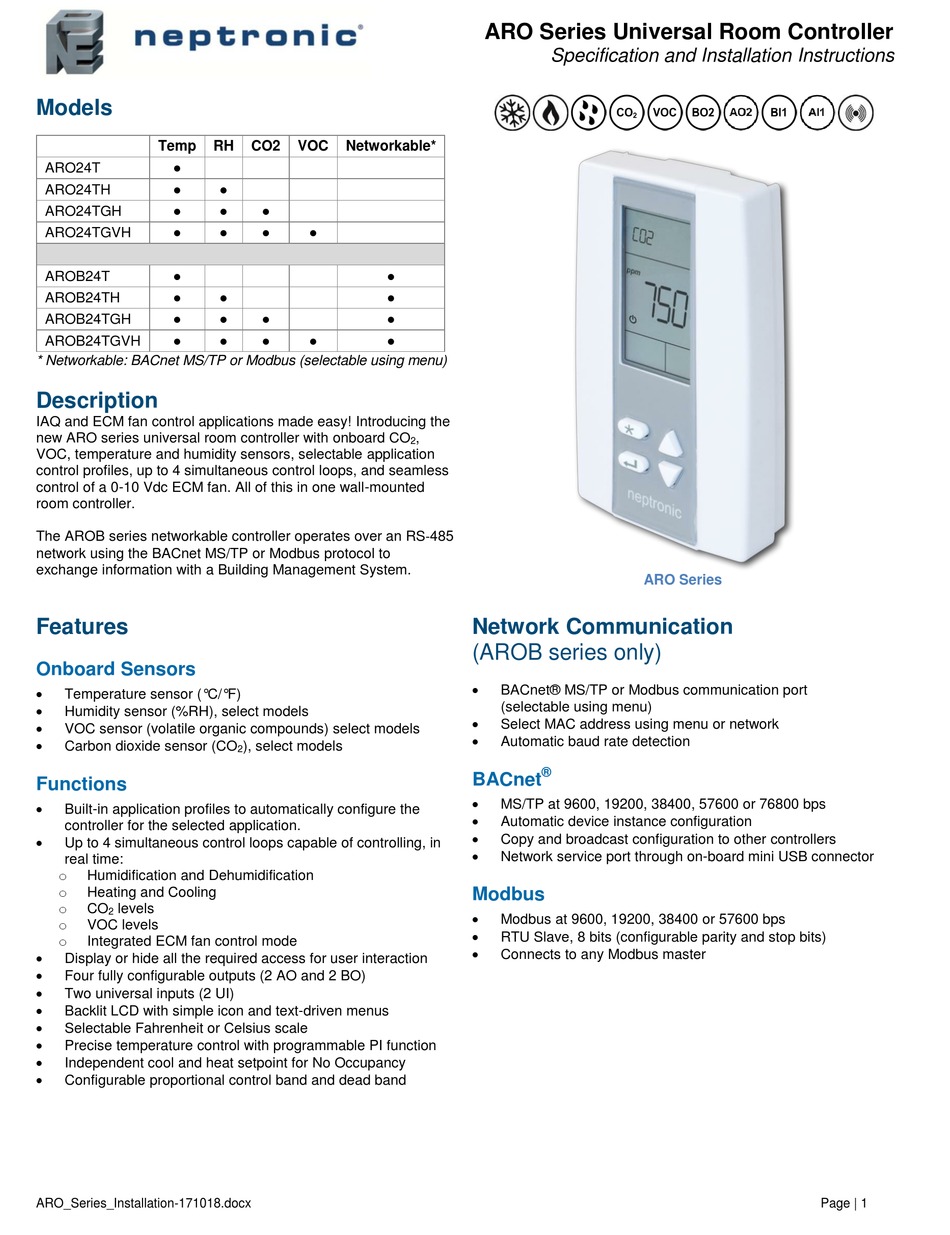

    ARO Series Universal Room Controller Specification and Installation Instructions Models Temp Networkable* ● ARO24T ● ● ARO24TH ● ● ● ARO24TGH ● ● ● ● ARO24TGVH ● ● AROB24T ● ● ● AROB24TH ● ● ● ● AROB24TGH ● ●...
