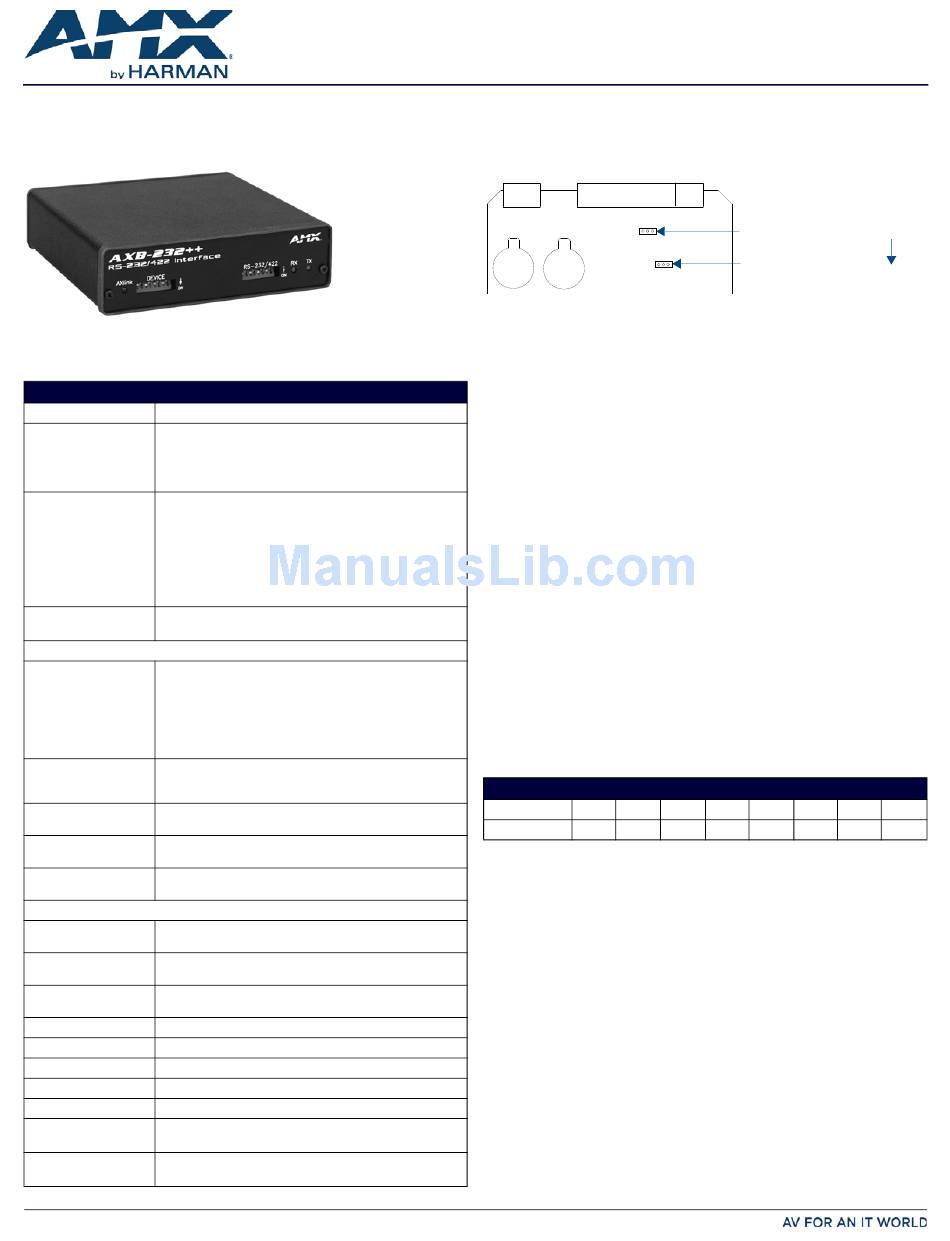

AMX AXB-232++ Quick Start Manual

Overview
The AXB-232++ (FG5761-10) can serve as a conventional RS-232/422 control port, it is also
able to run its own Axcess application program – an exclusive AMX product feature. Source
specific programming, such as video switchers, laserdisc players and video codecs, can be
handled by the AXB-232++ to deliver a modular solution for system programming.

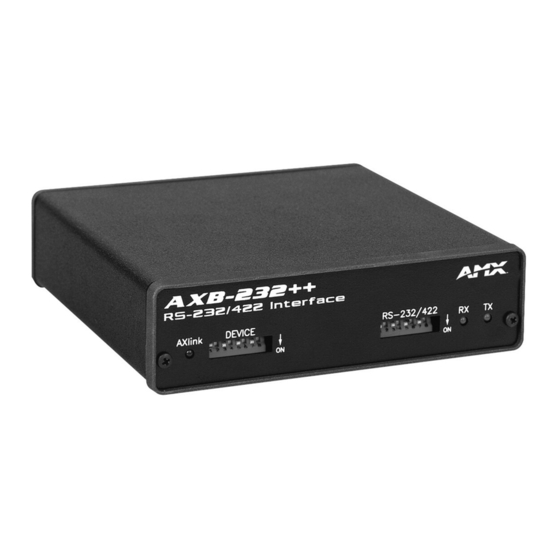

AXB-232++
FIG. 1
Specif ications
The following table lists the specifications for the AXB-232++.
SPECIF ICATIONS
Power 12 VDC @ 160 mA
Processor On board 32-bit processor and 384K (of non-volatile memory)
run Axcess programs independent of the control system. This
relieves the AxLink bus and controller for the processing time for
controlling those devices. (Requires Axcess Version 3.0 or
higher.)
Asynchronous data • Baud rates - 300, 600, 1200. 2400, 4800, 9600, 19200 and
standards 38400.
56400 is supported via the BAUDMED Send Command .
115200 is supported via the BAUDHIGH Send Command
(see the AXB-232++ Operation/Reference Guide for details).
• Data bits - 7, 8, and 9
• Stop bits - 1 and 2
• Parity - None, Odd, Even, Mark and Space
Buffers • 1KB input buffer
• 1KB AxLink buffer
Front Panel
AxLink LEDs Green AxLink status indicator:
• Full-Off indicates no power is being received or the controller
is not functioning properly.
• One blink per second power is active and AxLink
communication is functioning.
• Full-On indicates power is active and AxLink data
communication is not functional.
RX LED (Red) Blinks to indicate the AXB-232++ is receiving RS-232, RS-422,
or RS-485 data. The RX LED blinks even if the data being
received is incorrect.
TX LED (Red) Blinks to indicate the AXB-232++ is sending RS-232, RS-422, or
RS-485 data.
DEVICE An 8-position DIP switch used to set the device number for the
DIP Switch AXB-232++.
RS232/422 An 8-position DIP switch used to set the communication
DIP Switch parameters for the RS-232/422 device.
Rear Panel
Hardware handshaking An RTS/CTS data connector that can be wired for hardware
connector handshaking if called for by the controlled device (4-pin male).
RS422/232 connector A captive-wire connector wired for RS-422/232 data control
(8-pin male).
AxLink connector Receives power and data via the AxLink bus and AxLink system
controller 4-pin male).
Internal Jumpers Sets differential input termination and enables RS-485 output.
Supports XON/XOFF software and hardware handshaking
Dimensions (HWD) 1.5" x 5.5" x 5.5" (3.81 cm x 13.97 cm x 13.97 cm)
Weight 1.1 lbs. (498.95 g)
Enclosure Metal with black matte finish
Included • AxLink connector (4-pin female)
Accessories
• Phoenix connector (8-pin male)
Other AMX • CC-232 Control Cable
Equipment
• AC-RK Accessory Rack Kit
AXB-232++
Installation and Wiring
The AXB-232++ can be used as an independent RS-232/422/485-controlled interface by
setting the internal jumpers. Configure the communication parameters using the DIP switches
on the front panel.
Setting the Internal Jumpers
JP4
JP5
FIG. 2 LOCATION OF INTERNAL JUMPERS
Setting Jumper JP4 To Terminate RS-422 Input With 100 ohms
Terminating a device involves installing a 100 ohm line terminator, this is typically used to
achieve better communication and signal integrity. You will want to terminate when the
communication is at a high data rate or over a long distance.
Termination can be harmful because it increases the current in the line, and more radiation
that could interfere with signals.
Jumper JP4 places 100 Ohms termination across RS422 receive data pins 5 & 6:
1. Disconnect the RS-232/422/485 connectors.
2. Unscrew the two screws on the rear panel to remove the panel, and slide the circuit
board out of the enclosure.
3. Locate the JP4 jumper and install the jumper in the 'ON' position (default = OFF).
4. Slide the circuit board back into the enclosure and replace the rear panel.
5. Reconnect the RS-232/422/485 connectors.
Setting Jumper JP5 To Set The RS-422 Port for RS-485 Use
1. Disconnect the RS-232/422/485 connectors.
2. Unscrew the two screws on the rear panel to remove the panel, and slide the circuit
board out of the enclosure.
3. Locate the JP5 jumper and set jumper JP5 to the ON position (default setting is OFF).
4. Slide the circuit board back into the enclosure and replace the rear panel.
5. Reconnect the RS-232/422/485 connectors.
Setting the DIP Switches
Note: Use the DIPSwitch 2.0 application available for free download from AMX to quickly figure
out DIP Switch settings for all types of DIP Switches.
Setting the DEVICE DIP switch
Set the device number on DEVICE DIP switch, located on the front of the AXB-232++. The
device can be 1 of the 255 devices in an Axcess control system. The device number must
match the device assignment in the Axcess program. Device numbers are assigned into the
following three segments:
• Cards 1 through 95
• Boxes 96 through 127
• Panels 128 through 255
Set the device number by setting the device DIP switches. The device number is the total of all
of the switches in the ON position, and take effect by cycling the power.
DEVICE DIP SWITCH SETTINGS
Position 1 2
Value 1 2
Setting the RS-232/422 DIP switch
Set the stop bits, data bits, parity, and baud rate on the RS-232/422 DIP switch, located on the
front panel. The AXB-232++ supports the following asynchronous data standards:
• Stop bits 1 and 2
• Data bits 7, 8, and 9
• Parity None, Odd, Even, Mark, and Space
• Baud rates 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200 and 38,400.
57,600 is achieved by setting the DIP switch to 300 baud, and using the 'BAUDMED'
SEND_COMMAND (see the AXB-232++ Operation/Reference Guide for details).
115,200 is achieved by setting the DIP switch to 300 baud, and using the 'BAUDHIGH'
SEND_COMMAND (see the AXB-232++ Operation/Reference Guide for details).

QUICK START GUIDE

RS-232/422/485 Interface
Internal jumper JP4
Internal jumper JP5
3 4 5 6 7
4 8 16 32 64
front
8
128
