SPL SMC 7.1 User Manual page 2

Welcome
and thank you for choosing the SMC 7.1.
The Surround Monitor Controller SMC 7.1 is an analog studio monitor controller for 7.1 and stereo sources.
Each of the two balanced 7.1 Inputs and the two balanced Stereo Inputs can be routed to the balanced 7.1 Speaker Out-
put. The L/R signals of the selected input can optionally be routed to the Alternate Speaker Output. With the headphone
amplifier you can monitor the L/R of the selected input as well as single channels of the 7.1 Inputs.
The eight-ganged potentiometer controls the volume of all channels in the analog domain – no control circuits like VCAs
or digital attenuators are used.
The SMC 7.1 is built in high-quality analog technique, which ensures a linear frequency response up to 150 kHz as
well as an outstanding dynamic range.

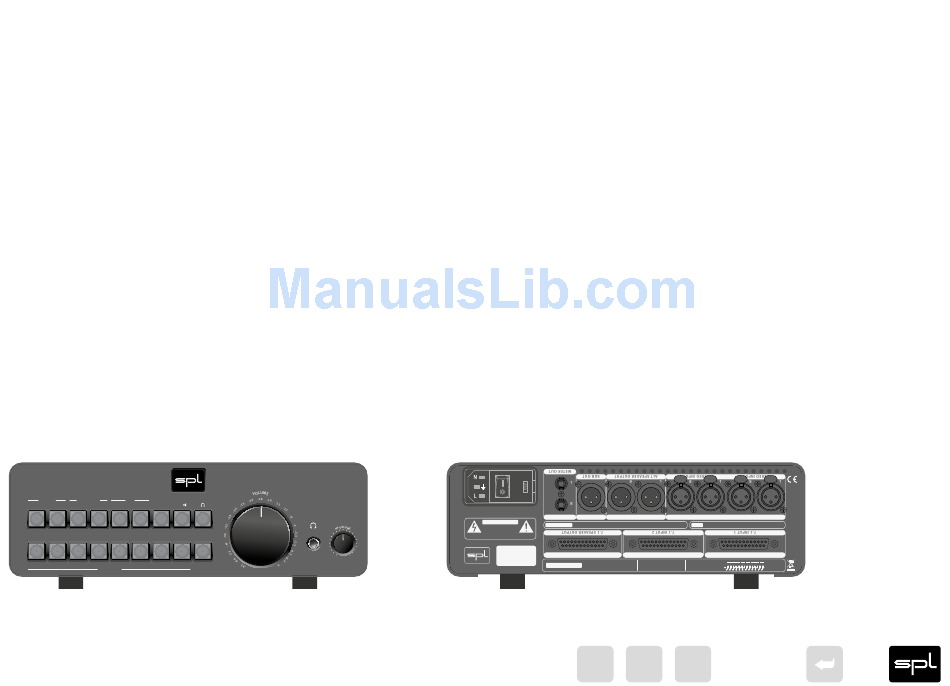

Surround Monitor Controller
7.1 Inputs Stereo Inputs Solo
1 2 1 2 In Place To C Mono L/R Alt
L C R LFE LS RS LB RB
7.1 Speakers
2
SMC 7.1
Mute
Standard
L
R
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 15 W
R L
METER OUT SUB OUT ALT SPEAKER OUTPUT
C A U T I O N
Voltage Selection 1. Remove Fuse Holder 2. Exchange Fuses 3. Flip Over
RISK OF ELECTRIC SHOCK
D O N O T O P E N
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
Serial
7.1 SPEAKER OUTPUT
Number
XLRs: balanced Meter Output: unbalanced
W I R I N G
SMC 7.1 1 = GND, 2 = Hot (+), 3 = Cold (-) 1 = GND, 2 = Hot (+), 3 = n.c.
Made in Germany
I F R
R L R L
STEREO INPUT 2 STEREO INPUT 1
4. Reinstall Fuses 115V AC: T 630 mA L 250 V | 230V AC: T 320 mA L 250 V
7.1 INPUT 2 7.1 INPUT 1
1 2 3 4 5 6 7 8 H=Hot (+)
DB25 comply with
GCHGCHGCHGCHGCH GCH GCH GCH C=Cold (–)
TASCAM Standard
13 1
G=GND
25 14
