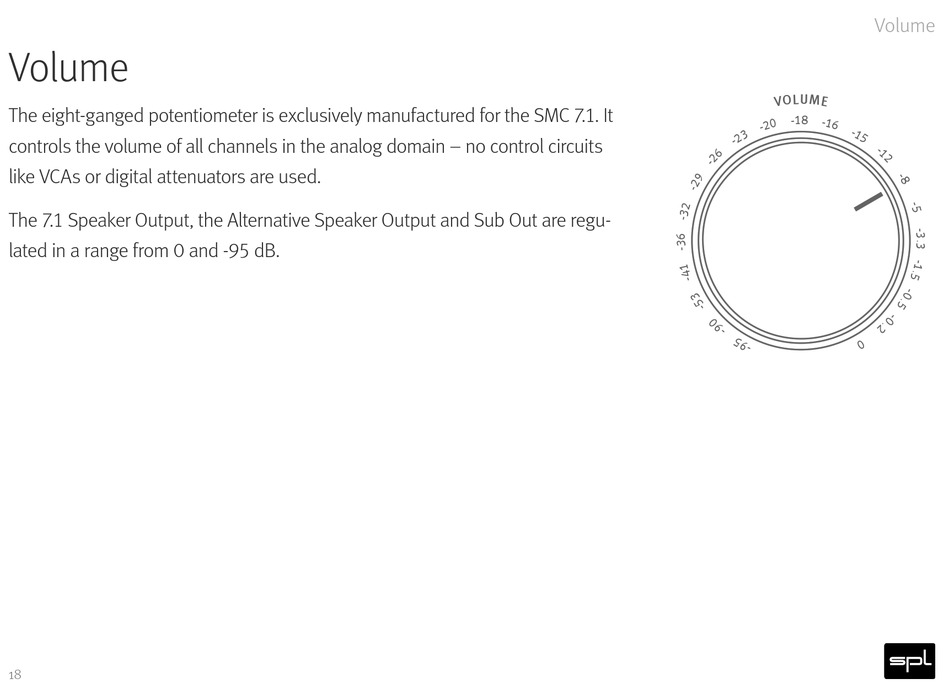

Volume

Surround Monitor Controller
The eight-ganged potentiometer is exclusively manufactured for the SMC 7.1. It
7.1 Inputs
1 2 1
controls the volume of all channels in the analog domain – no control circuits
like VCAs or digital attenuators are used.
The 7.1 Speaker Output, the Alternative Speaker Output and Sub Out are regu-
lated in a range from 0 and -95 dB.
L C R
18
Stereo Inputs Solo
2
In Place
LFE LS
7.1 Speakers
To C Mono L/R Alt
RS LB RB Mute
I F R
Volume
SM
