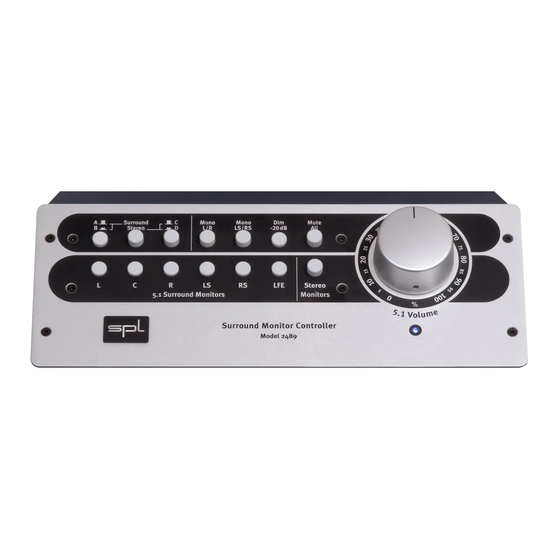

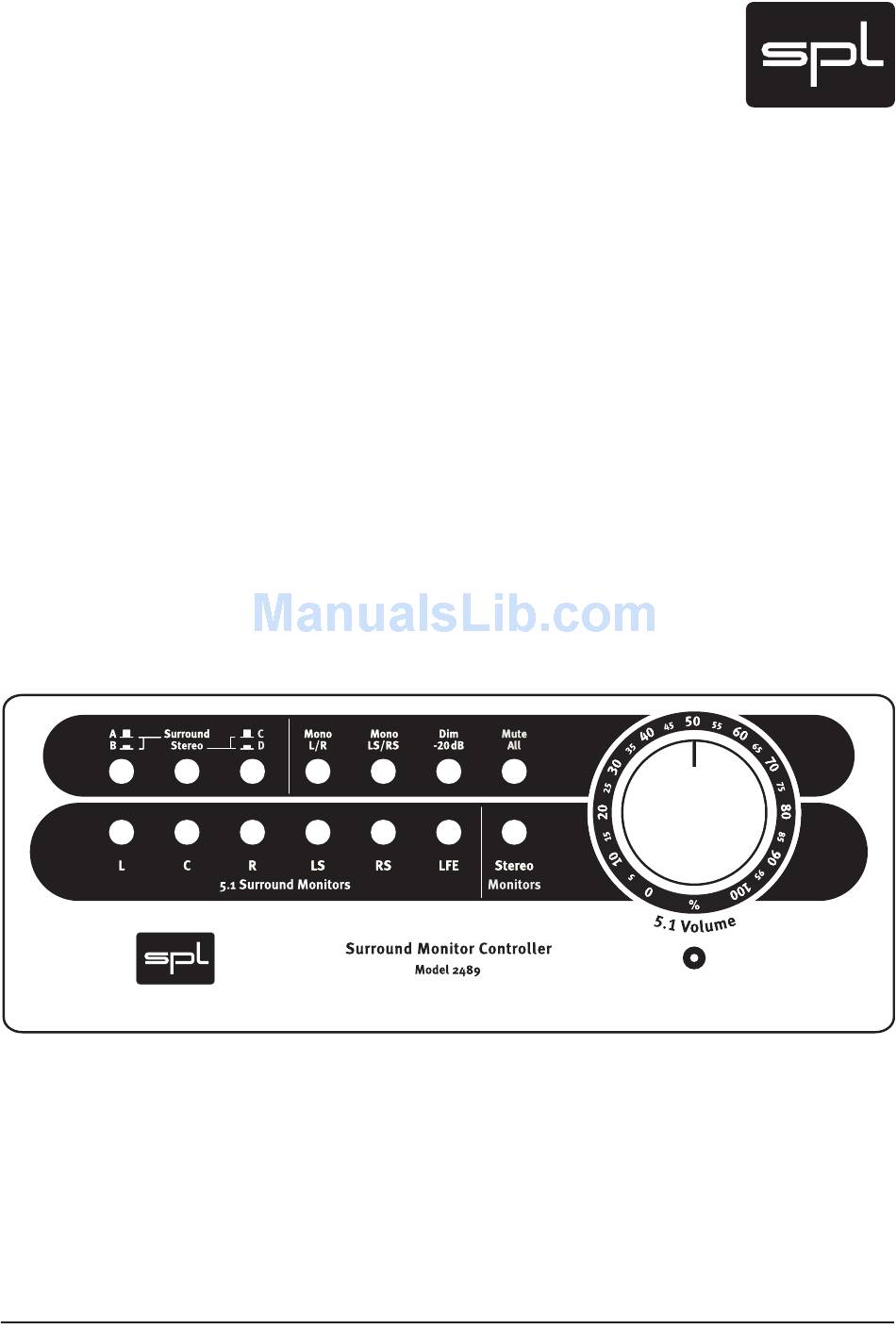

- Page 1 Manual urround onitor ontroller Model 2489 One-point stereo and 5.1 volume control, source and speaker management...
- Page 2 This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL.
-
Page 3: Table Of Contents
SURROUND and SPEAKER OUTPUTS ............7 Sub-D 25 connector pin configuration ............7 Operation ....................8 Volume control ................... 8 Source ......................8 Monitor Mode ..................... 8 Speakers On ....................9 Technical Specifications ................9 Warranty ..................... 10 Notes ......................11 urround onitor ontroller 2489... -
Page 4: Introduction
Introduction The SPL Surround Monitor Controller (SMC) is a one-point analog volume control and switching matrix for system-independent 5.1 surround and stereo moni- toring. Designed to provide only the necessary functions with excellent audio quality, the SMC offers a uniquely cost-effective stereo and surround speaker and source management solution for essentially any audio application: •... -
Page 5: Before You Begin
An AC power cord is included for connection to the standard 3-prong IEC connector. The transformer, power cord and IEC connector are VDE, UL and CSA approved. The AC fuse is rated at 315 mA for 230 v and 630 mA for 115 v. urround onitor ontroller 2489... -
Page 6: Rear Panel/Connections
See Manual for Pin Configuration Surround Monitor SLAVE OUT Controller Model 2489 VOLTAGE SETTING / FUSE RATING 220 – 240 V ~ 50 Hz / Fuse: 315 mA Made in Germany 110 – 120 V ~ 60 Hz / Fuse: 630 mA... -
Page 7: Inputs And Outputs
4=RS G C H G C H G C H G C H G C H G C H G C H G C H G = Ground, C = cold (-), H = hot (+) urround onitor ontroller 2489... -
Page 8: Operation
DIM lowers the monitor volume by -20 dB without changing the volume pot setting, for example to control a mix at low volume (or to answer the phone…). MUTE ALL does exactly what it says: it mutes all speaker outputs. urround onitor ontroller 2489... -
Page 9: Speakers On
Dimensions H x W x D: 91 x 272 x 220 mm (3 9/16“ x 10 11/16“ x 8 21/32“) Weight 2.3 kg (5 lbs) SPL reserves the right to make technical changes without prior notice. urround onitor ontroller 2489... -
Page 10: Warranty
SPL warranty repair facility in the country where purchased, or to the SPL factory in Germany, in the original packaging or a replacement supplied by SPL, with all transportation costs and full insurance paid each way by the purchaser or owner.
