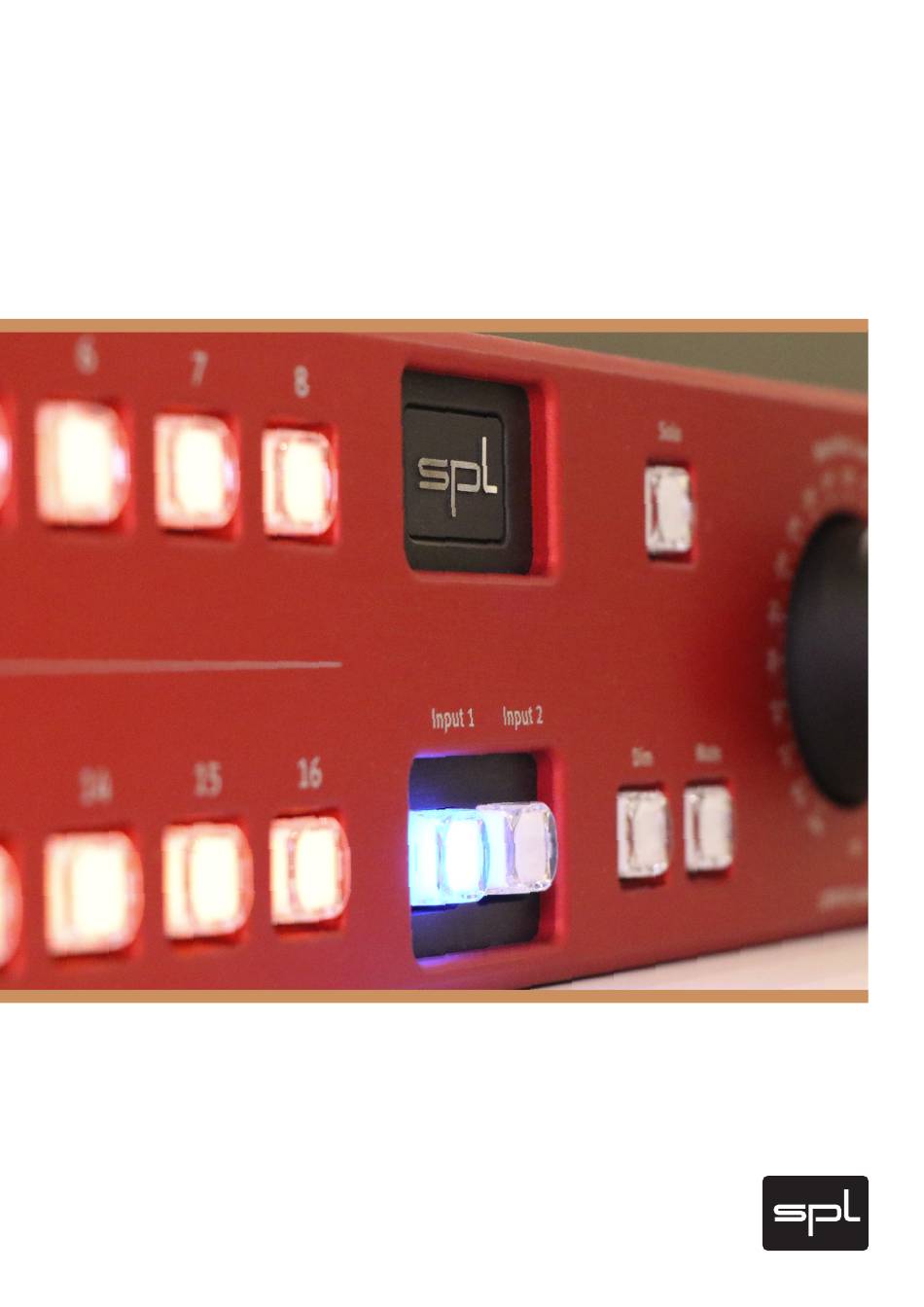

  • Page 1 MC16 Mastering Monitor Controller Manual...
  • Page 3: Table Of Contents

    Content MC16 Version 1.2 – 06/ 2018 Package Contents Introduction Product Registration The centerpiece of your mastering studio Technical Aspects 120 Volt Technology 120 Volt Technology - Diagrams Installation Voltage Selection First Steps Cabling: Rear Side XLR inputs and outputs Ground Lift switch to avoid ground loops Input 1 Channels 1 - 8 Input 1 Channels 9 - 16...
  • Page 4: Version 1.2 - 06/ 2018

    Unless stated otherwise, everything herein corresponds to the technical status at the time of delivery of the product and user manual by SPL electronics GmbH. The design and circuitry are under continuous development and improvement. Technical specifications are subject to change.
  • Page 5: Introduction

    The centerpiece of your mastering studio The new MC16 Mastering Monitor Controller – model 1760/1764 is a 16 Channel Mastering Monitor Controller. Today’s mastering studios must be prepared for Dolby Atmos® and Auro 3D® projects. Monitoring up to 16 channels in a quality that is on par with state-of-the-art stereo was hard to achieve –...
  • Page 6: Technical Aspects

    Technical Aspects 120 Volt Technology SPL‘s goal was to push analog signal processing to the limits. That‘s why we combined the best possible components with a high-grade optimized circuit design. We have been using the in-house developed 120-volt technology - the highest-ever oper- ating voltage used for audio applications - in all our products from the Mastering series for years.
  • Page 7: 120 Volt Technology - Diagrams

    10 dB higher. THD measurements of the SPL op-amps show a difference of more than 3 dB compared to the OPA134 at 36 V — in terms of sound pressure level, that corresponds to an improvement of more than 50%.
  • Page 8: Installation

    When you close the lid again, you should see the correct voltage displayed in the opening. On the product site on our website (http://mc16.spl.audio) you will find a video con- cerning the topic “Changing the mains voltage”. If you ever have to exchange a fuse, we recommend the video “Exchange defective fuses”.
  • Page 9: Cabling: Rear Side

    Cabling: Rear Side XLR inputs and outputs We used exclusively Switchcraft/Neutrik XLR input and output plugs to guarantee perfect connectivity in the studio. They provide an optimal connection thanks to their electrome- chanical design and large contact surface. The image shows the XLR connectors pinout. They are balanced and have three conduc- tors or wires.
  • Page 10: Input 1 Channels

    T 1 A L 250V Serial Number MC16 SPEAKER OUTPUTS Made in Germany spl.info Voltage (see details on page 6) Ground-Lift (see details on page 7) Inputs 1 Channels 1 - 8 Inputs 1 Channels 9 - 16 Inputs 2 Channels 1 - 8...
  • Page 11: Input 1 Channels

    Cabling: Rear Side INPUT 1 – Channels 1-8 SPEAKER OUTPUTS Pin assignment of a DB-25 connector (Tascam standard) GCHGCHGCHGCHGCH GCH GCH GCH G=GROUND (GND), C=COLD (-), H=HOT (+)
  • Page 12: Input 2 Channels

    In the first eight channels of the 16-channel input section ‘Input 1’, the MC16 features balanced XLR input jacks (female). This is quiet helpful if you (for example) pair the MC16 with an SPL DMC, because in this way single cable connections can easily be connected back and forth to the DMC.
  • Page 13: Pairing Dmc And Mc

    1 and 2 as well as the LFE loudspeaker at the speaker output 4 of the MC16. On the product website we provide an SPL MC16 video manual: mc16.spl.audio Find further information about the SPL DMC Mastering Console on the product website: dmc.spl.audio...
  • Page 14: Control Elements

    Of course it is also possible to design your own labels. Therefore you can download a template at mc16.spl.audio.
  • Page 15: Input 1 / Input 2

    Design Presets 120V DC Audio Rail Model 1760 Input 1 / Input 2 With the four buttons of the input section, you can select between the four different ste- reo inputs of the category inputs. This selected source can be routed with the Insert and recorded with the Recording Output.
  • Page 16: Monitoring Level

    You can save six presets in total. 3 Solo presets and 3 sur- round format presets. You can find further information concerning this topic within the SPL MC16 video manual (title: “ScreenShow”) on the product website: mc16.spl.audio...
  • Page 17: Specifications

    Specifications Measurements Inputs Max. Input Level ......... + 32,5 dBu Input Inpedance ......... 20 kOhm (sym.) Outputs Max. Output Level ............+ 32,5 dBu Output Impedance ............‹ 600 Ohm (sym.) Noise (unweighted) ..............- 97,3 dBu Noise (A-weighted) ..............- 102,4 dBu Noise (CCIR) ................
  • Page 18: Security Advices

    Opening the unit Simply put: DON‘T, if you are not a certified SPL technician or engineer. Really: Do not open the device housing, as there is great risk you will damage the device, or – even after being disconnected – you may receive a dangerous electrical shock!
  • Page 19: Notes On Environmental Protection

    Security Advices Controls and switches Operate the controls and switches only as described in the manual. Incorrect adjustments outside safe parameters can lead to damage and unnecessary repair costs. Never use the switches or level controls to effect excessive or extreme changes. Repairs Unplug the unit from all power and signal connections and immediately contact a quali- fied technician when you think repairs are needed –...
  • Page 20: Contact

    Videos: youtube.spl.audio © 2018 SPL electronics GmbH This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL. Sound Performance Lab (SPL) con- tinuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
