1.1

System Enclosure

The system has up to two CPU modules and up to 4 Gbytes of memory. A single
fast wide UltraSCSI StorageWorks shelf provides up to 128 Gbytes of storage.

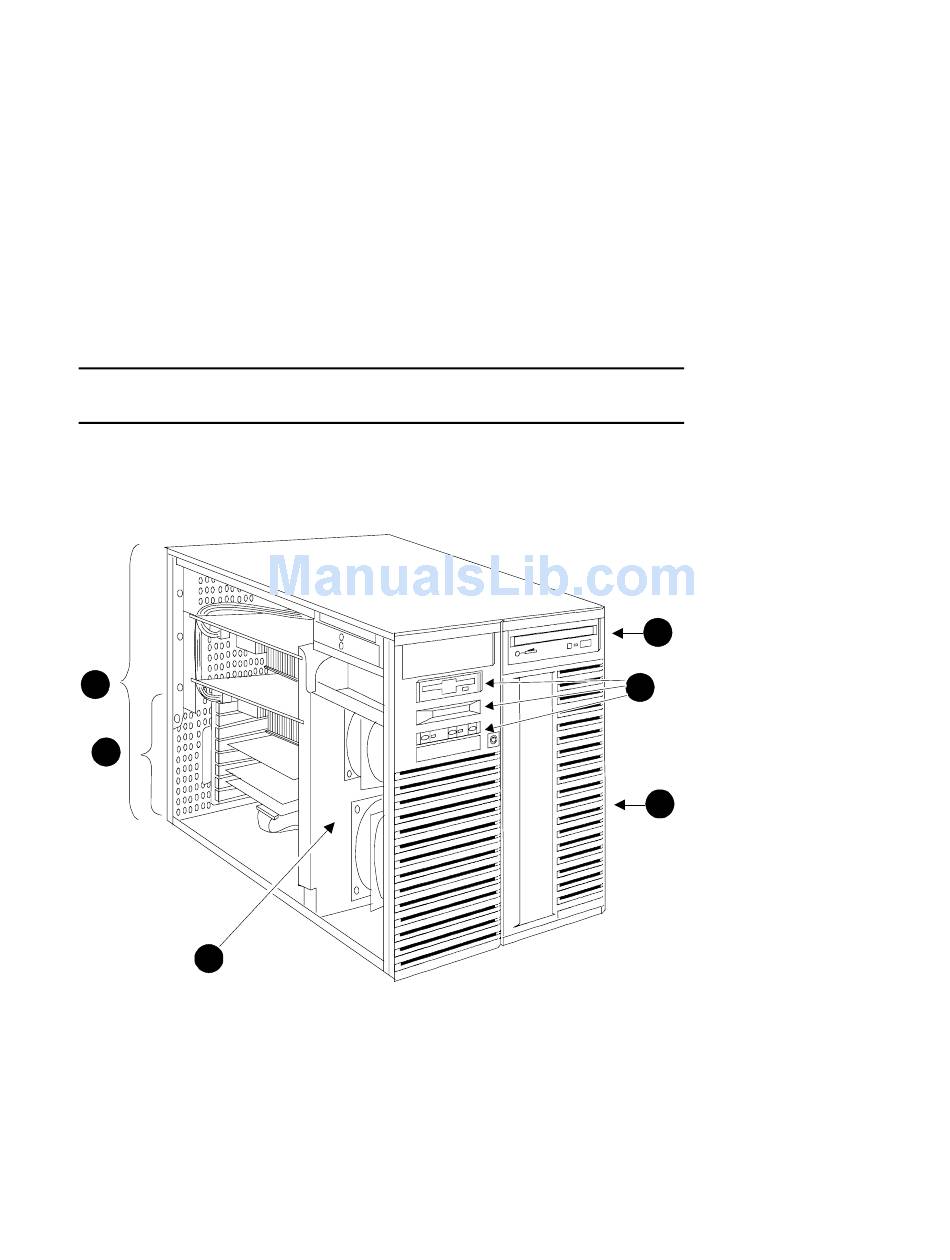

Figure 1-1 System Enclosure
4
1
3
2
6
5
PKW-1402-98
1-2
AlphaServer DS20 Service Manual
