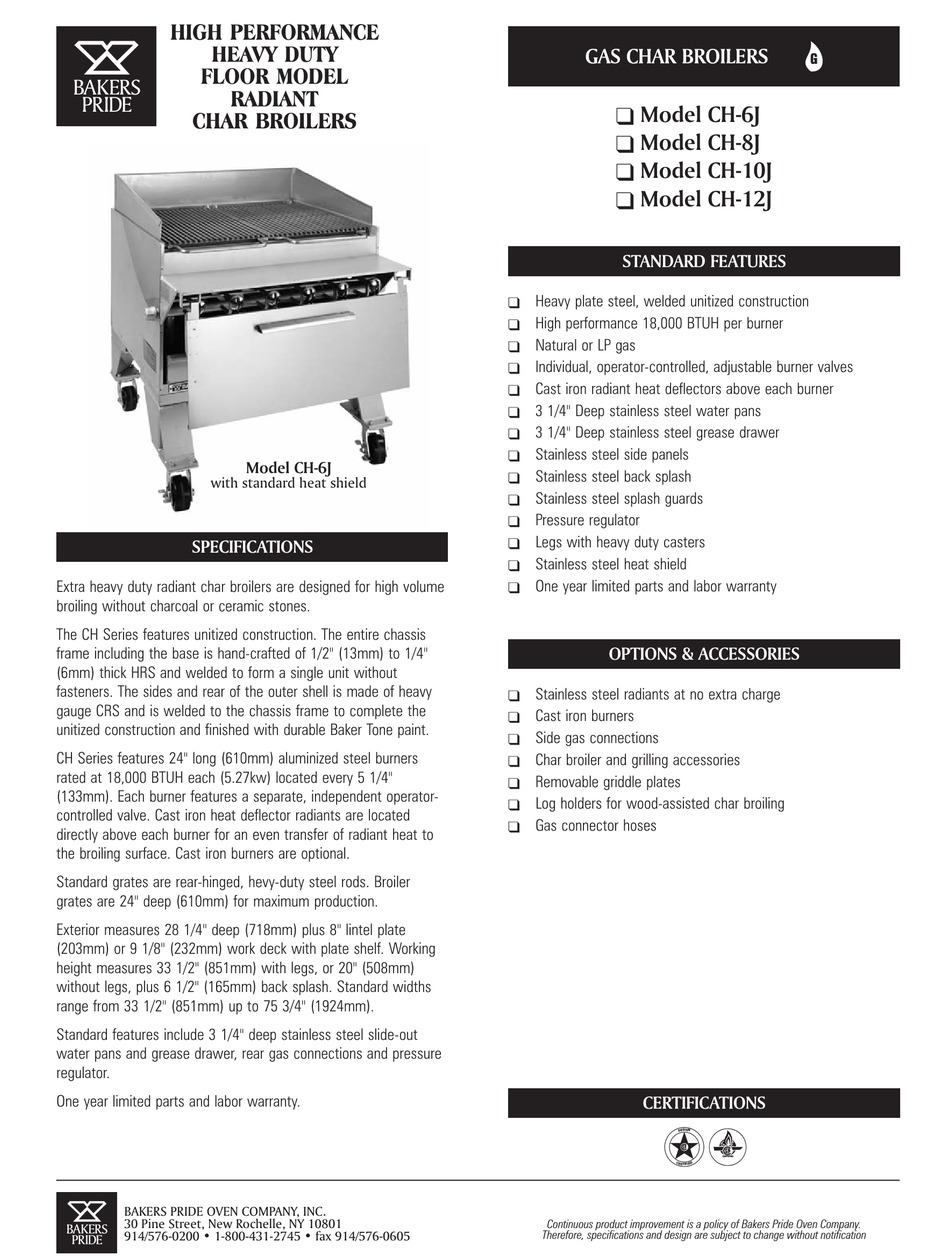

Bakers Pride CH-10J Specifications

HIGH PERFORMANCE
HEAVY DUTY
FLOOR MODEL
BAKERS
RADIANT
PRIDE
CHAR BROILERS
with standard heat shield
SPECIFICATIONS
Extra heavy duty radiant char broilers are designed for high volume
broiling without charcoal or ceramic stones.
The CH Series features unitized construction. The entire chassis
frame including the base is hand-crafted of 1/2" (13mm) to 1/4"
(6mm) thick HRS and welded to form a single unit without
fasteners. The sides and rear of the outer shell is made of heavy
gauge CRS and is welded to the chassis frame to complete the
unitized construction and finished with durable Baker Tone paint.
CH Series features 24" long (610mm) aluminized steel burners
rated at 18,000 BTUH each (5.27kw) located every 5 1/4"
(133mm). Each burner features a separate, independent operator-
controlled valve. Cast iron heat deflector radiants are located
directly above each burner for an even transfer of radiant heat to
the broiling surface. Cast iron burners are optional.
Standard grates are rear-hinged, hevy-duty steel rods. Broiler
grates are 24" deep (610mm) for maximum production.
Exterior measures 28 1/4" deep (718mm) plus 8" lintel plate
(203mm) or 9 1/8" (232mm) work deck with plate shelf. Working
height measures 33 1/2" (851mm) with legs, or 20" (508mm)
without legs, plus 6 1/2" (165mm) back splash. Standard widths
range from 33 1/2" (851mm) up to 75 3/4" (1924mm).
Standard features include 3 1/4" deep stainless steel slide-out
water pans and grease drawer, rear gas connections and pressure
regulator.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
Model CH-6J
GAS CHAR BROILERS
q
Model CH-6J
q
Model CH-8J
q
Model CH-10J
q
Model CH-12J
STANDARD FEATURES
Heavy plate steel, welded unitized construction
q
q High performance 18,000 BTUH per burner
q Natural or LP gas
Individual, operator-controlled, adjustable burner valves
q
q Cast iron radiant heat deflectors above each burner
q 3 1/4" Deep stainless steel water pans
3 1/4" Deep stainless steel grease drawer
q
q Stainless steel side panels
Stainless steel back splash
q
q Stainless steel splash guards
q Pressure regulator
Legs with heavy duty casters
q
q Stainless steel heat shield
q One year limited parts and labor warranty
OPTIONS & ACCESSORIES
Stainless steel radiants at no extra charge
q
q Cast iron burners
q Side gas connections
Char broiler and grilling accessories
q
q Removable griddle plates
Log holders for wood-assisted char broiling
q
q Gas connector hoses
CERTIFICATIONS
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
G
CERTIFIED
