Quick Start Guide

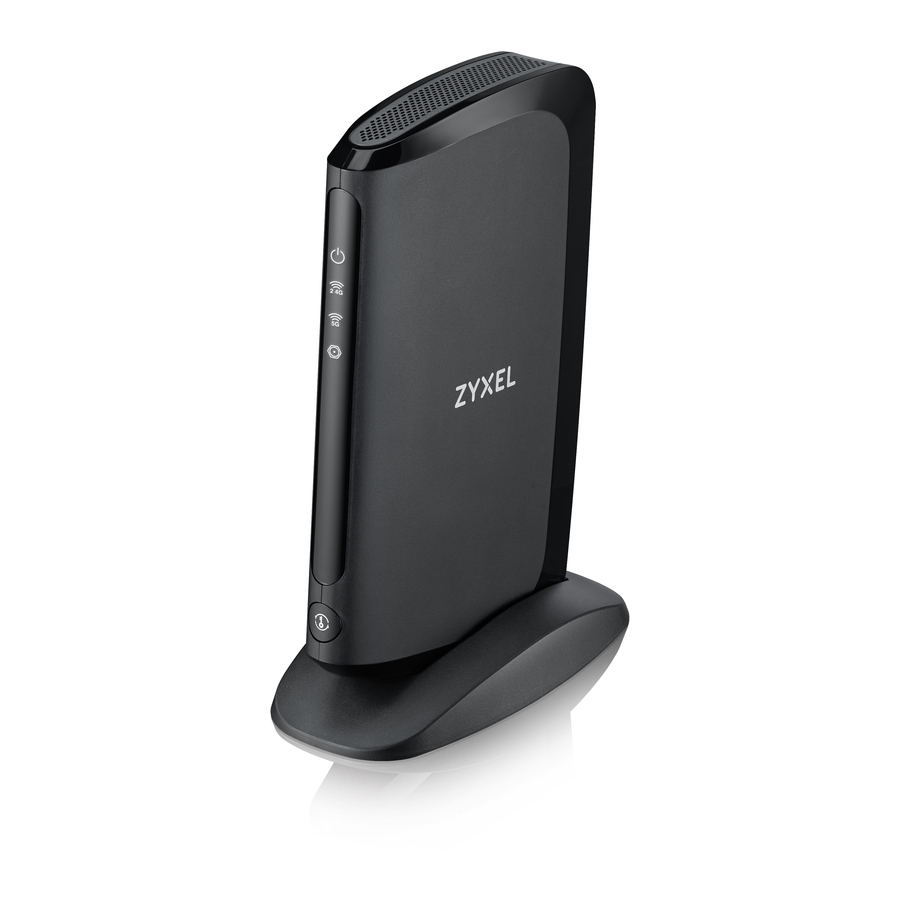

WAP7205
AC1300 Gigabit Ethernet
MoCA Extender
ENGLISH
Support Information
North America
+ 1 800 255 4101
USA
support@zyxel.com
See the User's Guide at www.zyxel.com for more
information, including customer support and
safety warnings.
EU Importer
Zyxel Communications A/S
Generatorvej 8D, 2860 Søborg, Denmark.
http://www.zyxel.dk
US Importer
Zyxel Communications, Inc
1130 North Miller Street Anaheim, CA 92806-2001
http://www.us.zyxel.com
Copyright © 2017 Zyxel Communications Corp. All Rights Reserved.

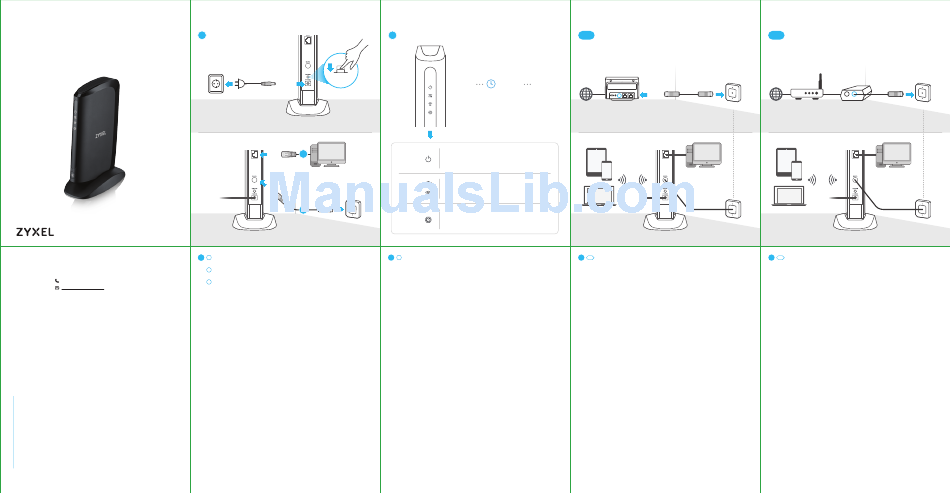

Hardware Connection
1
POWER
ON
POWER
2
LAN
MoCA
3
Coaxial Outlet
EN
EN
1
Plug the included power adapter into the POWER socket and then into a power
outlet.Make sure the power switch is set to the ON position.
2
Use an Ethernet cable to connect a LAN port of the WAP7205 to your computer or an
IP set-top-box.
3
Use a coaxial cable to connect the WAP7205's MoCA port to a coaxial outlet in your
home.
4
around
2
minutes
The LED turns static WHITE.
The LED turns on and then blinks white after
POWER
the device is powered on. It turns static on
again when the system is ready.
The LED turns static white when the 2.4 GHz
2.4G/5G
or 5 GHz WiFi network is enabled.
The LED turns static white when the MoCA
port is connected and the WAP7205
MoCA
successfully connects (MoCA) to another
MoCA device.
EN
4
Wait until the LED turns static WHITE (around 2 minutes).
5-A
Scenario 1 - Connect to a MoCA Router
MoCA
MoCA Router
Coaxial Outlet
Room 1
Coaxial Outlet
WAP7205
Room 2
EN
5-A
If you have a MoCA router which is connected to the Internet, use a coaxial cable
to connect the router's MoCA port to a coaxial outlet in your home.
The WAP7205 then automatically sets up a MoCA network with the router and can
access the Internet through the router.
5-B
Scenario 2 - Connect to a General Router with a MoCA Adapter
IN
OUT
General Router
MoCA Adapter
Coaxial Outlet
Room 1
Coaxial Outlet
WAP7205
Room 2
EN
5-B
If your broadband modem or router doesn't support MoCA, use an Ethernet cable
to connect the modem or router to a MoCA adapter and then use a coaxial cable
to connect the adapter to a coaxial outlet in your home.
The WAP7205 then automatically sets up a MoCA network with the router and can
access the Internet through the router.
