Lorex SG7530PK4 Quick Start Manual

Camera Specifications

Image Device 1/4" Color Image Sensor
Effective Pixels 656H x 492V
Scanning System 2:1 Interlace
NTSC: 525 Lines
Resolution Horizontal 450 TV lines
AES Shutter Speed 1/60 ~ 1/50,000 sec.
S/N Ratio More than 48dB (AGC off)
Sync. System Internal
Min. Illumination 3 LUX @F1.2 (no LED)
0 LUX (with LED)
IR Night Vision 18 IR LED / 850 nm / 50'
(15 m)
Video Output 1.0 Vp-p (75 ohms)
White Balance AWB
Termination BNC
Lens Fixed Lens (3.6 mm)
Viewing Angle H: 59°; V:44°; D: 73°
FOV (Diagonal) 73 Degrees
±
Power Requirement DC 12V
With IR: Max 280mA
Power Consumption
W/o IR: Max 90mA
°
Operating Temp 14 F ~ 122°F
°
(-10 ~ 50
Operating Humidity Within 90% RH
Weight (With Stand) 0.60 lb / 0.27 kg
Dimensions:
IT'S ALL ON THE WEB!
Product Information
User Manuals
Quick Start Guides
10%
°
C)
VISIT
www.lorexcctv.com
Lorex Technologies Inc.
Copyright © 2010 Lorex Technologies Inc.
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE
Specification Sheets
Software Upgrades
Firmware Upgrades

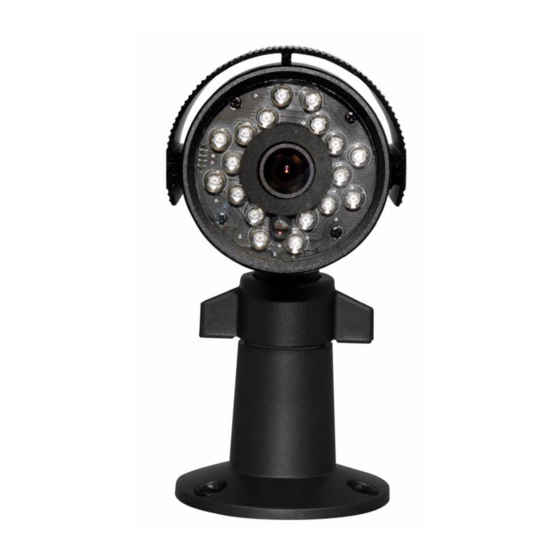

HIGH RESOLUTION
WEATHERPROOF
COLOR CAMERA
WITH NIGHT VISION
MODEL: SG7530PK4

QUICK START GUIDE

English Version 1.0
