lNC100 lOrex PiNg series
quiCK sTarT guide
The Lorex Ping includes the following:
• 1 x Camera
• 1 x Camera power adapter and USB power cable
• 1 x Ethernet cable
• 1 x Mounting kit
• 1 x Quick Start Guide
• 1 x Software/documentation CD
It's all on the Web
www.lorextechnology.com
Information in this document is subject to change without notice.
As our products are subject to continuous improvement, Lorex
Technology Inc. and our subsidiaries reserve the right to modify
product design, specifications and prices, without notice and
without incurring any obligation.
E&OE © 2013 LOREX. All rights reserved.
www.lorextechnology.com
Wireless NeTWOrK Camera

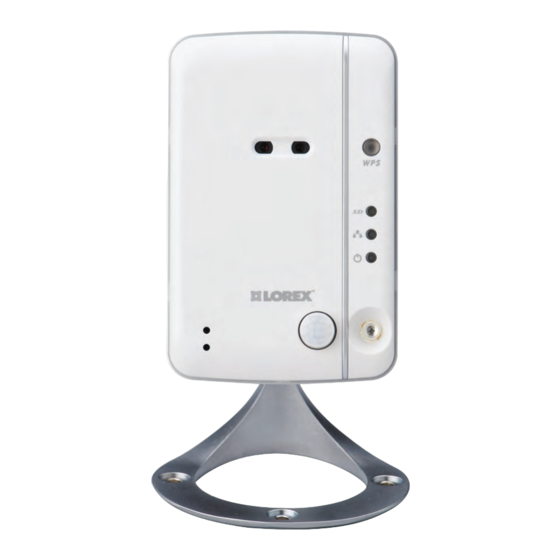

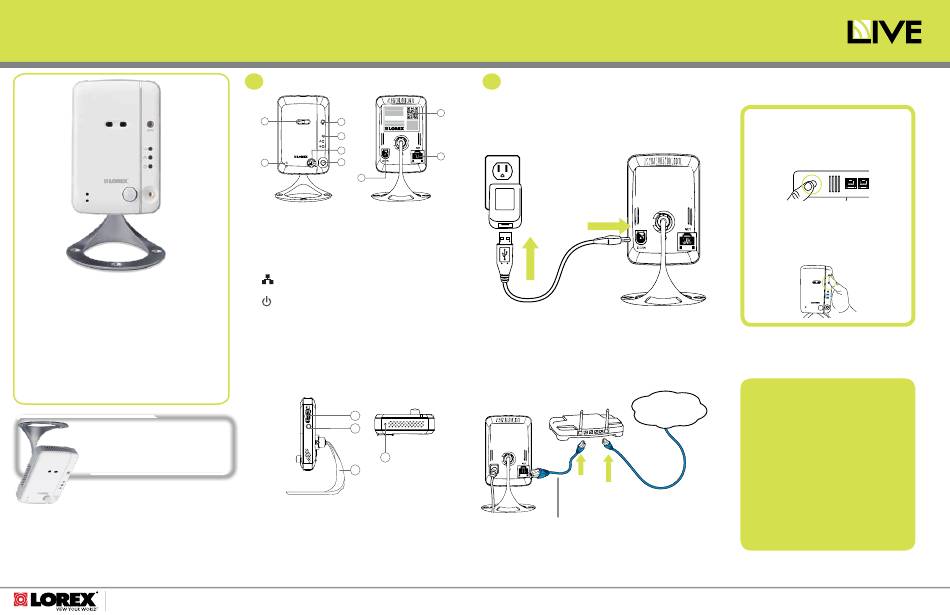

Camera Overview

1
CamID: XXXXXXXXXXXX
1
3
MAC: XXXXXXXXXXXX
WPS
4
SD
5
2
6
7
1. Camera Lens: The camera has separate lenses for day/night use.
2. Microphone
3. WPS Button: Used to connect the camera to a wireless router (not
included) with a WPS button.
4. Indicator Lights:
• SD: Glows when a microSD card (not included) is inserted. Flashes
during recording.
/Network: Glows when connected to an ethernet or WiFi network.
Flashes when sending or receiving data.
/Status: Glows when camera is connected to the Internet. Flashes
when there is a connection problem.
5. PIR Motion Sensor: Allows the camera to detect motion by tracking body
heat.
6. Infrared LED: Allows the camera to see in the dark.
7. DC/IN: Connect the included power adapter.
8. CamID Label: Shows the camera's CamID number and a QR code for
easy setup using mobile devices
9. NET: Connect an Ethernet cable and connect the other end to your router
(not included).
10
RESET
11
Camera Bottom
13
12
10. MicroSD Card Slot: Insert a microSD card (not included) to enable
recording on the camera. Camera supports microSD cards up to a
maximum size of 32GB.
11. Audio Out: Connect to an external speaker (not included) using a
3.5mm headphone jack to enable 2-way audio and alarms.
12. Mounting Stand
13. Reset Button: While the camera is powered on, press with a pin
or small object for at least 4 seconds to reset the camera to factory
defaults. This is useful if you have forgotten the password for the camera.

getting started

2
1. Connect the power adapter cable to the power
8
adapter using the USB connector. Plug the power
cable into the back of the camera.
9
2: Connect an Ethernet cable (included) to the NET port on
the camera and connect the other end to your router (not
included). The blue Network LED on the camera will glow
blue when the camera is connected to your network.
LAN
Ethernet Cable
see reverse for Wi-Fi setup
Optional
If your router supports WPS press and
hold the WPS button on your router until
the WPS light turns on.
WPS
SD
Then, press the WPS button on the
camera within 1 minute. The camera
will automatically connect to your WiFi
network and the blue Network LED on the
camera will turn on.
Connecting to
your Camera
Internet
Once your camera is connected to
your wired or wireless network, you
can connect to your camera using your
PC, Mac, iPhone, iPad, or Android
phone or tablet.
NOTe: For Mac software and
instructions, please visit
www.lorextechnology.com
LNC100 Series Quick Setup Guide - English - R1
