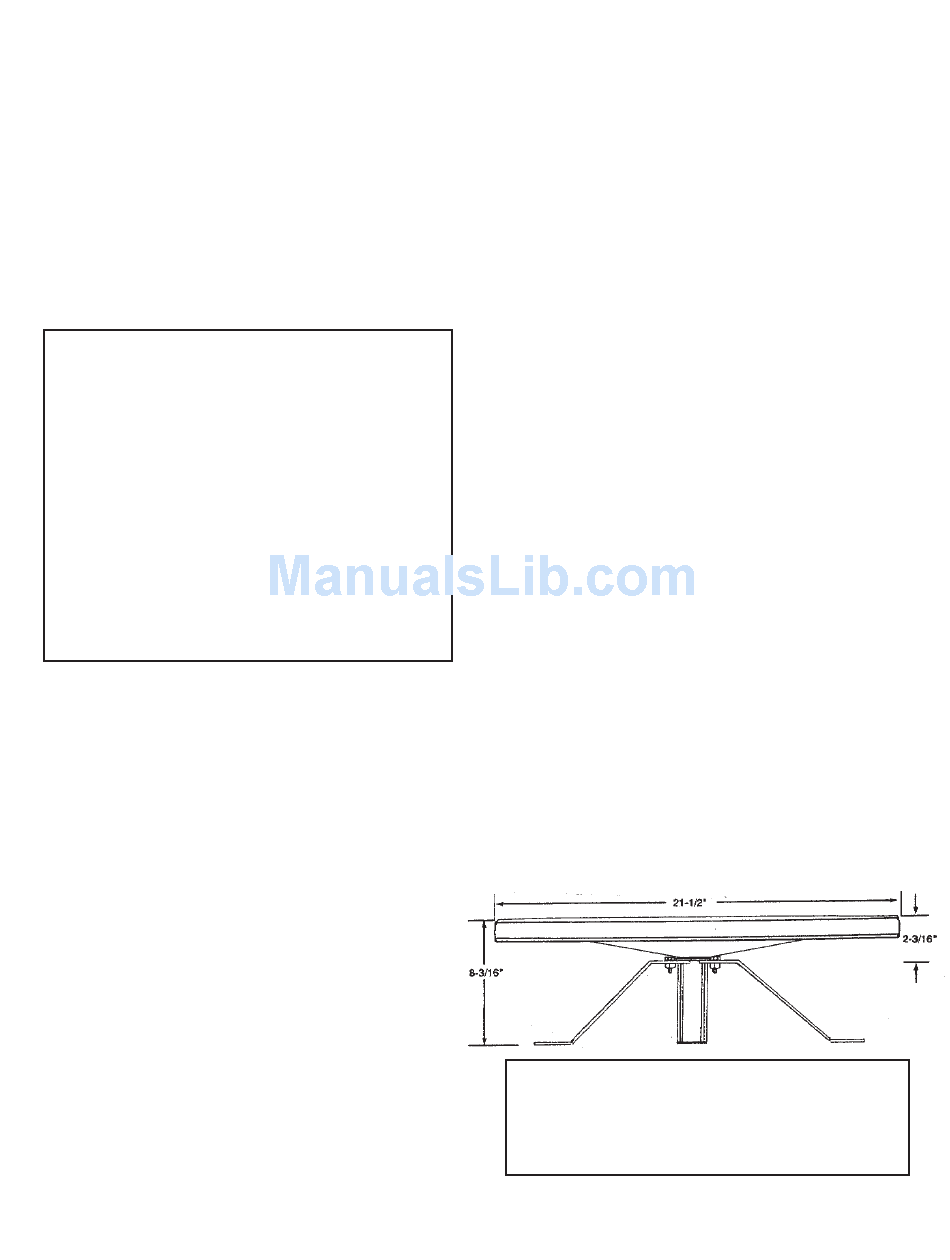

RV AND VAN TV ANTENNA
MODELS RS-2000 & RS-3460/RS3460B
SPECIFICATIONS
Bandpass
VHF/FM .............................. 54 to 216 MHz
UHF .................................... 470 to 810 MHz
Amplifier Gain ......................
VHF* .................................. 15.5 dB avg.
UHF .................................... 19.5 dB avg.
Impedance ............................ 75 ohm unbalanced
Response .............................. .25 dB per 6 MHz
VSWR .................................... 1.8:1 max.
Power Required .................... +12 VDC at 85 ma
Weatherproof Housing ......... Weatherable
*Has fixed FM trap to reduce interference.
DESCRIPTION
Winegard's RoadStar
TM
omnidirectional antenna provides
excellent reception of VHF/UHF TV channels. The
RoadStar compact modern styling is unobtrusive and
blends well with the designs of recreational vehicles. The
UV stabilized copolymer housing makes the antenna
virtually impervious to weathering and color change.
The unique omnidirectional characteristics provide ex-
cellent reception in areas where stations are in different
directions without the need for a complex rotor system.
A built-in amplifier provides up to 6 times the received
signal on VHF and 9 times the UHF signal insuring the
best possible reception in color and black and white.
The RS-2000 package includes antenna, +12 VDC power
supply with two-way splitter, 30' downlead cable, 6' TV set
cord, hardware and mounting bracket.
WINEGARD
ROADSTAR
Made in U.S.A.
INSTRUCTIONS
UV stabilized
copolymer
Winegard Company
3000 Kirkwood St., Burlington, IA 52601-2000
Printed in U.S.A. 2451806
© Winegard Company, 1998, 2004, 2006 Rev.3 10/10
TM
PARTS LIST (RS-2000) White Housing
1
Amplified Antenna
6
10-32 Hex Nut, Nylock
1
Power Supply with Hardware
1
30' Coaxial Cable
1
6' Coaxial Cable
3
Roof Mounting Brackets
6
#10 x 1" Thread Cutting Screws
1
Bolt, 1-14 x 1" Nylon
1
Mounting Plate
6
10-32 x 5/8" Bolt
6
Washer, #10 Aluminum
PARTS LIST (RS-3460) White Housing
(RS3460B) Black Housing
1
Amplified Antenna (white)
Amplified Antenna (black)
6
10-32 Hex Nut, Nylock
3
Roof Mounting Brackets
6
#10 x 1" Thread Cutting Screws
1
Bolt, 1-14 x 1" Nylon
1
Mounting Plate
1
Coaxial Cable Boot
6
10-32 x 5/8" Bolt
6
Washer, #10 Aluminum
CLEANING ANTENNA HOUSING
The surface of the antenna is a tough laminated
ultraviolet shield. Clean only with mild soap and
water. Use no solvents, alcohol, or cleaning
fluids.
®
2120415
2160216
2120123
2753015
2753752
3720303
2160178
3200350
3710248
2160173
1140302
2120415
2120404
2160216
3720303
2160178
3200350
3710248
3200154
2160173
1140302
