Check List

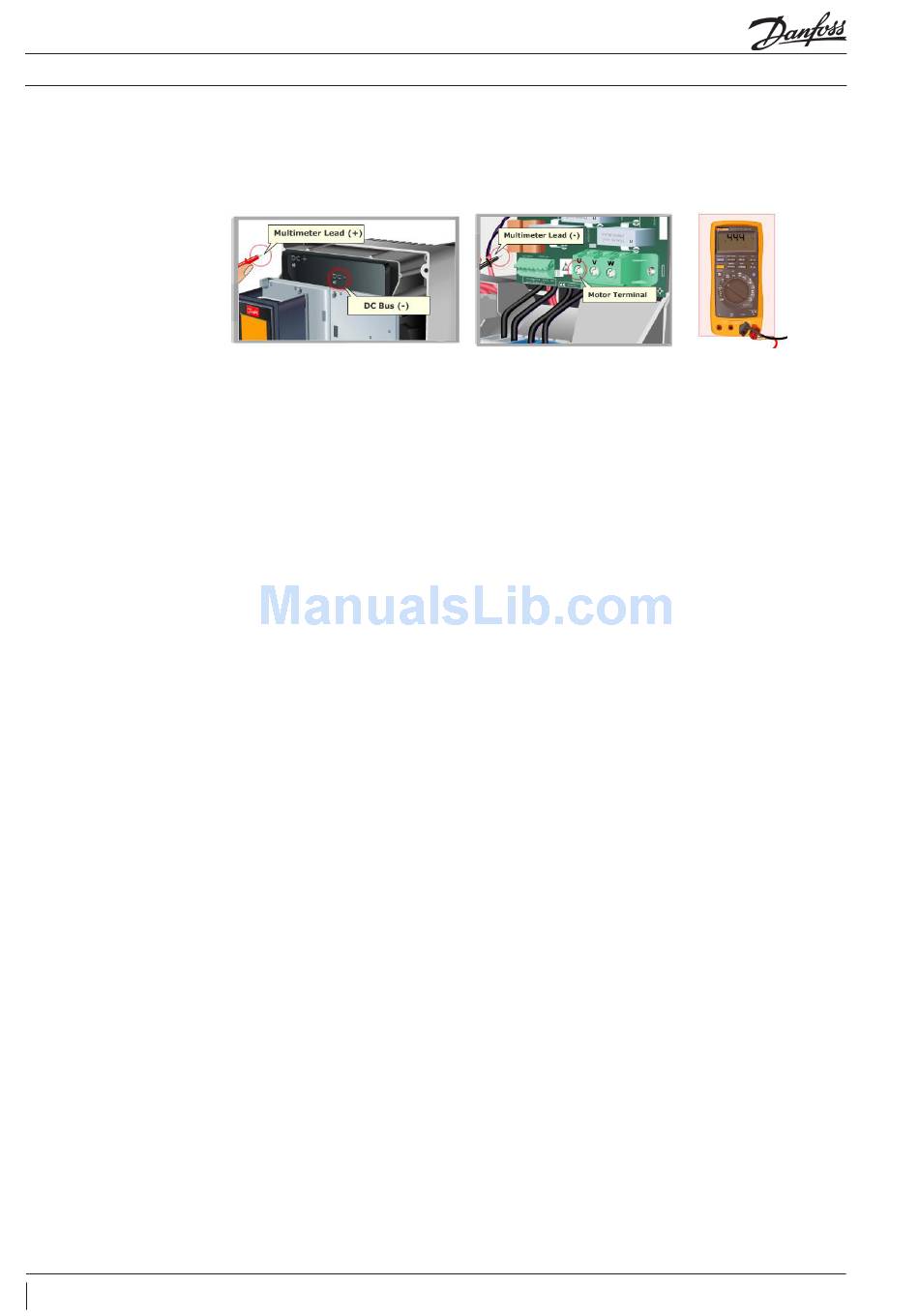

Step 4
Figure 19: The multimeter
should show diode drop
around 0.4 volts
16
FRCC.PC.036.A2.02
Static test procedures
Now reverse the meter leads, i.e. connect
the positive terminal of the meter lead to the
negative DC bus.
• Connect the negative terminal of the meter
lead to the motor terminals U, V, W in turn.
• The multimeter should show diode drop
around 0.4 volts.
