SAFLOK VERTICAL LIFELINE ROPE POLE ANCHOR SYSTEM
This manual is intended to meet the Manufacturer's Instructions requirement of applicable standards defi ned in
Section 1.2 and should be used as part of an employee training program as required by the identifi ed agencies.
WARNING: This product is part of a personal fall arrest system
manufacturer's instructions for each component or part of the complete system. These instructions must be
provided to the user of this equipment. The user must read and understand these instructions or have them
explained to them before using this equipment. Manufacturer's instructions must be followed for proper use and
maintenance of this product. Alterations or misuse of this product or failure to follow instructions may result in
serious injury or death.
1
IMPORTANT: If you have questions on the use, care, or suitability of this equipment for your application,
contact Capital Safety.
IMPORTANT: Record the product identifi cation information from the ID label in the Inspection and Maintenance
Log in Section 9.
DESCRIPTION:

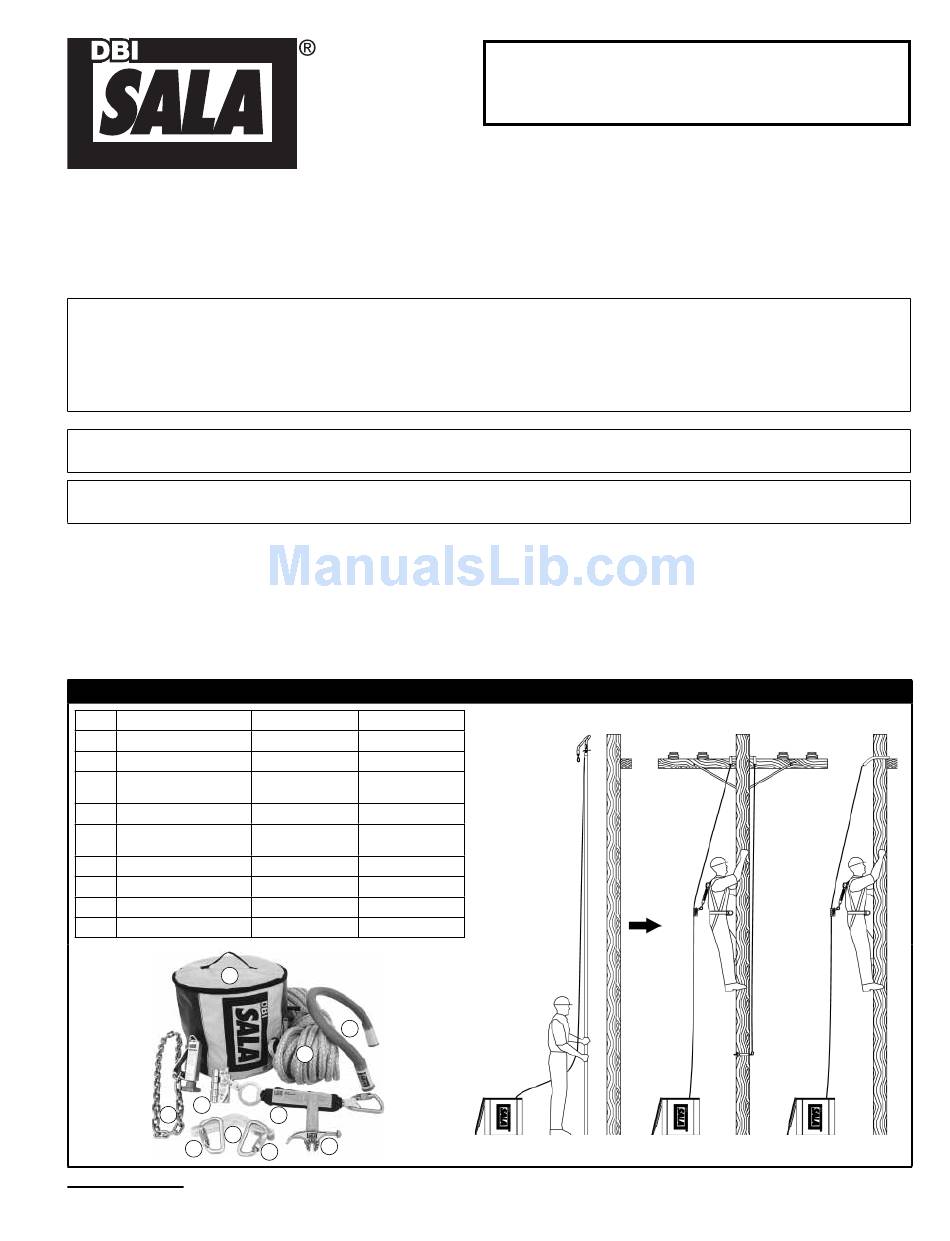

Figure 1 illustrates the components that comprise the Safl ok
consists of a dielectric Vertical Lifeline Rope (1A) passing through a formed Anchor Tube (1B). The Anchor Tube
drapes over the crossarm (or similar component) on a wooden utility pole and is placed with a Telescoping Hot
Stick (1C) and attached Installation/Removal Tool (1D) to suspend the lifeline vertically for attachment of a fall
arrest subsystem: Rope Grab (1E) with Shock Absorber (1F), and Full Body Harness. A Chain Tensioner (1G) and
Endless Loop Sling (1H) are provided to secure the bottom end of the lifeline to the base of the pole.
Item
Description
A
Vertical Lifeline Rope
B
Anchor Tube
C
Telescoping Hot Stick
(purchased separately)
D
Installation/Removal Tool
E
Rope Grab with
F
Shock Absorber
G
Chain Tensioner
H
Endless Loop Sling
I
Carabiner
J
Carrying Bag
J
E
G
H
I
1 Fall Arrest System: A system that prevents the worker from colliding with an obstruction or lower level by arresting a fall.
Form: 5903024 Rev: C
USER INSTRUCTION MANUAL:
Figure 1 - Safl ok Pole Anchor System
2104800/802
2104801/803
1
1
1
1
0
0
1
1
1
1
0
1
0
1
1
2
1
1
B
A
F
D
I
Safl ok
Pole Anchor System
Model Numbers:
2104800, 2104801, 2104802, 2104803
. The user must read and follow the
1
Pole Anchor System. The Pole Anchor System
™
© Copyright 2010, DB Industries, Inc.
™
