Blaupunkt IRC-S2 Manual

Wireless PIR Camera (IRC-S2)

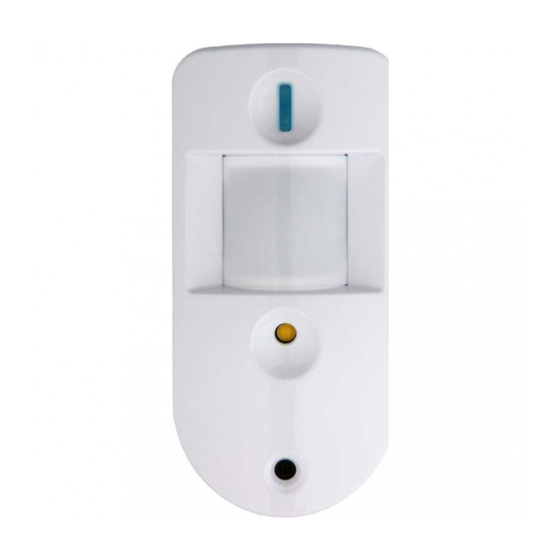

P a r t s D e s c r i p t i o n
P a r t s D e s c r i p t i o n
1. Blue LED /Learn Button
2. IR Sensor
3. LED Flash
The LED Flash delivers sufficient light for image capture in low
lighting condition.
4. PIR Camera Lens
5. Battery Insulator
Pull out the insulator to activate battery.
6. Bottom Screw (Tamper Switch)
The Tamper switch protects the PIR Camera from unauthorized
cover opening and is depressed by bottom screw. When the
screw is loosened, the tamper switch will be activate.
P P a a c c k k a a g g e e C C o o n n t t e e n n t t
1 x PIR Camera
4 x wall plugs and screws
2 x 1.5V AA alkaline batteries (Pre-inserted)
L e a
L e a
The PIR Camera can only be learnt into Control Panel within 3
minutes after powering on. If it has been powered on for more
than 3 minutes, remove and reinsert batteries to repower on the
PIR Camera.
1. Put the Control Panel into learning model.
2. Press and hold the learn button on PIR Camera for 10
seconds until both LED Flash and Blue LED flash once, then
release the button to transmit a learn code.
3. Wait for a short time for PIR Camera to connect to panel. If the
camera is successfully learnt in, the Blue LED will flash twice
to indicate. The panel will also display PIR Camera info. Refer
to panel manual to complete learning.
4. If the PIR Camera and Control do not respond after a short
time (about 20~30 seconds), restart from step 2 to press and
hold the button again.
After learning has been completed, Do NOT press and hold the
learn button for 10 seconds again within 3 minutes after power on,
otherwise the PIR Camera will disconnect from panel and must
be relearnt again.
I n s t a
I n s t a
M M o o u u n n t t i i n n g g
 The PIR camera designed to be mounted on either a flat surface
or in a corner with fixing screws and plugs provided.
 The base has knockouts where the plastic is thinner and can be
broken through for mounting. 2 in the center for surface
mounting and 4 on the sides for corner mounting.
r n i n g
r n i n g
l l a t i o n
l l a t i o n
Surface Fixing
Knockouts x 2
1. Remove the cover.
2. For surface mounting, break through the 2 knockouts at the
center of base.
For corner mounting, break through the 4 knocks on the
corner of PIR camera
3. Use the holes as template to drill holes in the wall.
4. Insert the wall plugs if fixing it into plaster or brick.
5. Screw the base into the wall plugs.
6. Screw the cover back onto its base.
O p e r a t
O p e r a t
M M o o t t i i o o n n D D e e t t e e c c t t i i o o n n
The PIR Camera is designed to detect movement in protected
area. Upon movement detection, the PIR reports to the Control
Panel for an alarm activation and captures 3 images at the same
time. The images are transferred to the Control Panel to send to
programmed destinations for user to view.
W a r m U p P e r i o d
W a r m U p P e r i o d
When the Control Panel enters arm mode, or PIR Camera is put
into Test Mode, the PIR Camera will warm up for 30 seconds. Do
not trigger the PIR Camera during the 30 seconds warm up
period. If the PIR Camera is under low battery or tamper opened
condition, the Blue LED will light up during the warm up period.
B B a a t t t t e e r r y y
The PIR Camera uses two 1.5V AA Alkaline batteries as its power
source. Remove the battery insulator to activate battery. It also
features low battery detection function to notify the Control Panel
when battery voltage is low.
When the PIR camera is low on battery, follow the procedure
below to change the batteries.
1. Open the PIR camera back cover.
2. Remove the old batteries.
3. Press the tamper switch several times to fully discharge.
4. Insert the new batteries and replace the PIR Camera back
cover.
Corner Fixing
Knockouts x 4
