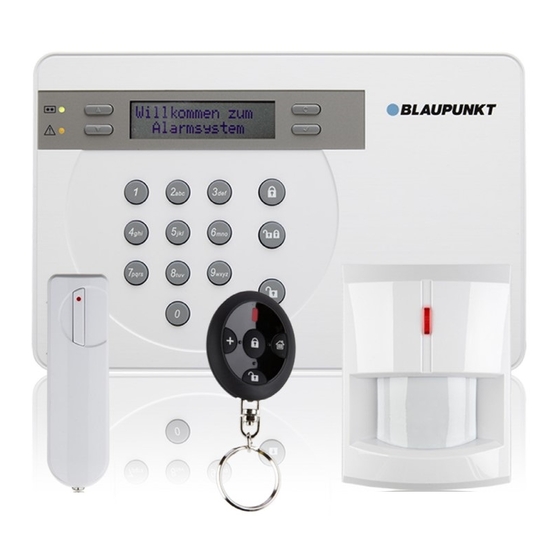

Blaupunkt SA 2700 Quick Start Manual

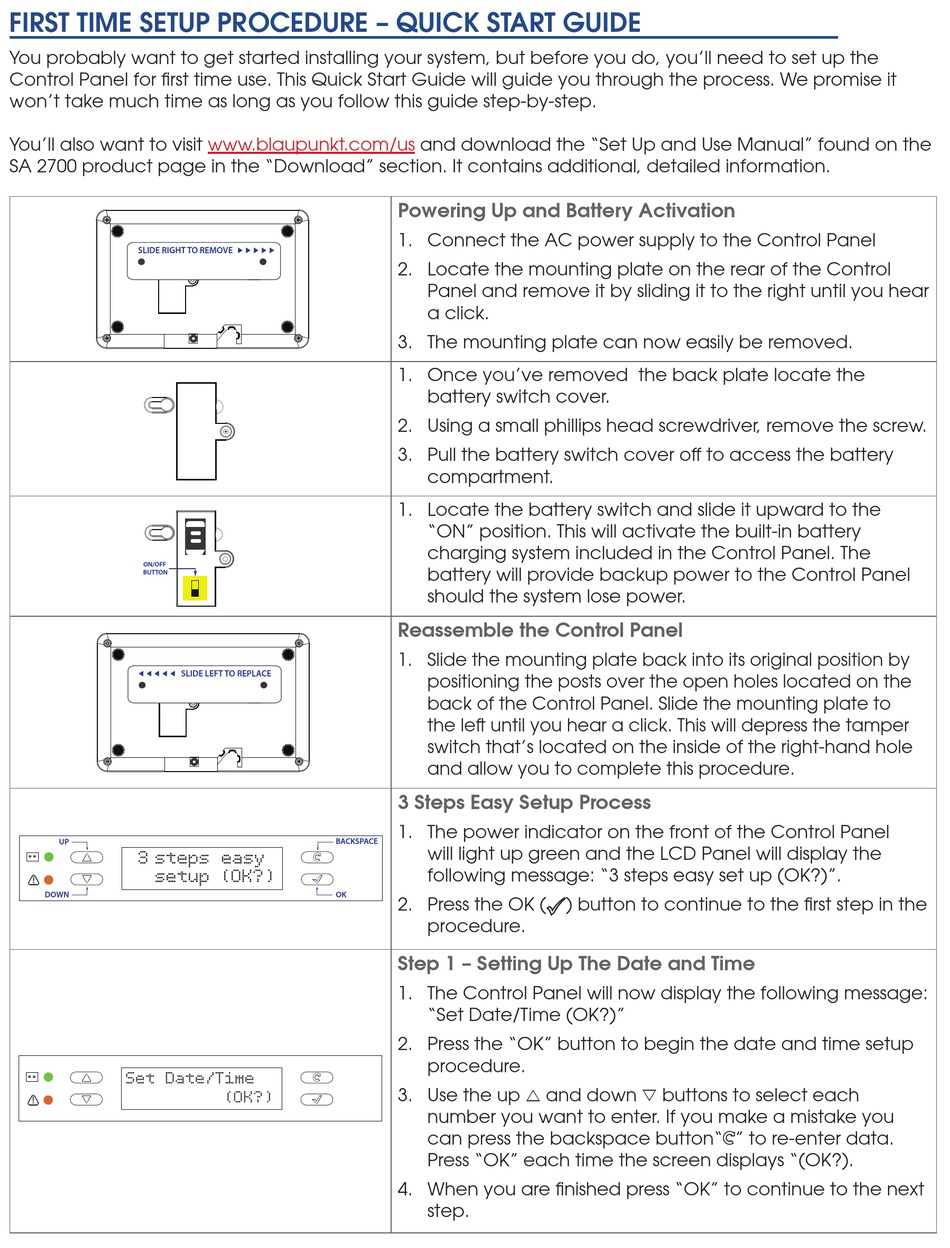

FIRST TIME SETUP PROCEDURE – QUICK START GUIDE
You probably want to get started installing your system, but before you do, you'll need to set up the
Control Panel for first time use. This Quick Start Guide will guide you through the process. We promise it
won't take much time as long as you follow this guide step-by-step.
You'll also want to visit
SA 2700 product page in the "Download" section. It contains additional, detailed information.
SLIDE RIGHT TO REMOVE 
ON/OFF
BUTTON
SLIDE LEFT TO REPLACE
    
UP
3
steps easy
**
setup
DOWN
Set Date/Time
**
www.blaupunkt.com/us
+
+
+
BACKSPACE
(OK?)
OK
(OK?)
and download the "Set Up and Use Manual" found on the
Powering Up and Battery Activation
1. Connect the AC power supply to the Control Panel
2. Locate the mounting plate on the rear of the Control
Panel and remove it by sliding it to the right until you hear
a click.
3. The mounting plate can now easily be removed.
1. Once you've removed the back plate locate the
battery switch cover.
2. Using a small phillips head screwdriver, remove the screw.
3. Pull the battery switch cover off to access the battery
compartment.
1. Locate the battery switch and slide it upward to the
"ON" position. This will activate the built-in battery
charging system included in the Control Panel. The
battery will provide backup power to the Control Panel
should the system lose power.
Reassemble the Control Panel
1. Slide the mounting plate back into its original position by
positioning the posts over the open holes located on the
back of the Control Panel. Slide the mounting plate to
the left until you hear a click. This will depress the tamper
switch that's located on the inside of the right-hand hole
and allow you to complete this procedure.
3 Steps Easy Setup Process
1. The power indicator on the front of the Control Panel
will light up green and the LCD Panel will display the
following message: "3 steps easy set up (OK?)".
2. Press the OK ( ) button to continue to the first step in the
procedure.
Step 1 – Setting Up The Date and Time
1. The Control Panel will now display the following message:
"Set Date/Time (OK?)"
2. Press the "OK" button to begin the date and time setup
procedure.
3. Use the up and down
r
number you want to enter. If you make a mistake you
can press the backspace button" " to re-enter data.
Press "OK" each time the screen displays "(OK?).
4. When you are finished press "OK" to continue to the next
step.
buttons to select each
s
